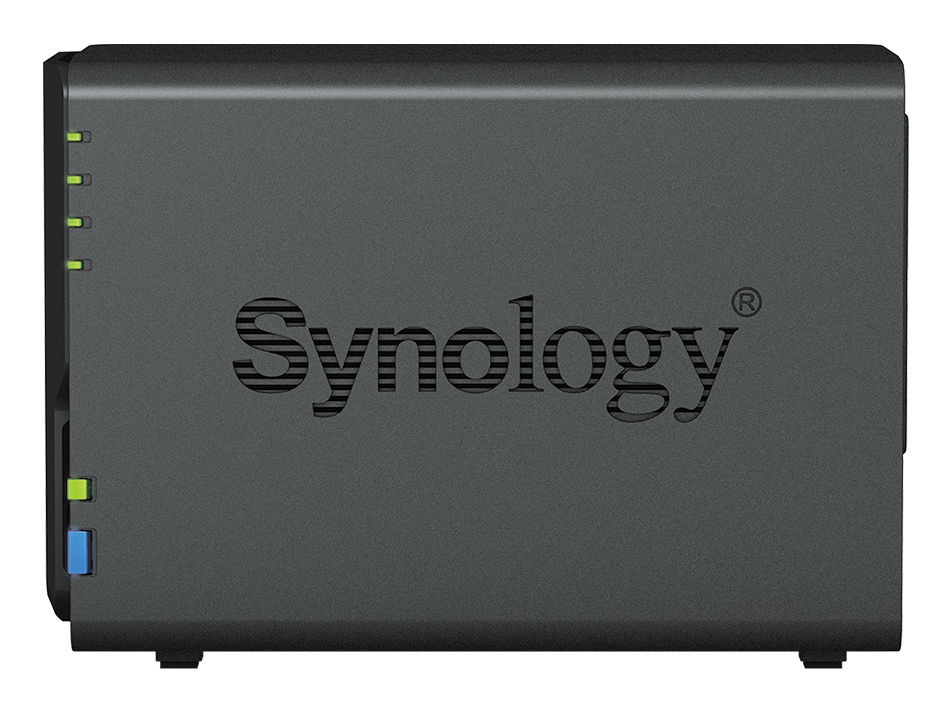

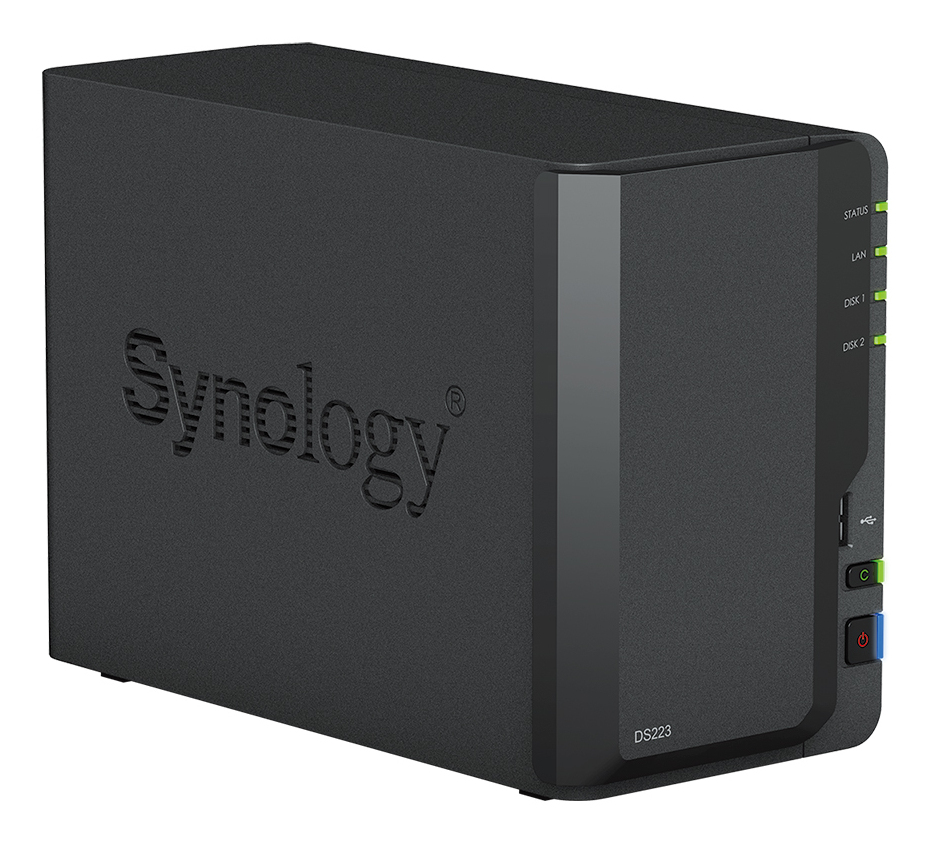

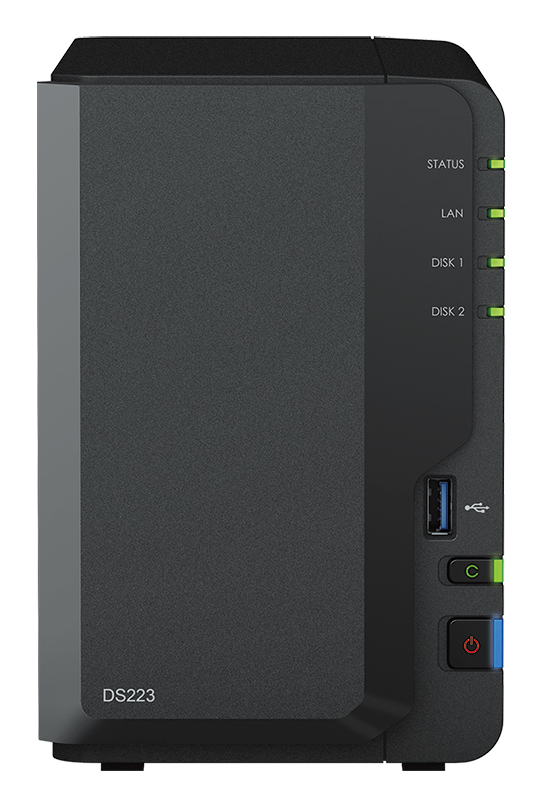

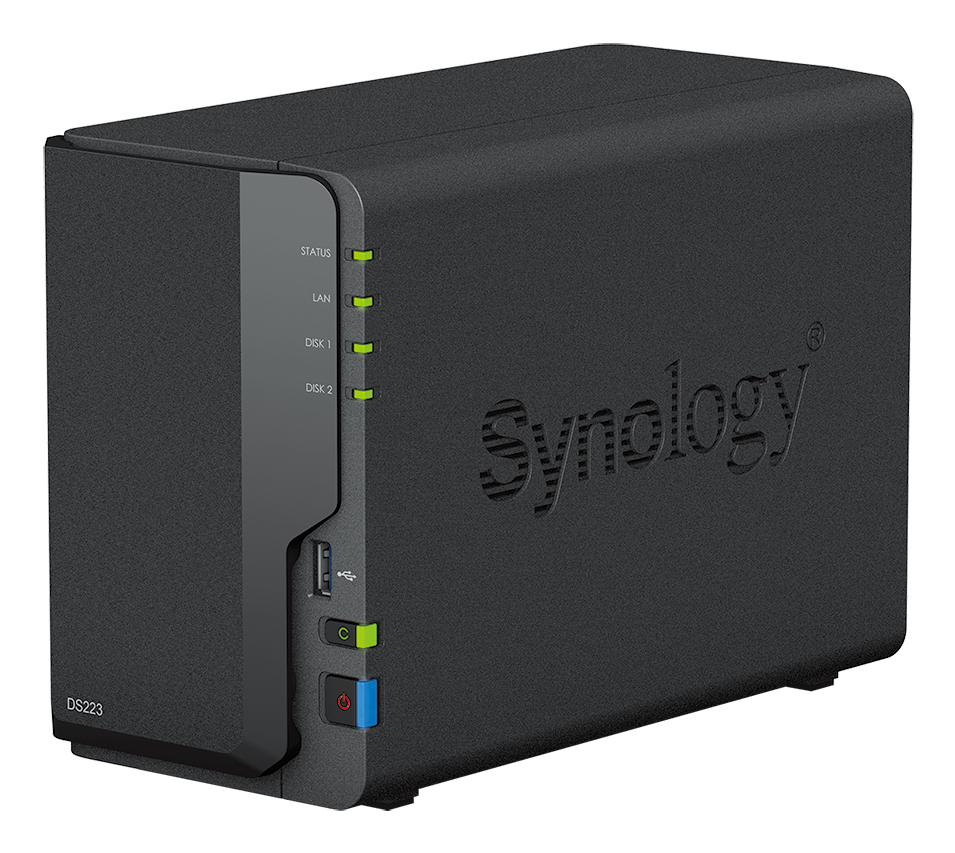

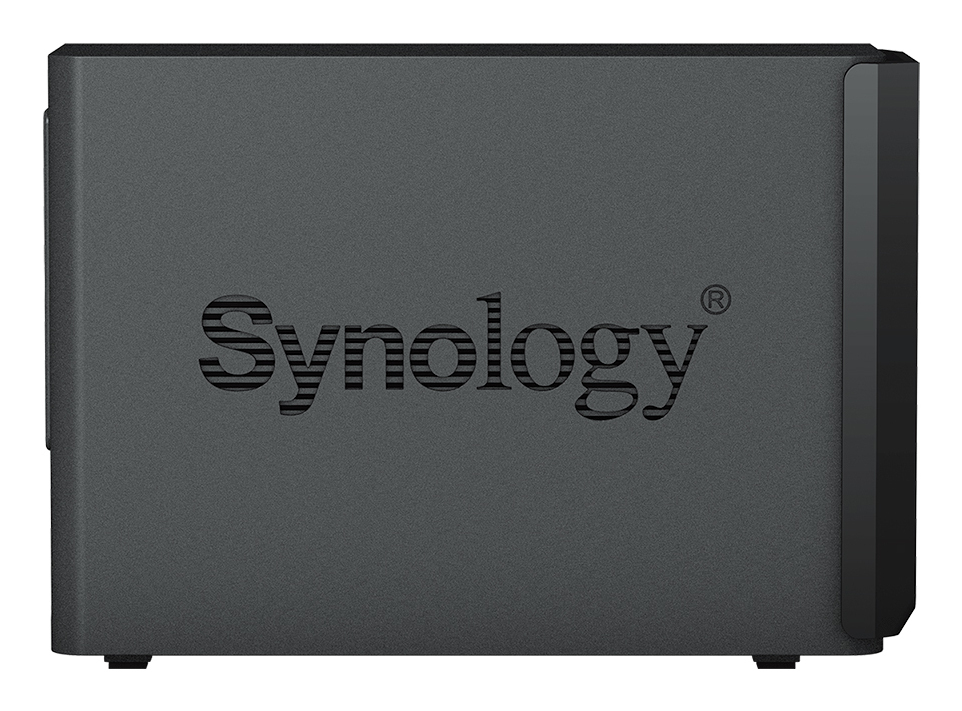

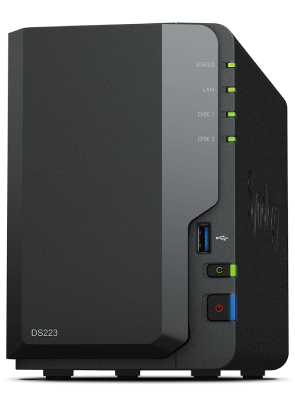

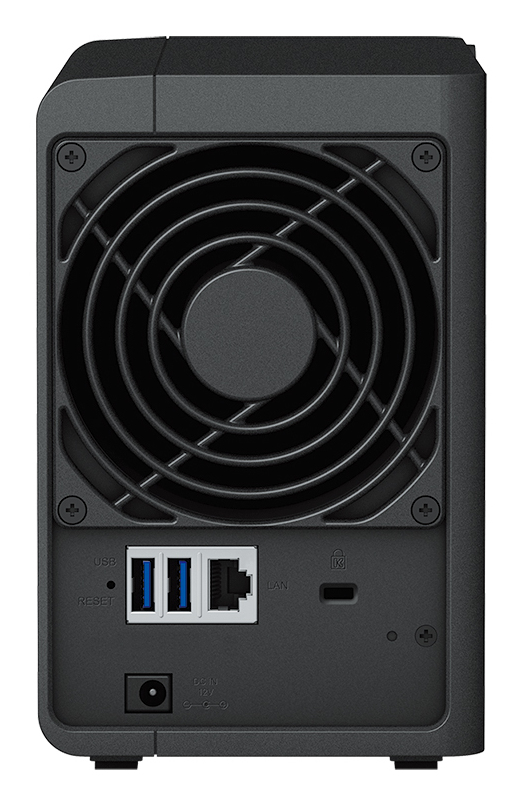

Disk Station Ds223 2bay Nas Server Barebone

Base Price:€276,61
Recupel:+ €0,12
Total:€276,73

Prices exclude VAT

Add
Part Number: DS223
Inetum ID: DL200
Stock
Warranty: 12 months

Product Details

Storage

Storage drive interface

Serial ATA III

Storage drive size

2.5/3.5"

RAID support

Y

RAID levels

0, 1, JBOD

Supported file systems

BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4

Storage drives installed

N

Number of storage drives supported

2

Installed storage drive type

N

Supported storage drive types

HDD & SSD

Processor

Processor manufacturer

Realtek

Processor family

Realtek

Processor model

RTD1619B

Processor frequency

1.7 GHz

Processor cores

4

Memory

Internal memory type

DDR4

Internal memory

2 GB

Network

Ethernet LAN

Y

iSCSI support

Y

Wake-on-LAN ready

Y

Supported network protocols

SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Ports & interfaces

USB port

Y

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Ethernet LAN (RJ-45) ports

1

Design

Chassis type

Desktop

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

9.2 cm

LED indicators

Y

Cable lock slot

Y

Cable lock slot type

Kensington

Performance

Type

NAS

Device class

Home & Home Office

Backup function

Y

Number of users

1024 user(s)

Noise level

14.6 dB

Access Control List (ACL)

Y

On/off switch

Y

Browser supported

Google Chrome, Firefox, Microsoft Edge, Safari

USB copy function

Y

Power

Power supply unit (PSU) capacity

60 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Weight & dimensions

Width

108 mm

Depth

232.7 mm

Height

165 mm

Weight

1.28 kg

Packaging content

External power adapter

Y

Cables included

AC, LAN (RJ-45)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Storage temperature (T-T)

-20 - 60 °C
