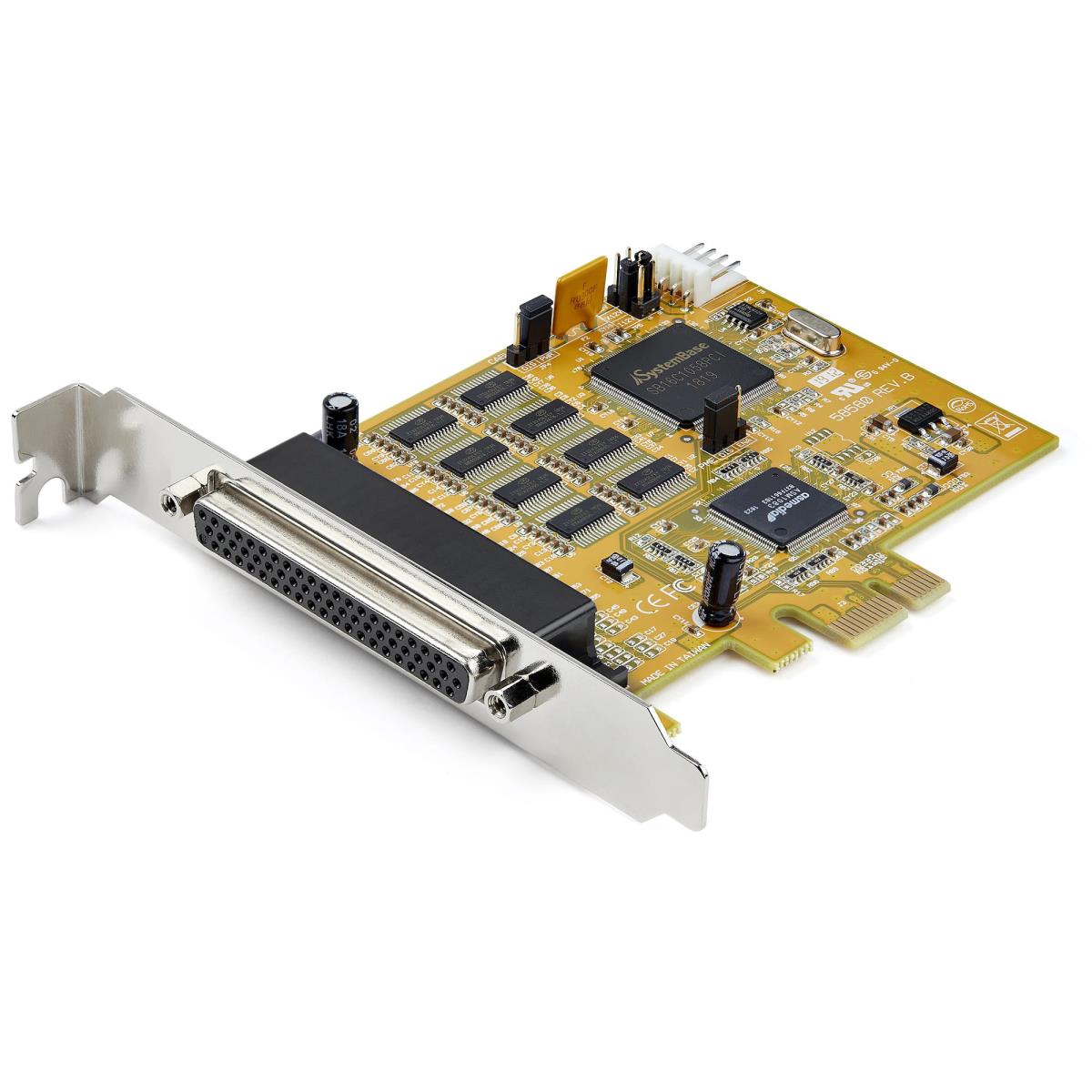

PCI Express Rs232 Serial Adapter Card - Pci-e To Serial

Base Price:€216,95
Total:€216,95

Prices exclude VAT

Add
Part Number: PEX8S1050
Inetum ID: DK550
Stock
Warranty: 60 months

Product Details

Technical details

Compliance certificates

RoHS

Sustainability certificates

RoHS

Features

Harmonized System (HS) code

84733020

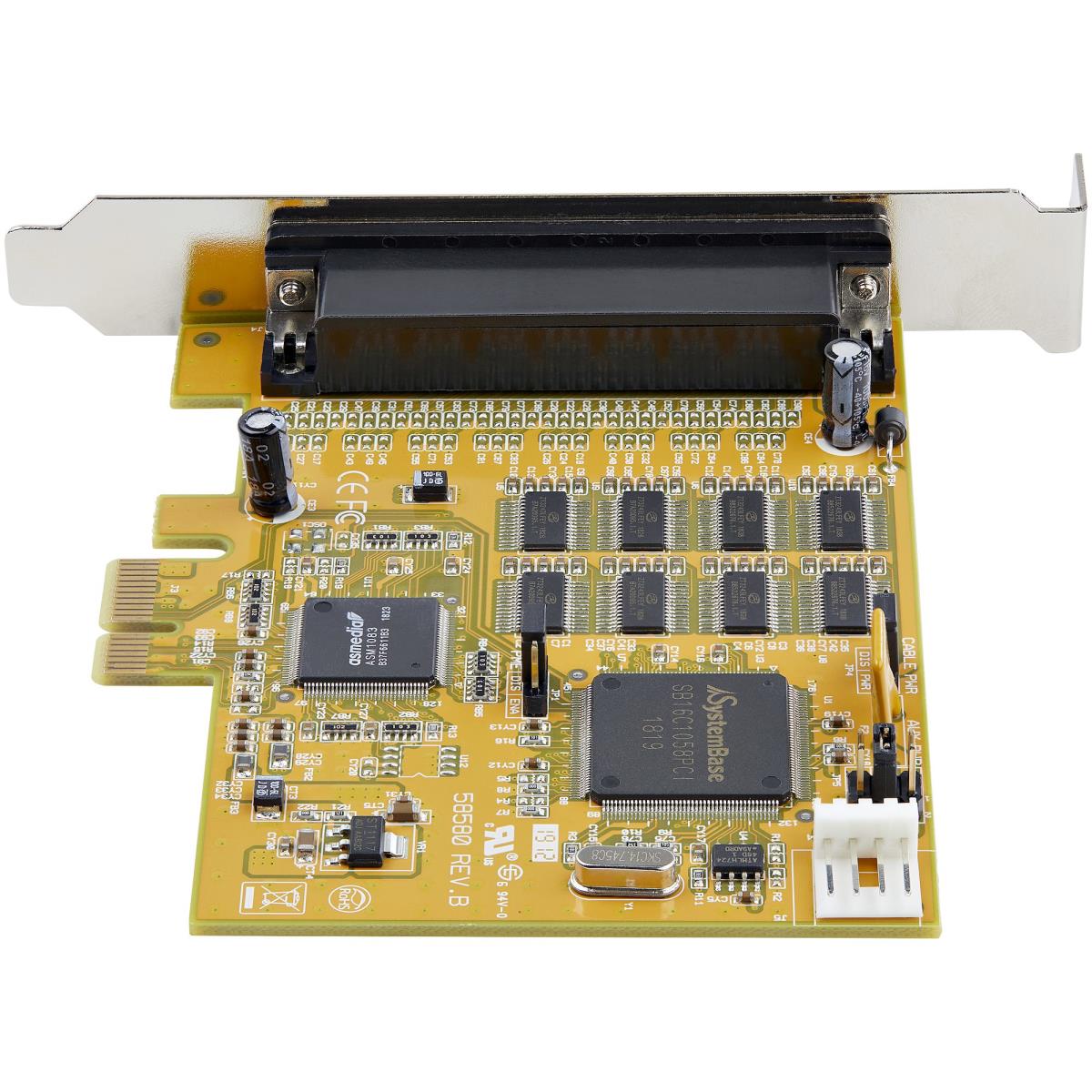

Chipset

ASMedia - ASM1083, System Base - SB16C1058PCI

Baud rate

921.6 Kbit/s

FIFO (First In, First Out)

256 B

Data bits

5,6,7,8

Stop bits

1,1.5,2

Parity bit

Even, N, Odd

Flow Control type

RTS/CTS,XON/XOFF

Ports & interfaces

Host interface

PCIe

Output interface

Serial

Serial ports quantity

8

Serial interface type

RS-232

Design

Internal

Y

Product colour

Yellow

Maximum cable length

0.5 m

Mean time between failures (MTBF)

160013 h

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

5 - 95%

System requirements

Windows operating systems supported

Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Linux operating systems supported

Y

Server operating systems supported

Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019

Weight & dimensions

Width

16 mm

Depth

105 mm

Height

120 mm

Weight

74 g

Packaging data

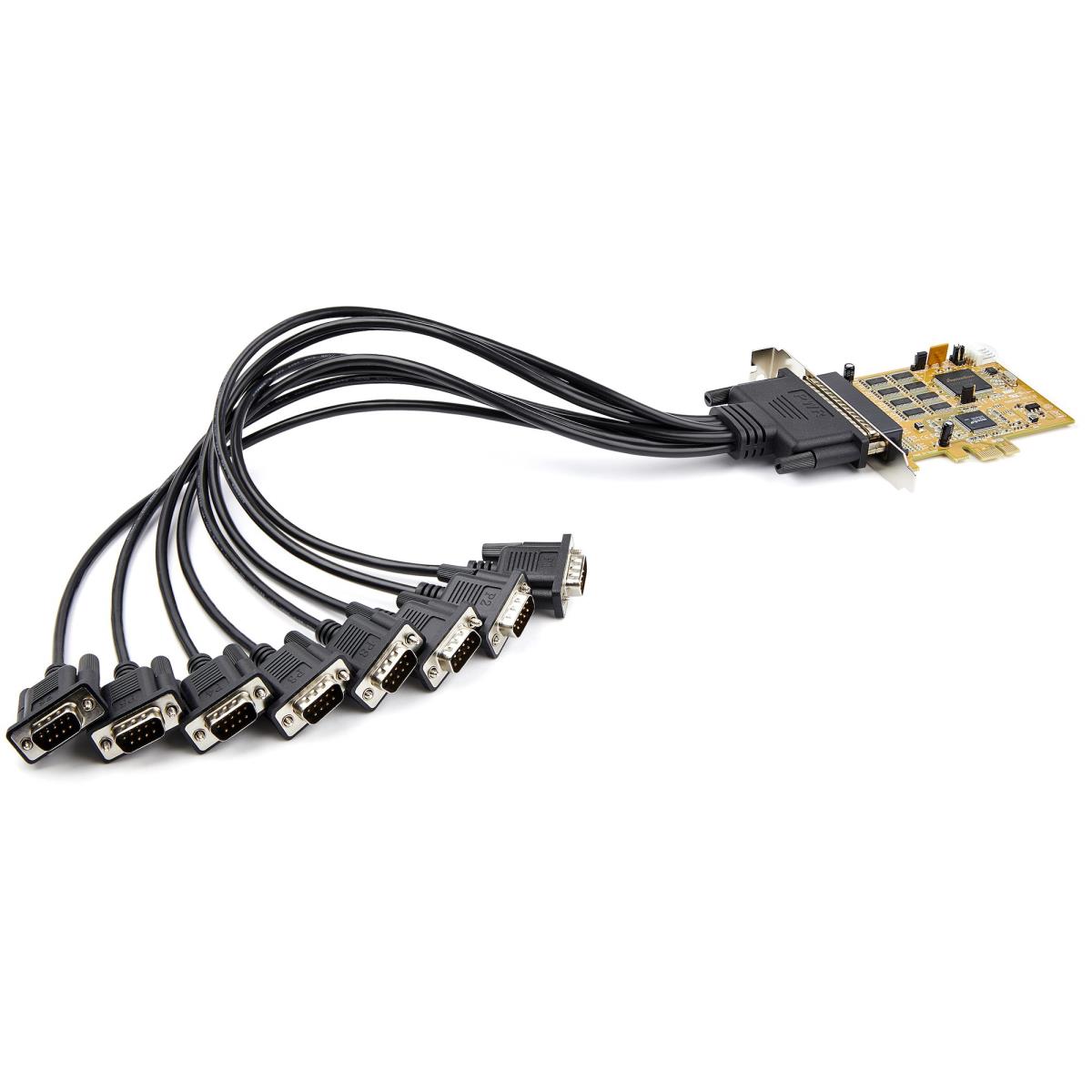

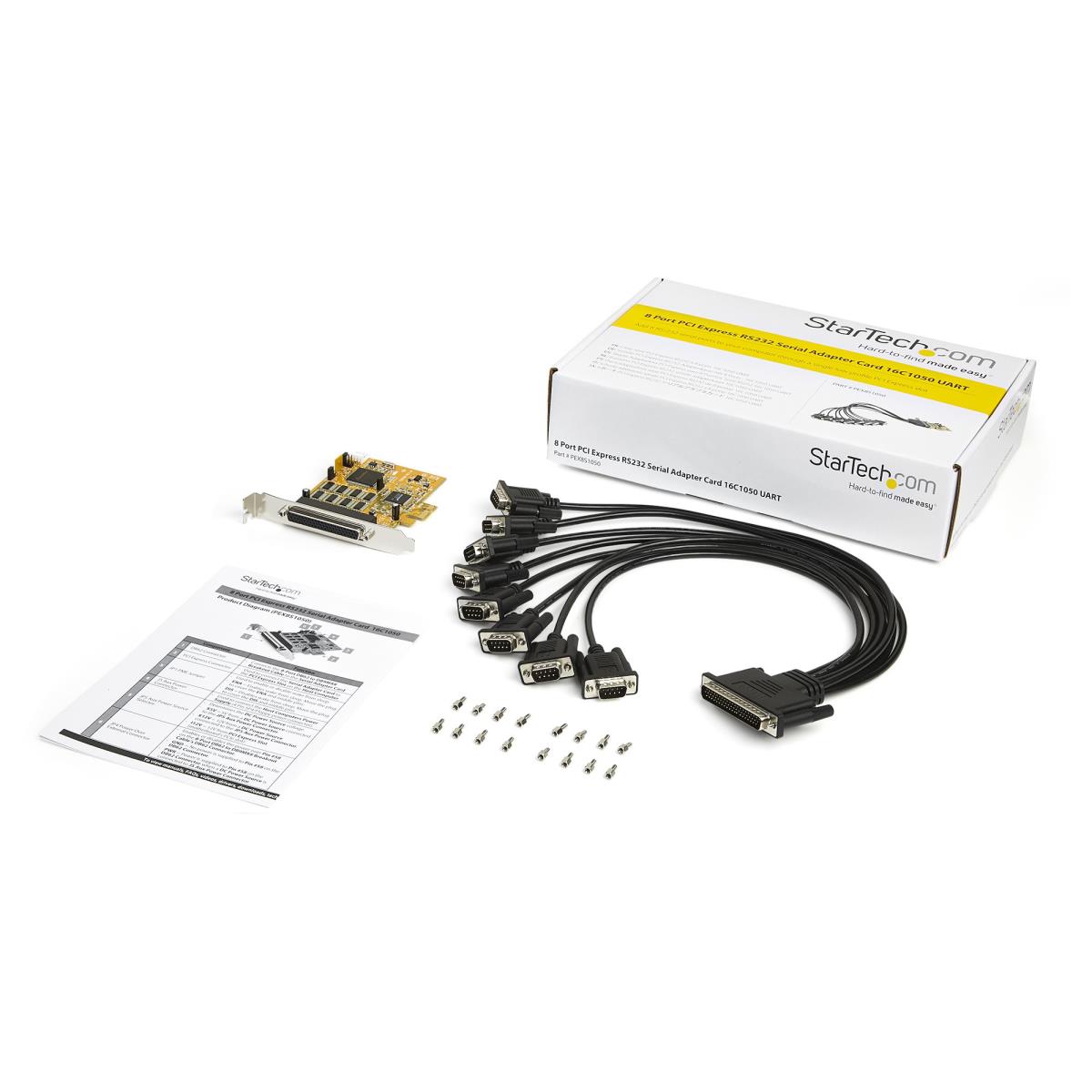

Cables included

Serial

Quick installation guide

Y

Package width

190 mm

Package depth

290 mm

Package height

65 mm

Package weight

672 g

Logistics data

Products per master (outer) case

14 pc(s)

Master (outer) case width

400 mm

Master (outer) case length

510 mm

Master (outer) case height

315 mm

Other features

Compliance industry standards

16C1050 UART
