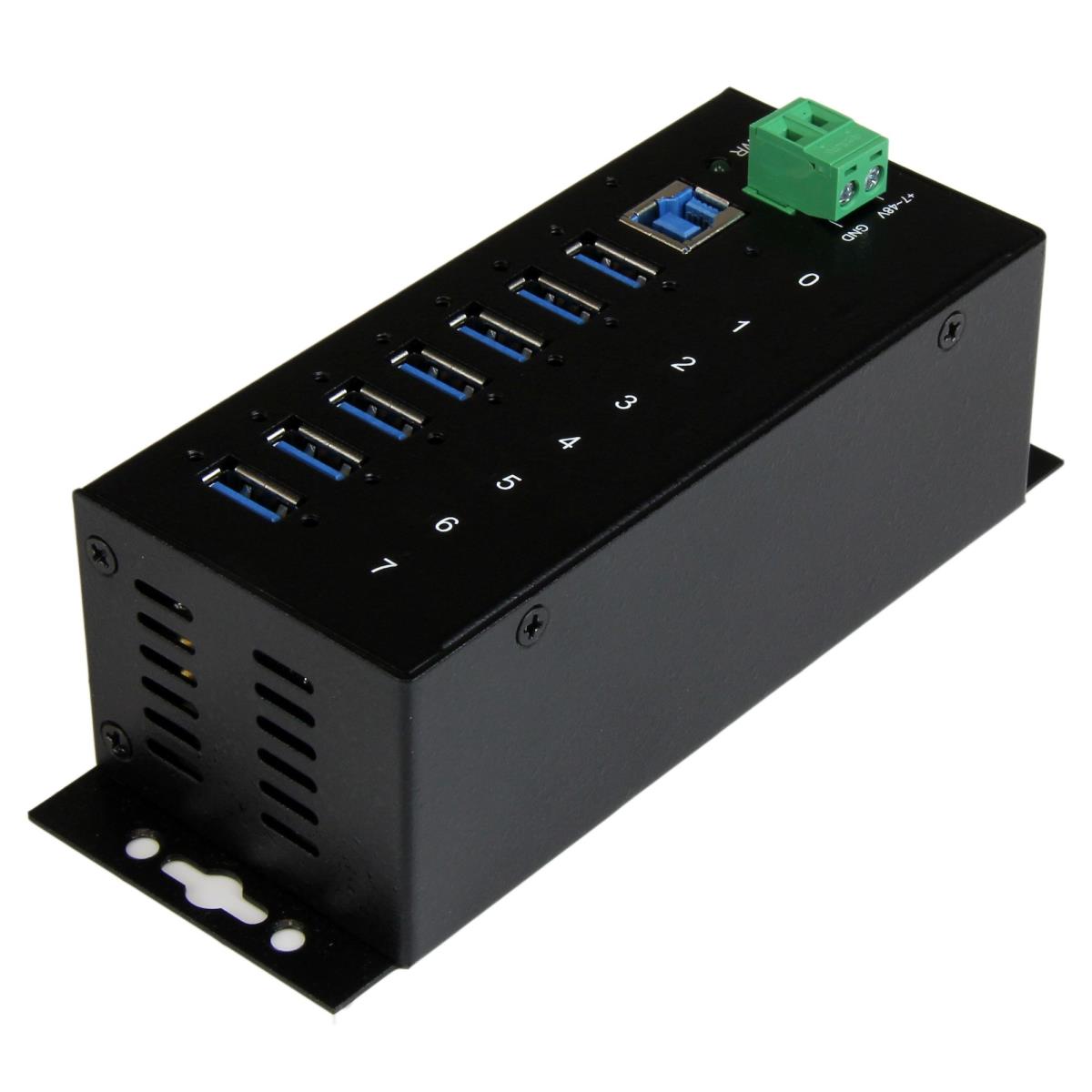

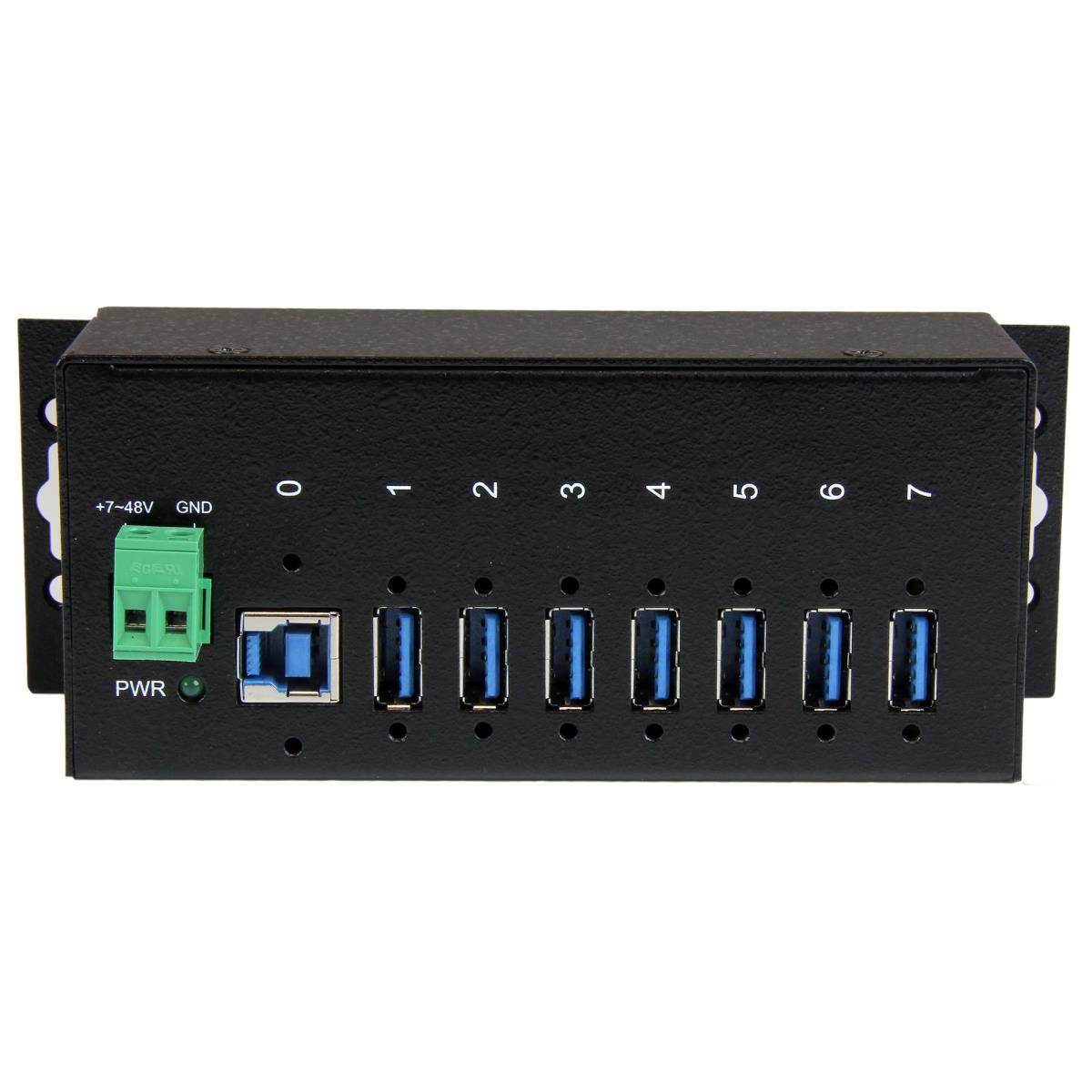

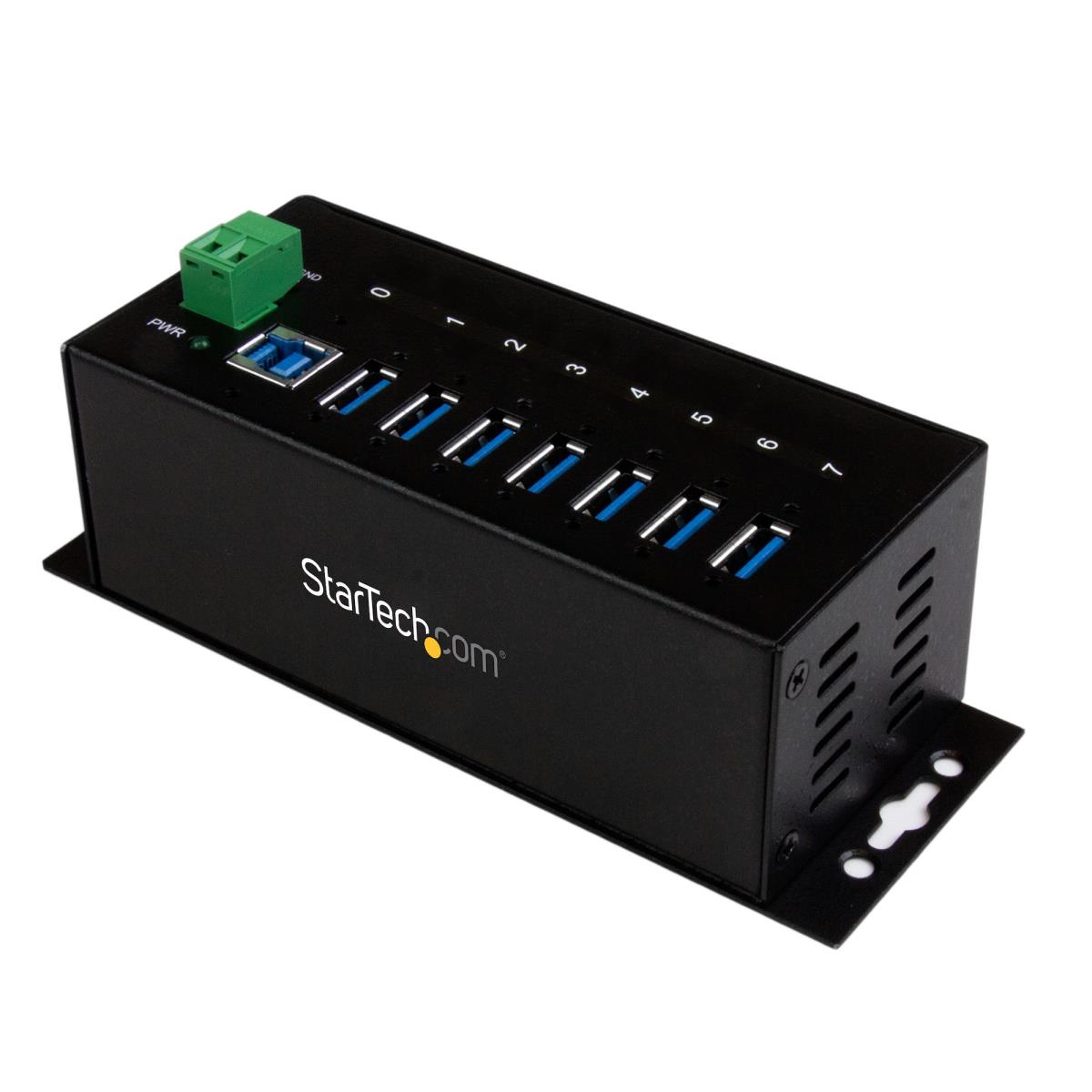

Industrial USB 3.0 Hub 7-port - Esd And Surge Protection

Base Price:€131,55
Recupel:+ €0,06
Total:€131,61

Prices exclude VAT

Add
Part Number: ST7300USBME
Inetum ID: BE887
Stock
Warranty: 24 months

Product DetailsOptions

Ports & interfaces

Card reader integrated

No

DC-in jack

No

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

Hub interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A

Ports quantity

7

Terminal block port

Y

Features

Data transfer rate

5000 Mbit/s

Product colour

Black

Housing material

Steel

Surge protection

Y

LED indicators

Power

Certification

CE, FCC, RoHS, TAA, REACH

Power

Power source type

DC

Input voltage

7 - 48 V

Performance

Harmonized System (HS) code

84719000

Mean time between failures (MTBF)

126106 h

Weight & dimensions

Width

54 mm

Depth

145 mm

Height

45 mm

Weight

325 g

Packaging data

Package width

295 mm

Package depth

190 mm

Package height

69 mm

Package weight

600 g

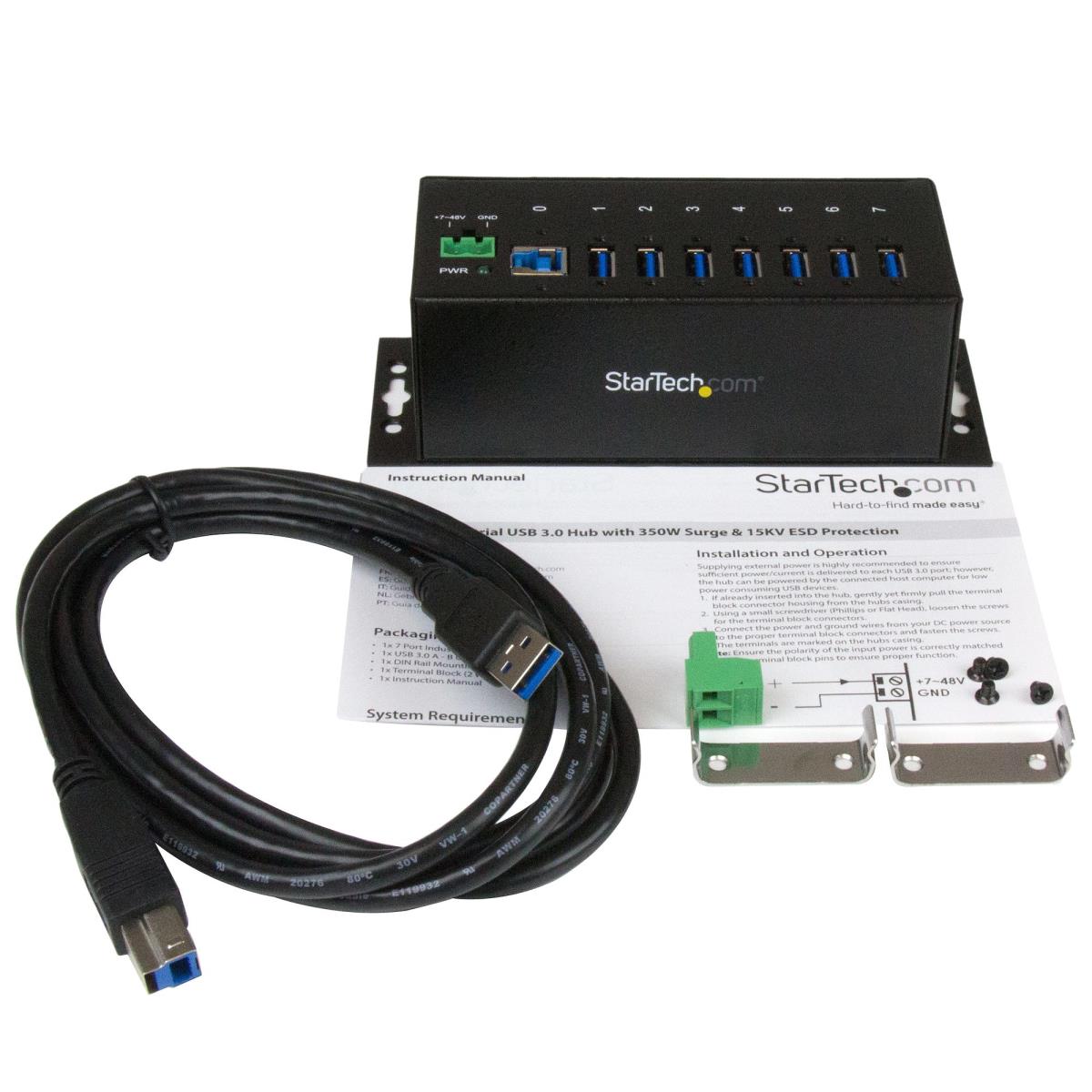

Packaging content

Cables included

USB

Manual

Y

Terminal block included

Y

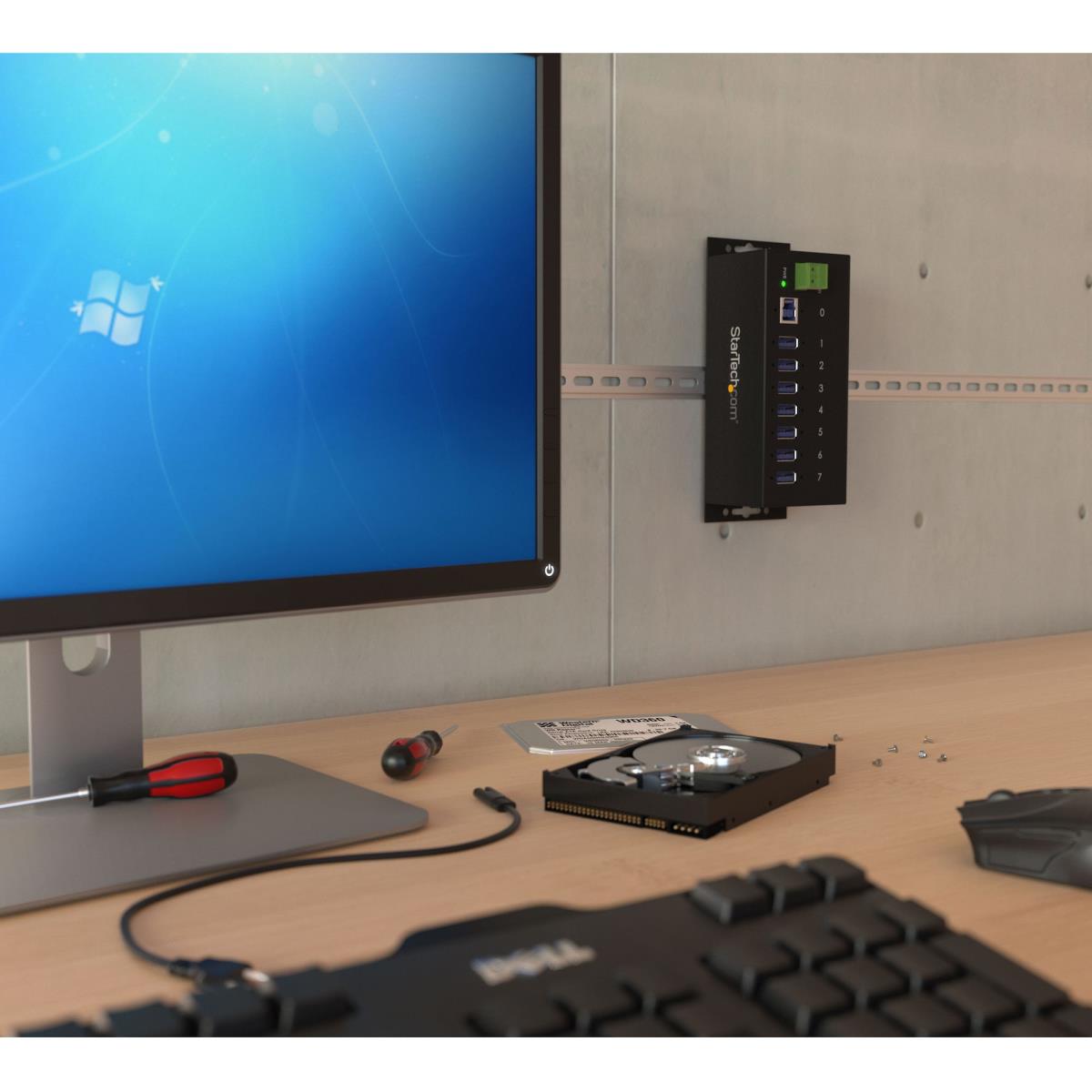

DIN rail kit included

Y

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Logistics data

Master (outer) case width

397 mm

Master (outer) case length

511 mm

Master (outer) case height

326 mm

Products per master (outer) case

14 pc(s)

Other features

Chipset

Genesys Logic - GL3520
