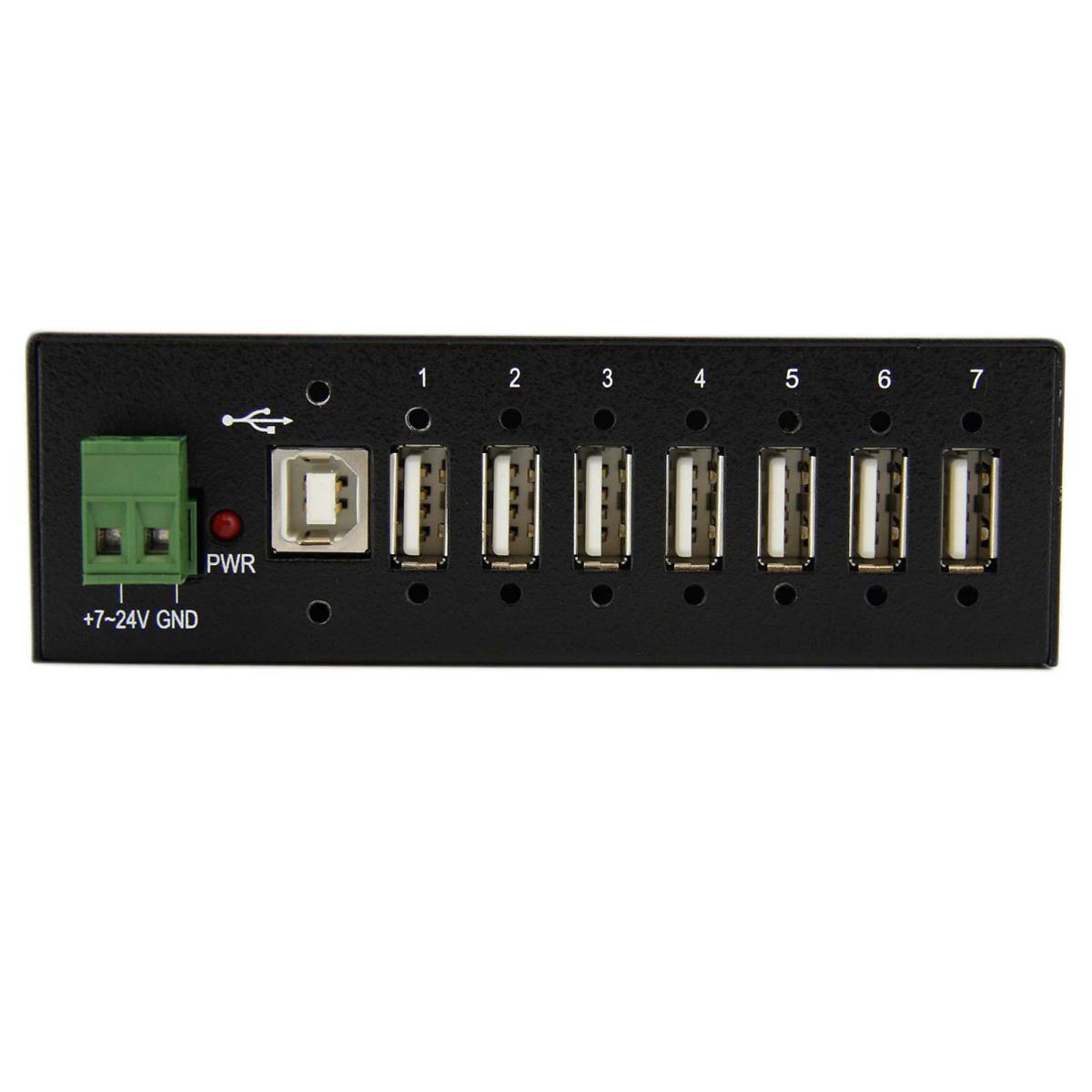

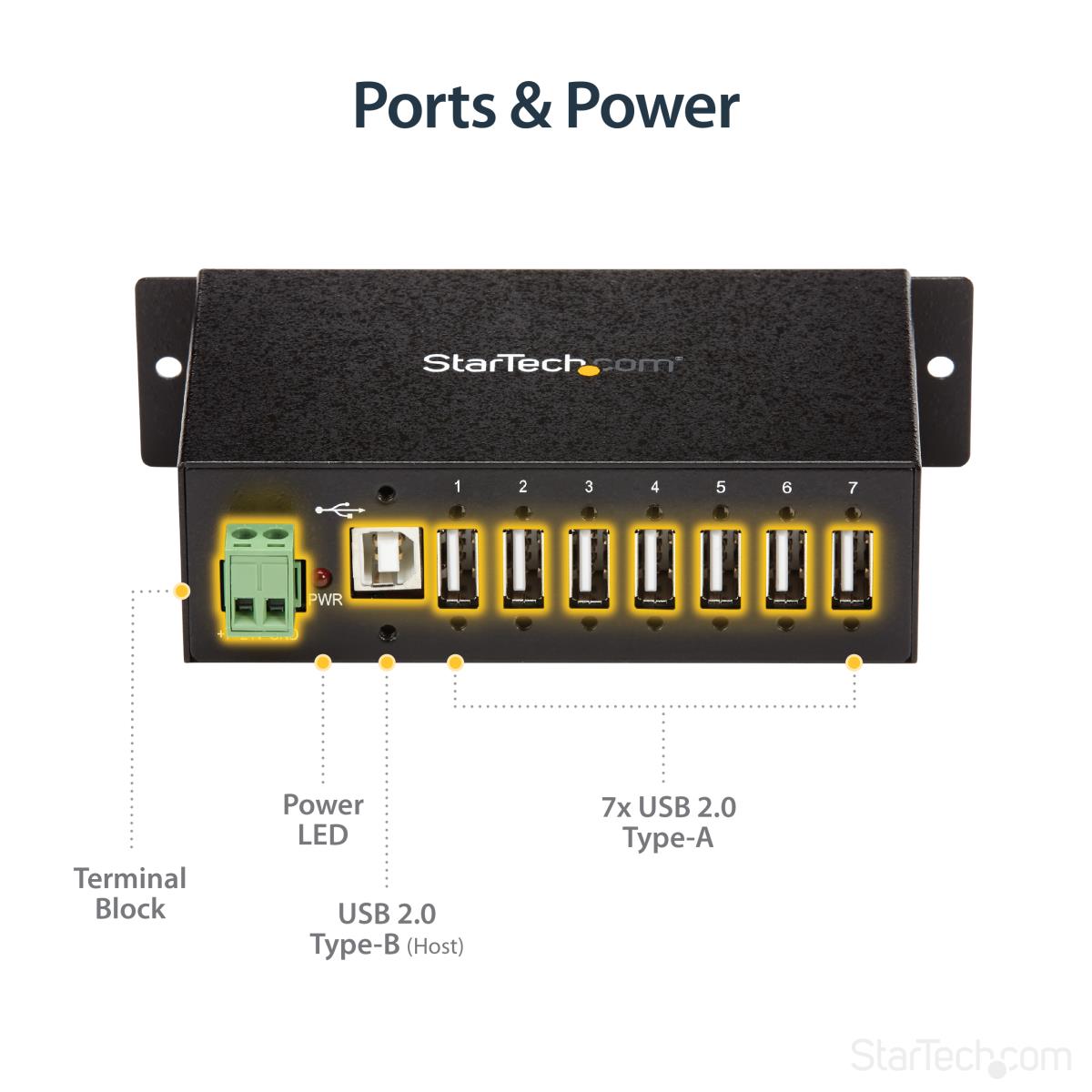

Ports & interfaces

Card reader integrated

No

DC-in jack

No

Host interface

USB 2.0 Type-B

Hub interfaces

USB 2.0

USB 2.0 ports quantity

7

Ports quantity

7

Terminal block port

Y

Features

Data transfer rate

480 Mbit/s

Product colour

Black

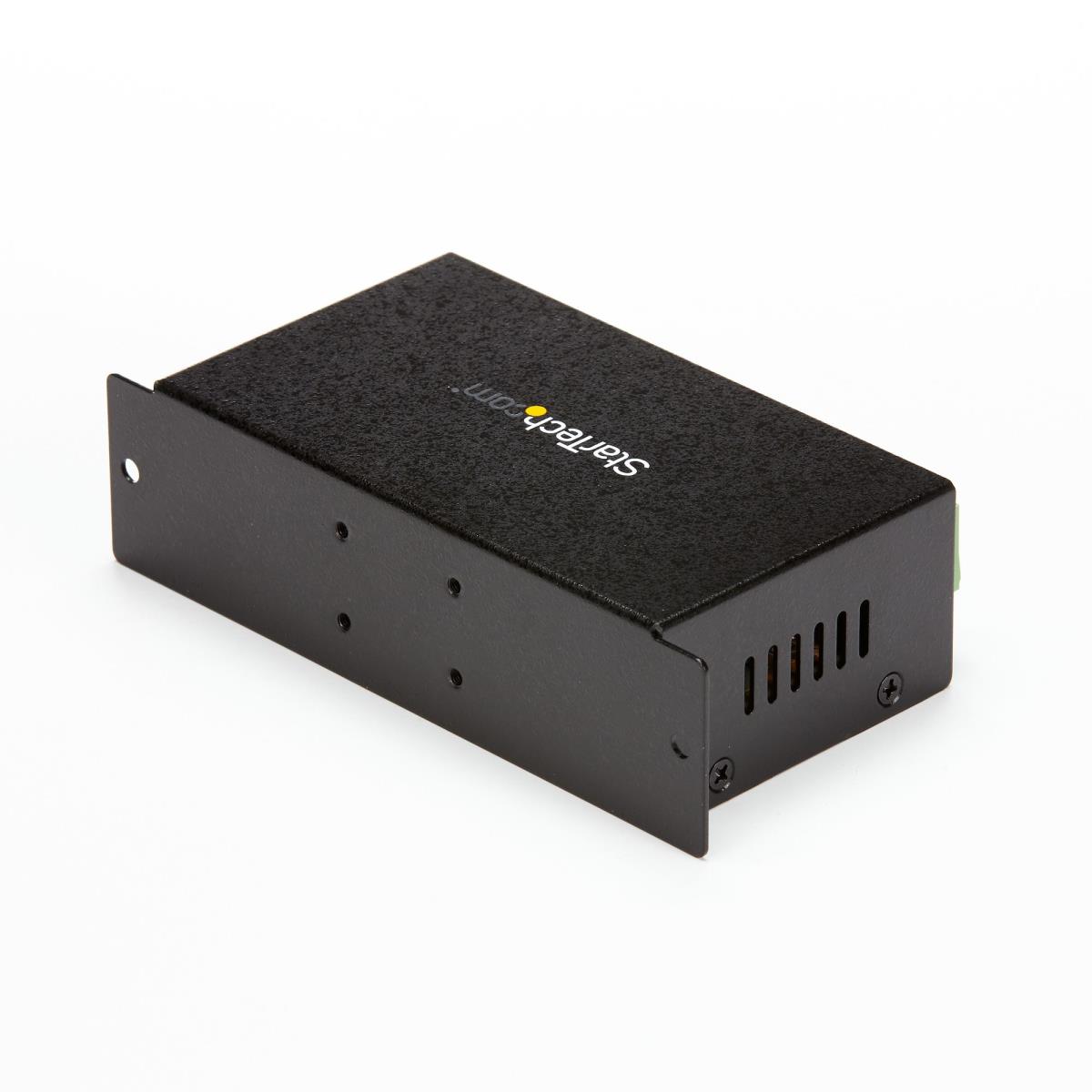

Housing material

Steel

Surge protection

Y

LED indicators

Y

Hot-swap

Y

Plug and Play

Y

Certification

CE, FCC, RoHS, REACH, TAA

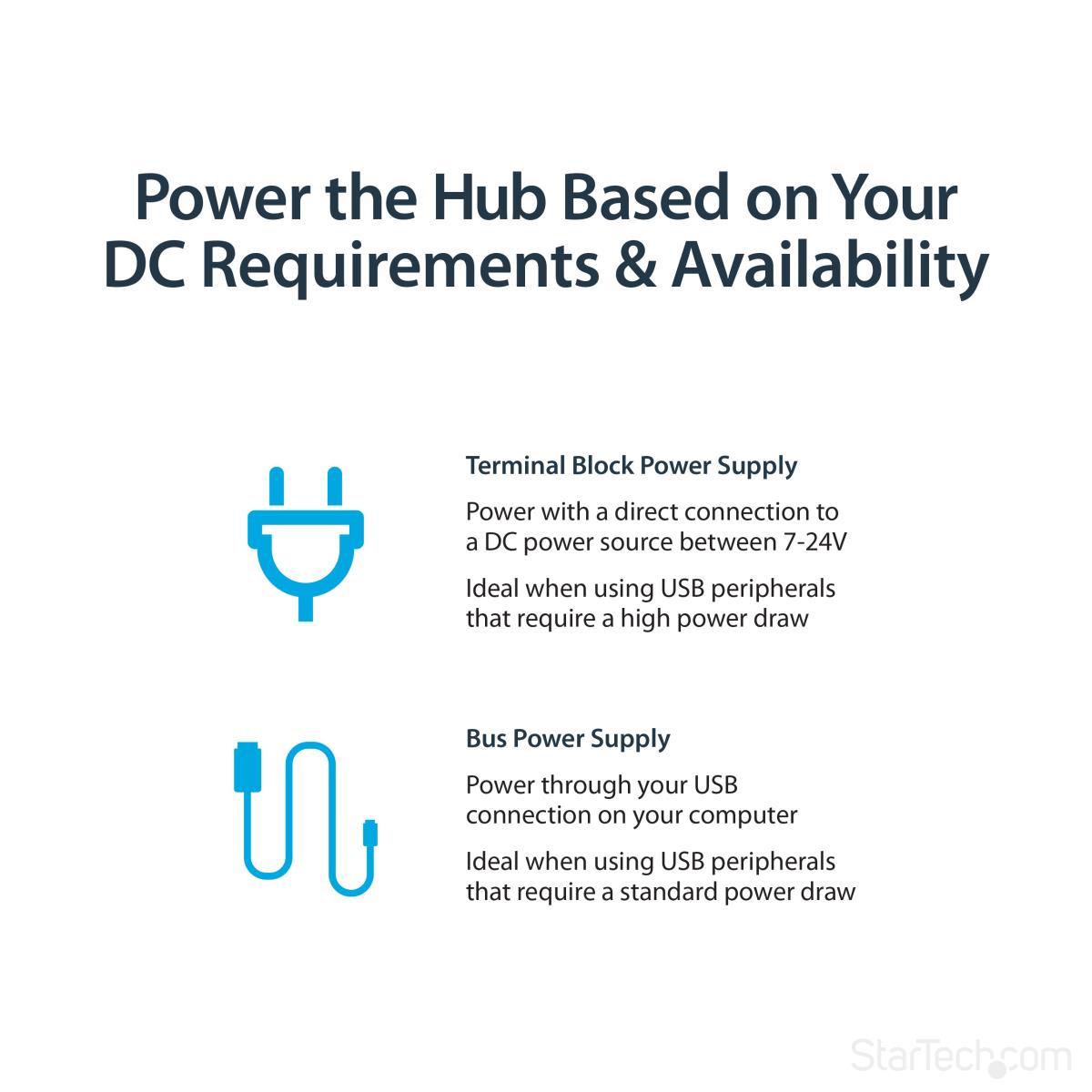

Power

Input voltage

7 - 24 V

Performance

Harmonized System (HS) code

84719000

Mean time between failures (MTBF)

170227 h

Weight & dimensions

Width

61.5 mm

Depth

133 mm

Height

36.3 mm

Weight

283 g

Packaging data

Package width

216 mm

Package depth

151 mm

Package height

51 mm

Package weight

500 g

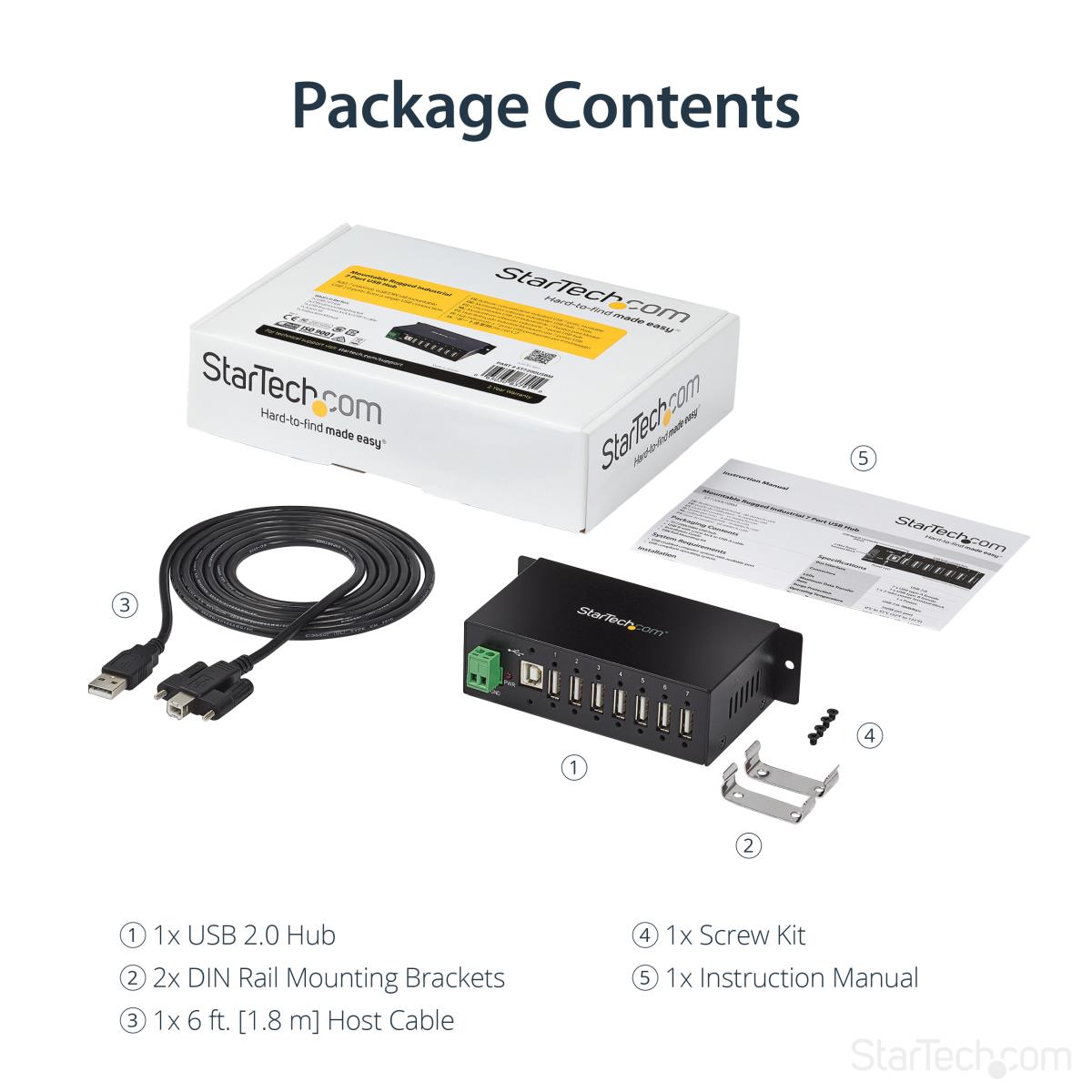

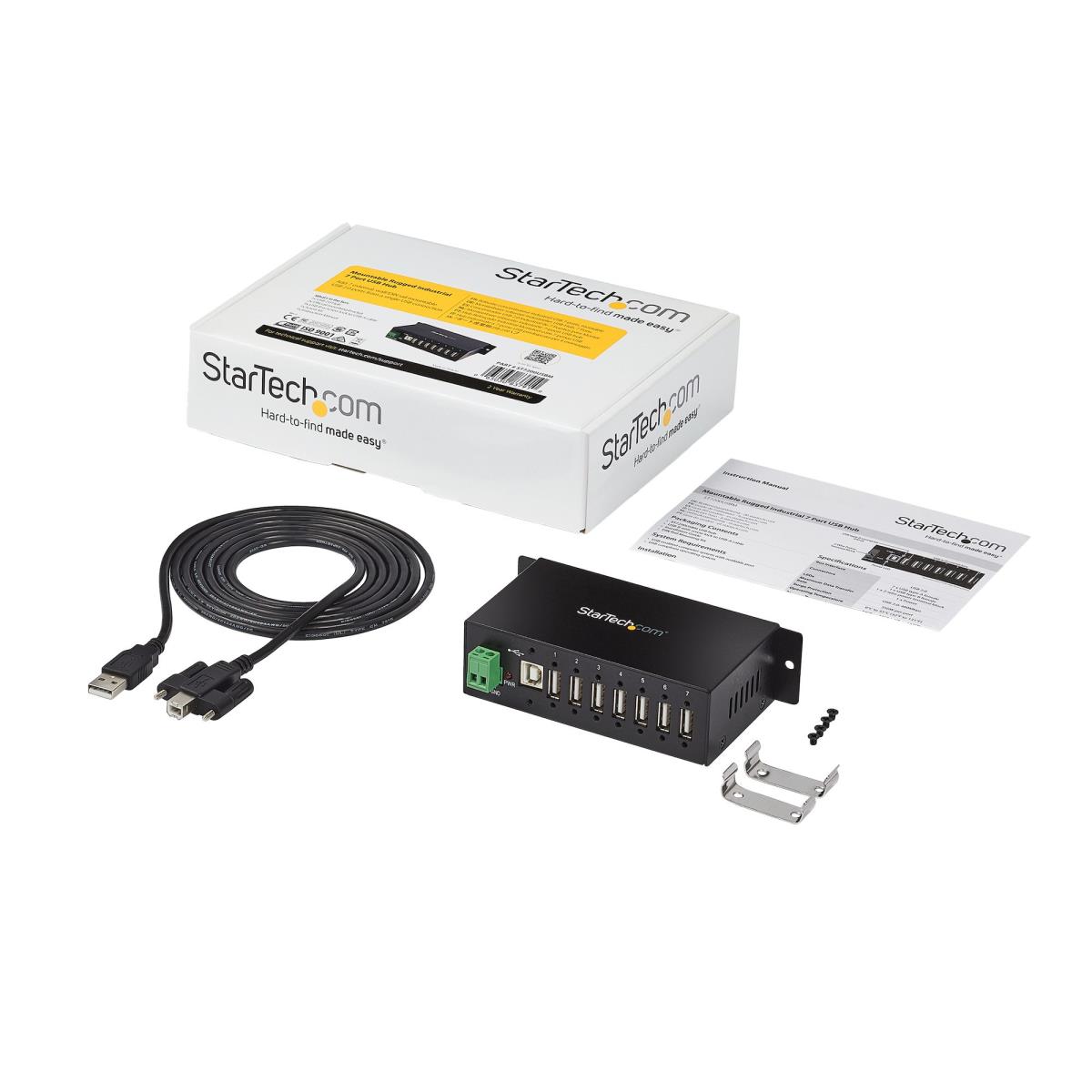

Packaging content

Cables included

USB

Manual

Y

DIN rail kit included

Y

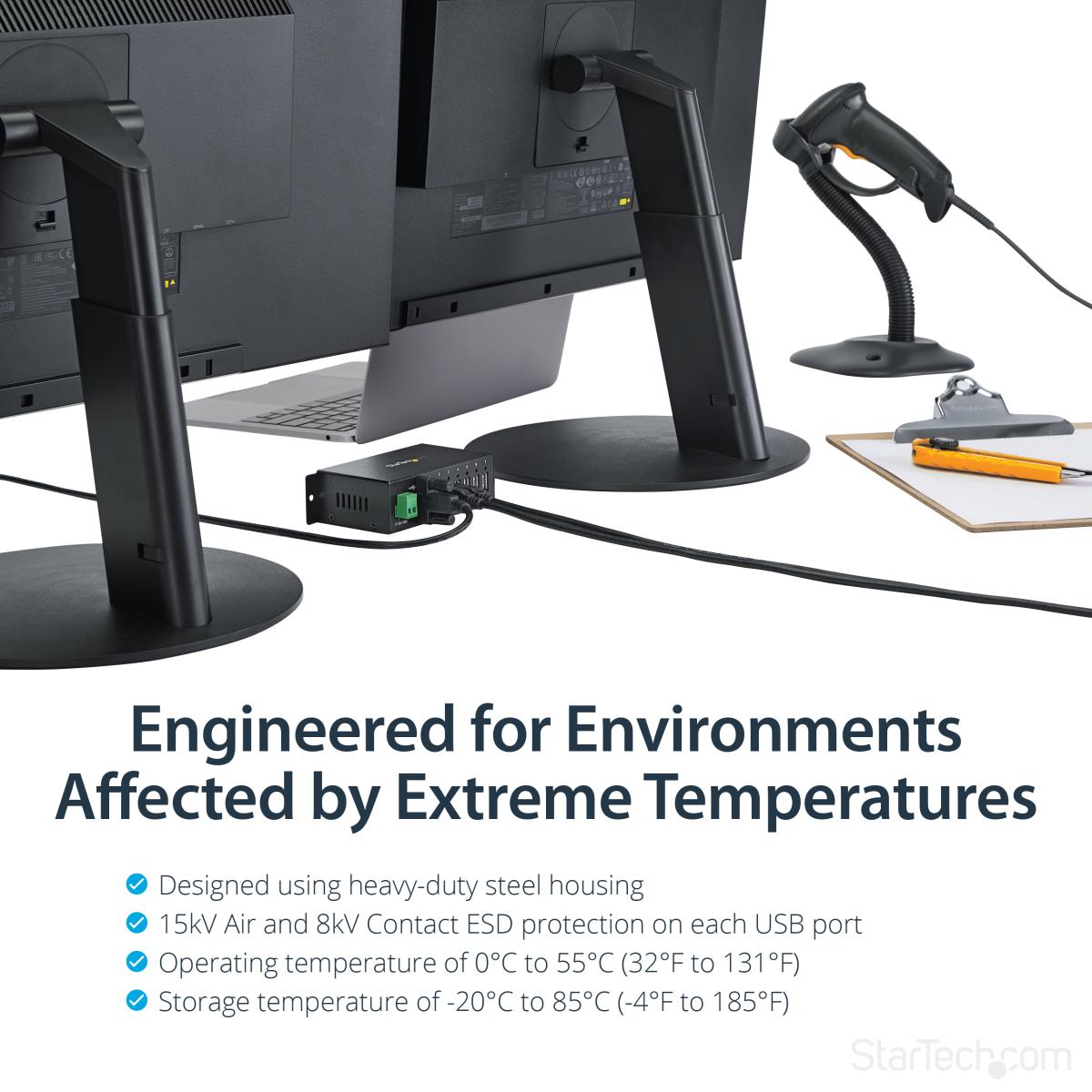

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Logistics data

Master (outer) case width

436 mm

Master (outer) case length

514 mm

Master (outer) case height

264 mm

Products per master (outer) case

25 pc(s)

Other features

Chipset

Terminus - FE2.1
