Ports & interfaces

Card reader integrated

No

DC-in jack

No

Host interface

USB 2.0 Type-B

Hub interfaces

USB 2.0

USB 2.0 ports quantity

4

Ports quantity

4

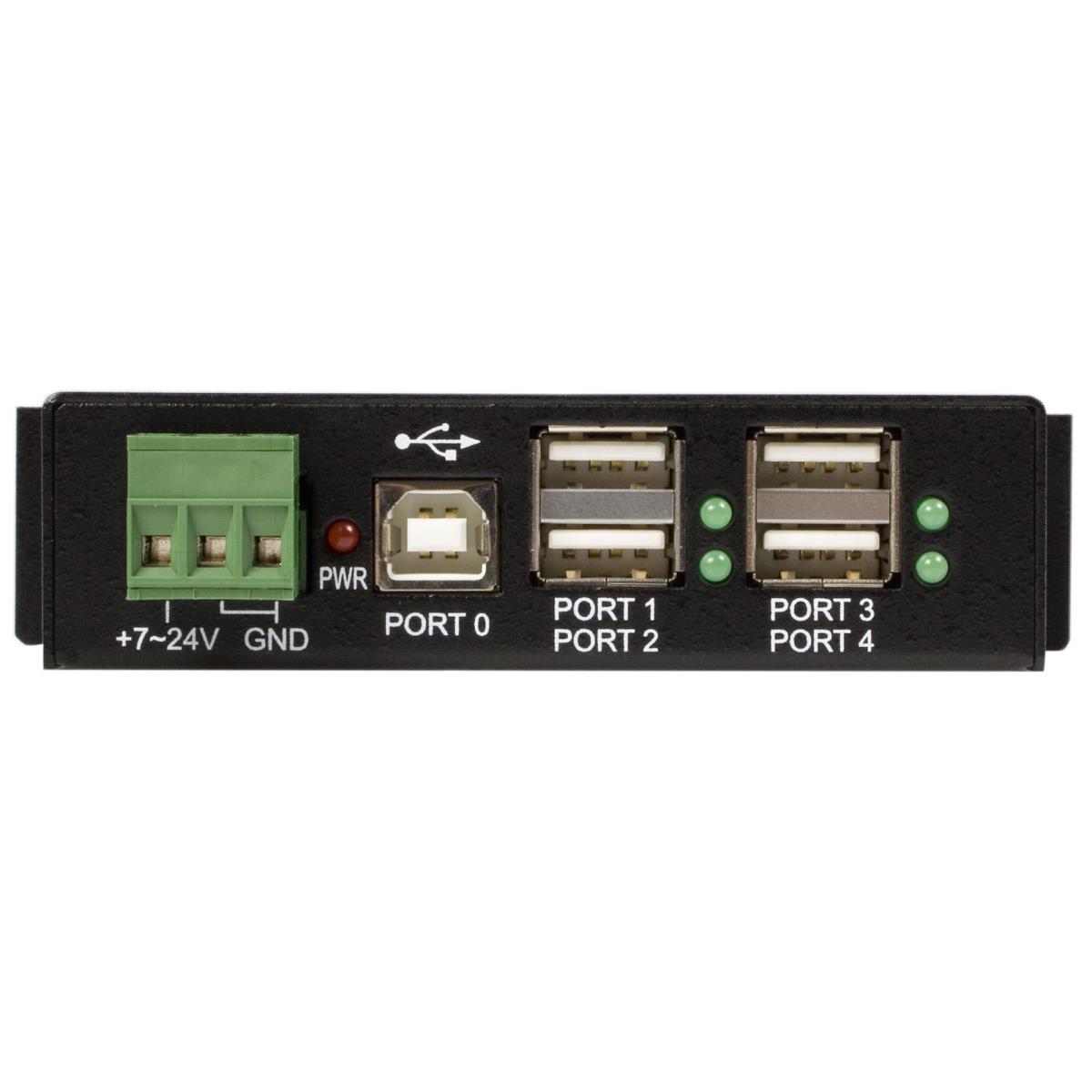

Terminal block port

Y

Features

Data transfer rate

480 Mbit/s

Product colour

Black

Housing material

Steel

LED indicators

Power

Plug and Play

Y

Certification

CE, FCC, TAA, RoHS

Power

Input voltage

7 - 24 V

Performance

Harmonized System (HS) code

84719000

Mean time between failures (MTBF)

193317 h

Weight & dimensions

Width

57.3 mm

Depth

114 mm

Height

26 mm

Weight

207 g

Packaging data

Package width

210 mm

Package depth

146 mm

Package height

40 mm

Package weight

400 g

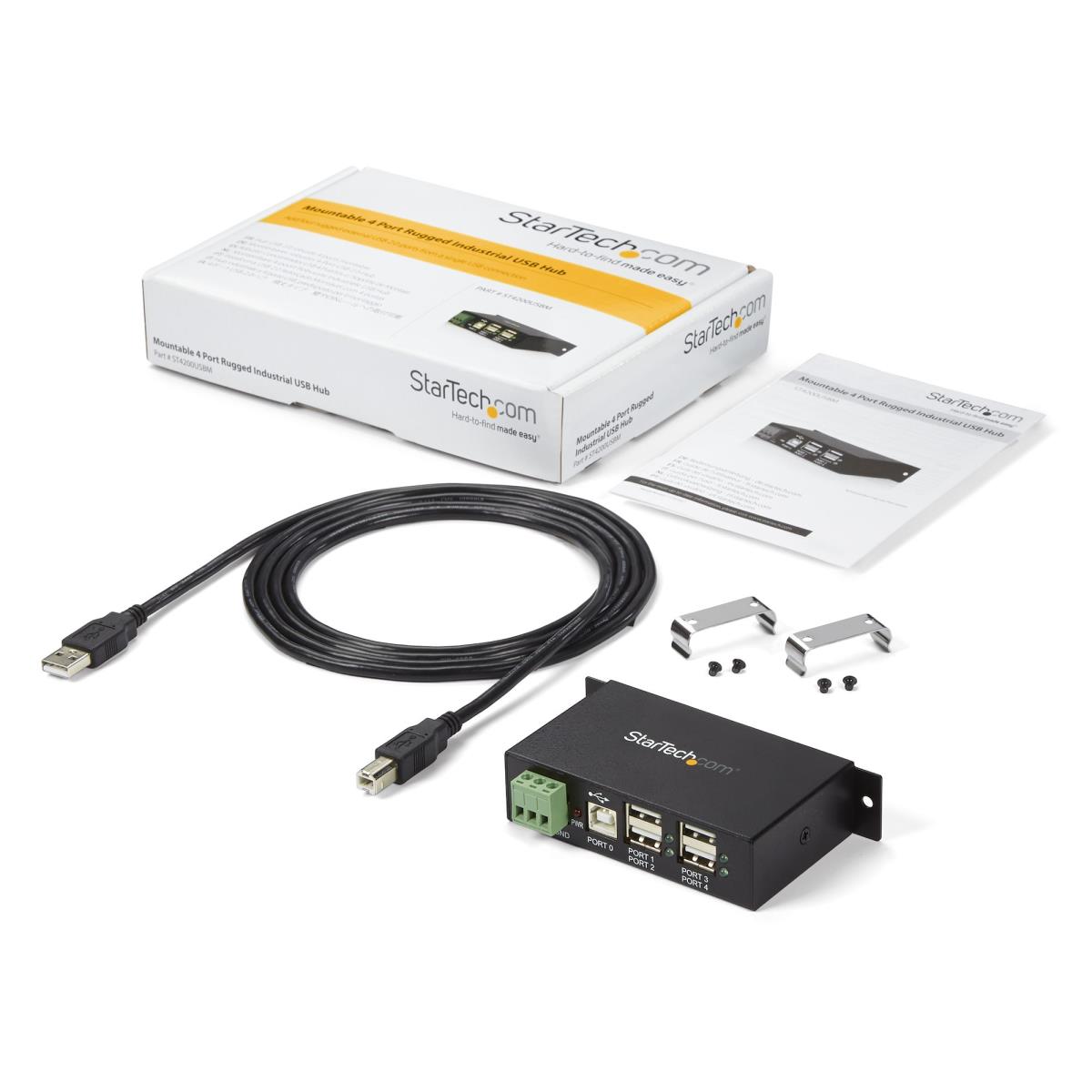

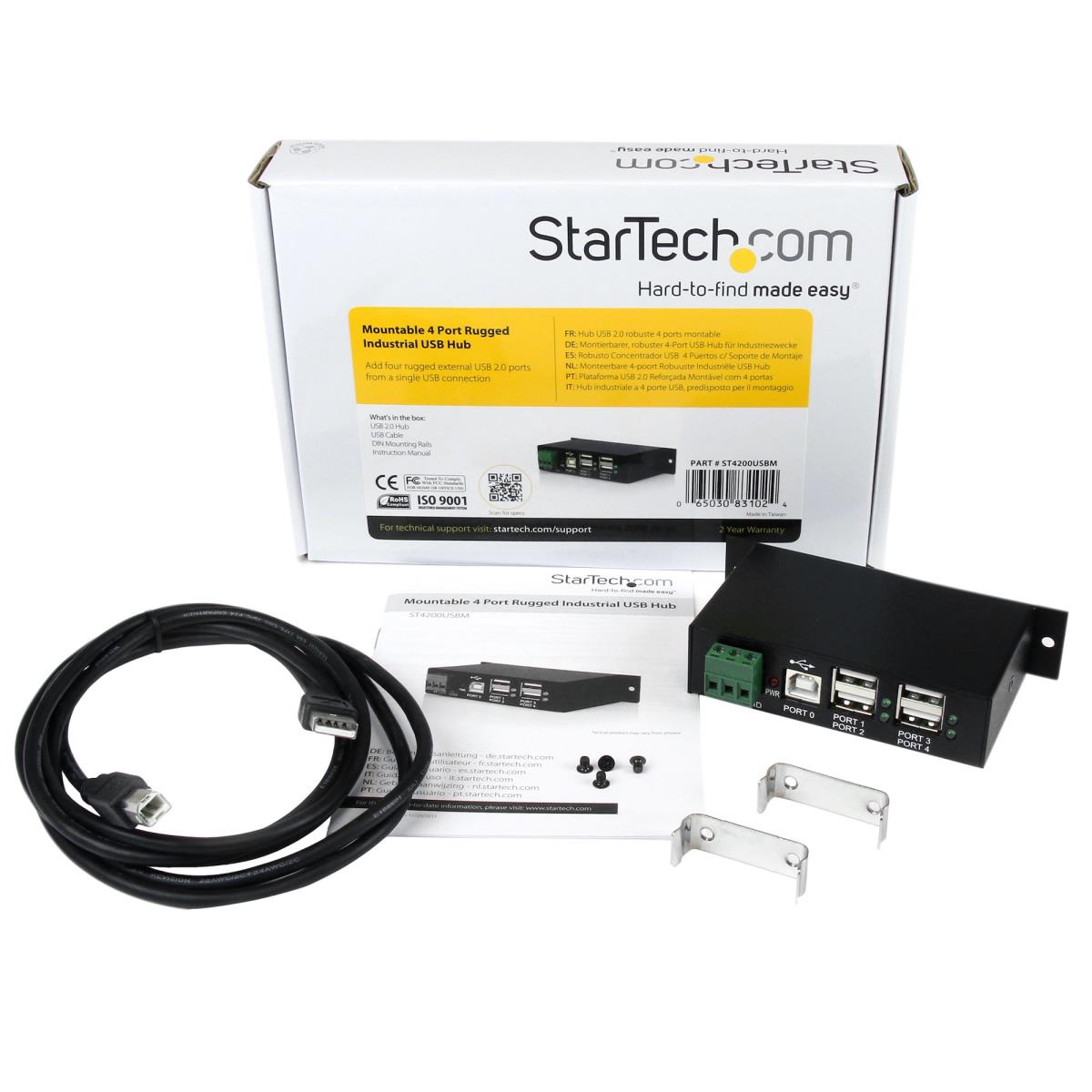

Packaging content

Cables included

USB

Manual

Y

DIN rail kit included

Y

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Logistics data

Master (outer) case width

447 mm

Master (outer) case length

527 mm

Master (outer) case height

339 mm

Products per master (outer) case

50 pc(s)

Other features

Chipset

Renesas/NEC - µPD720114
