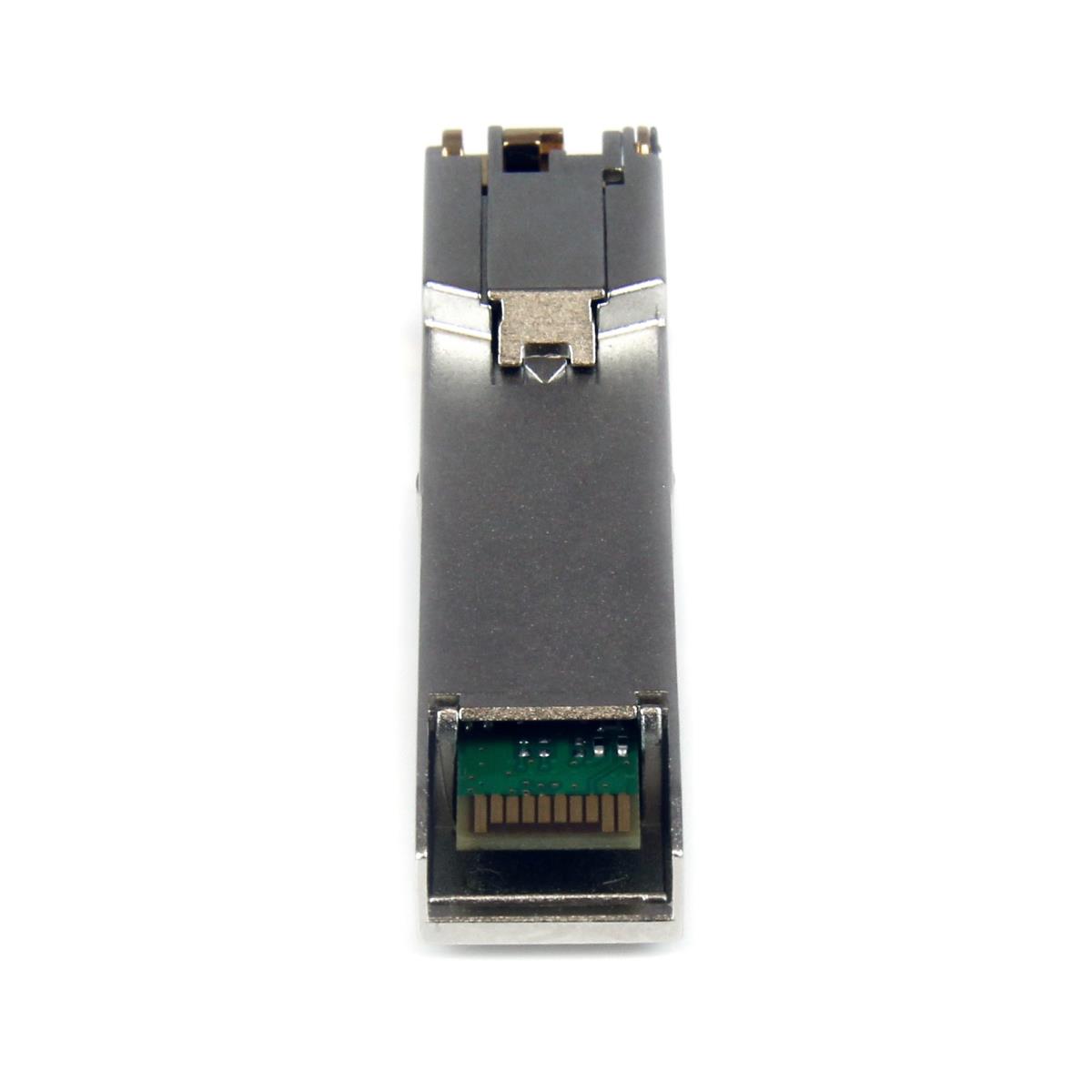

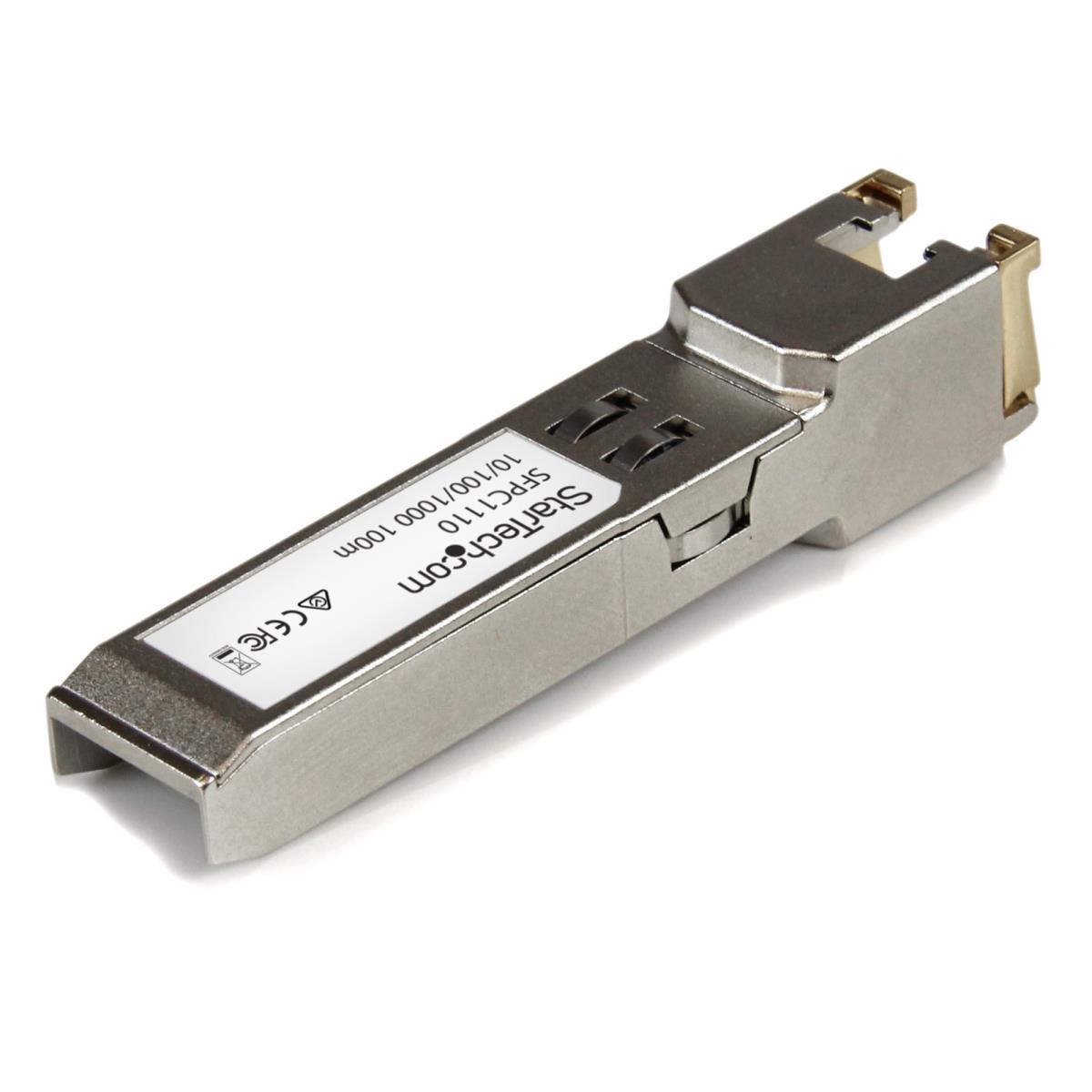

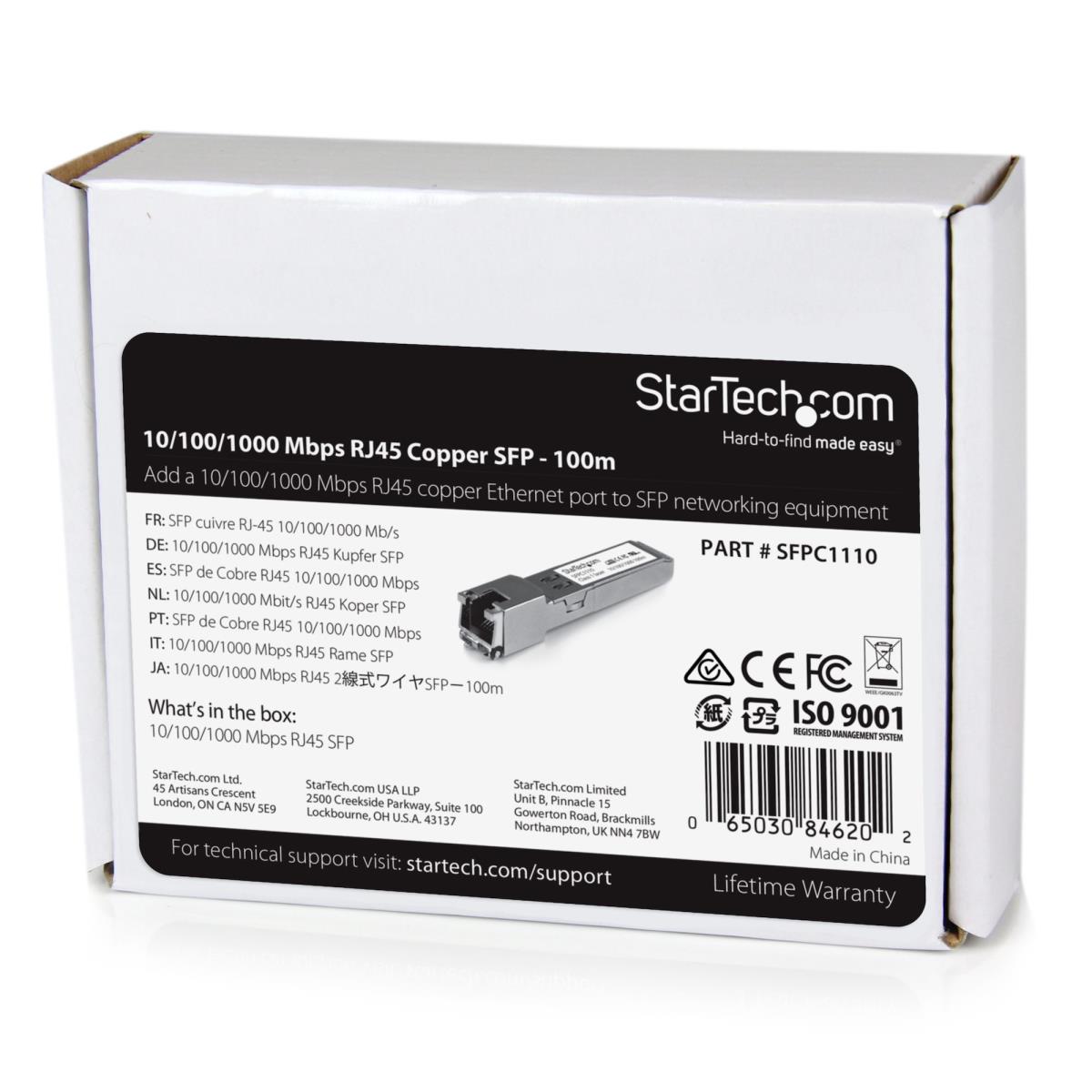

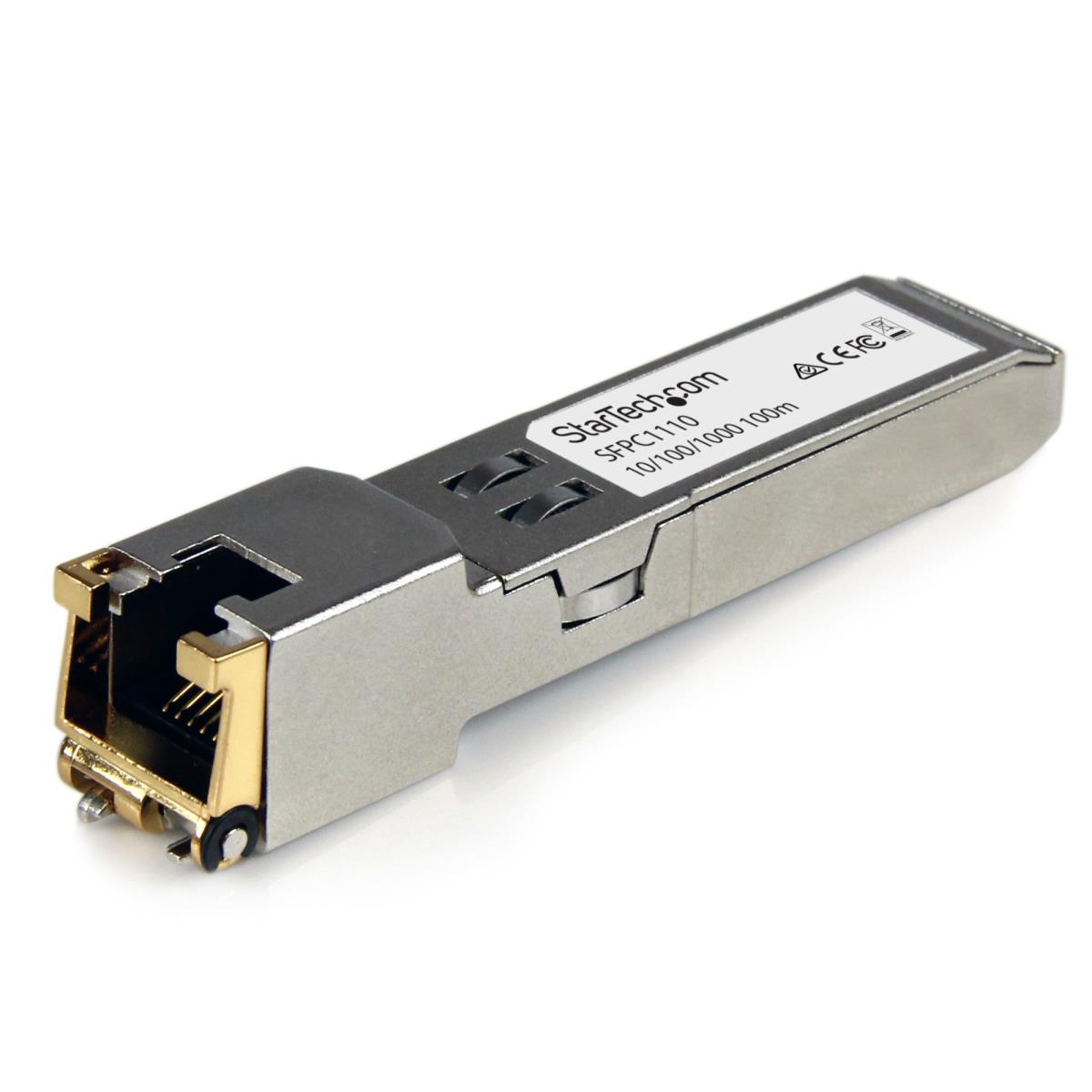

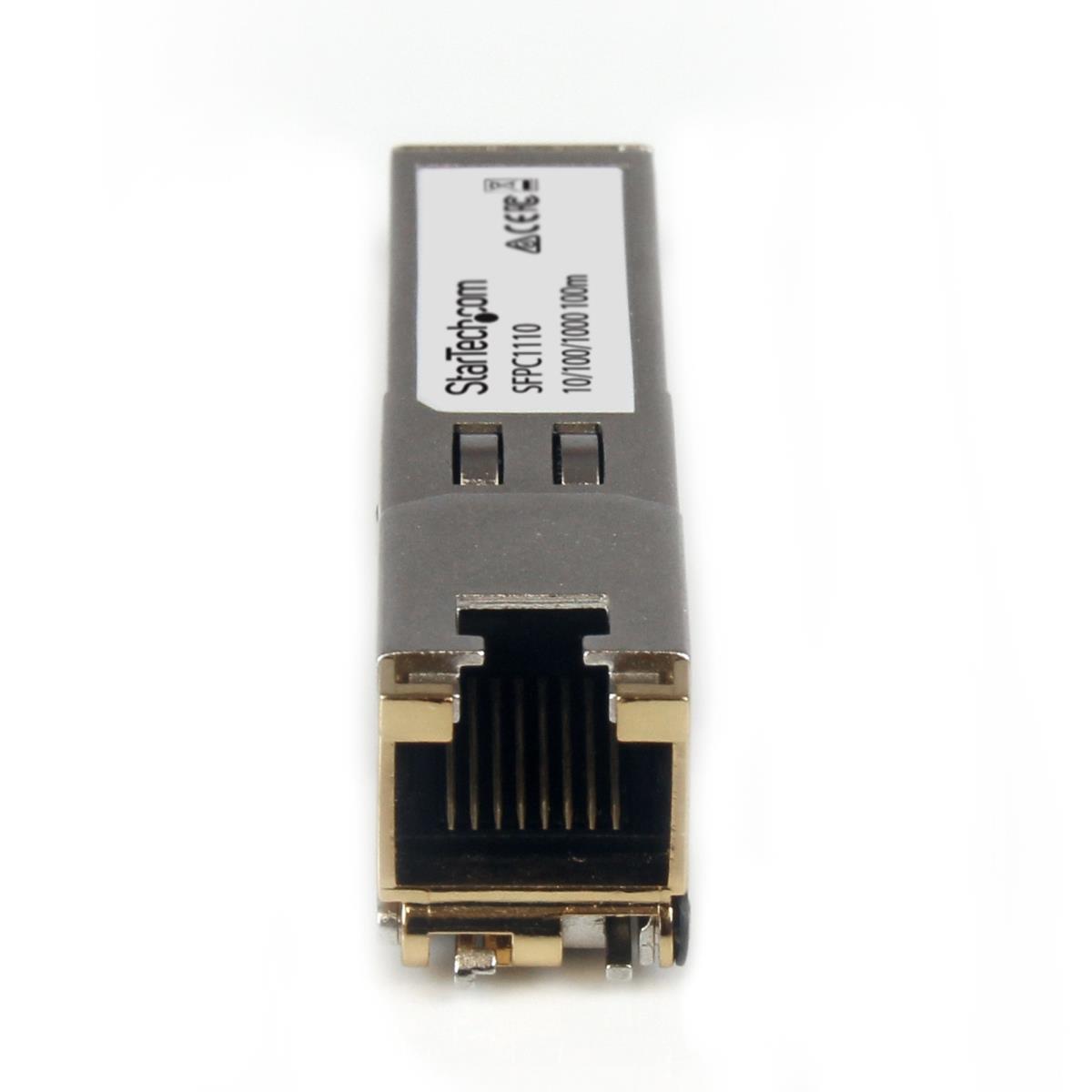

Transceiver Module Rj45 Gigabit Copper Sfp Mini-gbic 100m

Base Price:€41,26
Recupel:+ €0,12
Total:€41,38

Prices exclude VAT

Add
Part Number: SFPC1110
Inetum ID: EG817
Stock
Warranty: 24 months

Product Details

Technical details

Compliance certificates

RoHS

Sustainability certificates

RoHS

Performance

Harmonized System (HS) code

85369010

SFP transceiver type

Copper

Maximum data transfer rate

1250 Mbit/s

Interface type

SFP

Fiber optic connector

SFP

Maximum transfer distance

100 m

Networking standards

IEEE 802.3ab

Cabling technology

1000BASE-T

Auto MDI/MDI-X

Y

Auto-negotiation

Y

Digital Diagnostics Monitoring (DDM)

Y

Ethernet LAN (RJ-45) ports

1

Features

Product colour

Silver

Hot-swap

Y

Mean time between failures (MTBF)

4655371 h

Certification

CE, FCC, UL, REACH

Power

Power consumption (typical)

1.3 W

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

30 - 70%

Weight & dimensions

Width

13 mm

Depth

70 mm

Height

13 mm

Weight

46 g

Packaging data

Number of products included

1 pc(s)

Package width

92 mm

Package depth

116 mm

Package height

33 mm

Package weight

55 g

Logistics data

Master (outer) case width

206 mm

Master (outer) case length

298 mm

Master (outer) case height

248 mm

Products per master (outer) case

36 pc(s)
