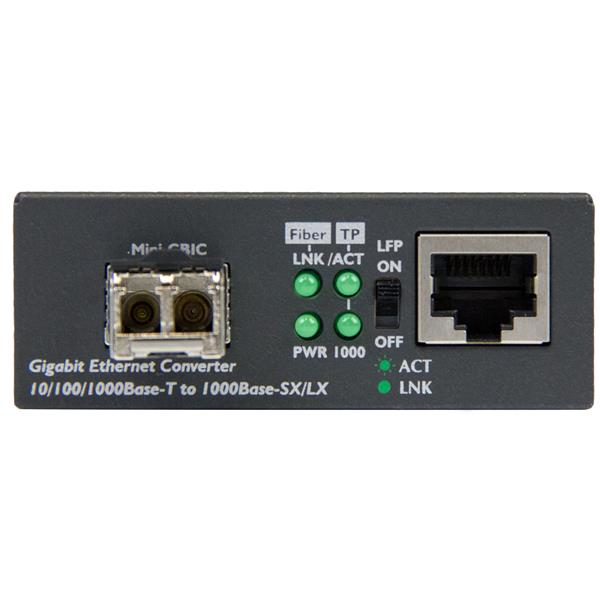

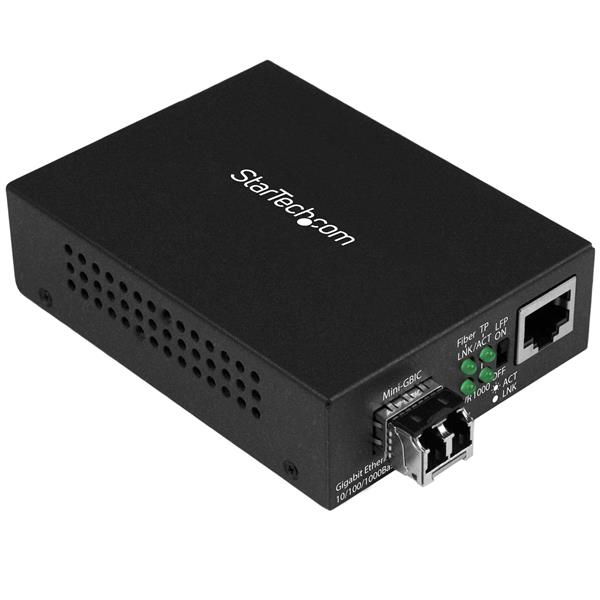

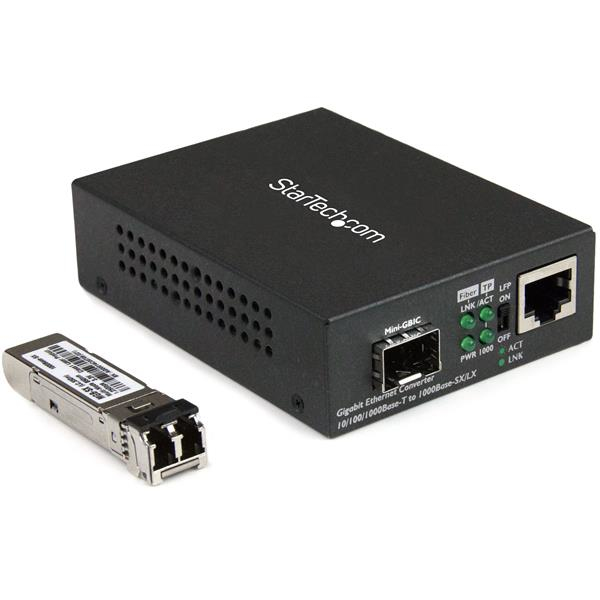

Gigabit Ethernet Fiber Media Converter - Rj45 To 850nm Mm Lc - 550m

Base Price:€74,23
Recupel:+ €0,12
Total:€74,35

Prices exclude VAT

Add
Part Number: MCM1110MMLC
Inetum ID: BJ123
Stock
Warranty: 24 months

Product Details

Logistics data

Master (outer) case width

588 mm

Master (outer) case length

369 mm

Master (outer) case height

313 mm

Products per master (outer) case

20 pc(s)

Technical details

Compliance certificates

RoHS

Harmonized System (HS) code

85176990

Sustainability certificates

RoHS

Network

Maximum data transfer rate

1000 Mbit/s

Converter input interface

1000Base-T,100Base-TX,10Base-T

Converter output interface

1000Base-LX,1000Base-SX

Networking standards

IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Data transfer rate

1000 Mbit/s

Jumbo frames support

Y

Auto MDI/MDI-X

Y

Duplex system

Full

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

1

Fiber ports quantity

1

Fiber optic connector

LC

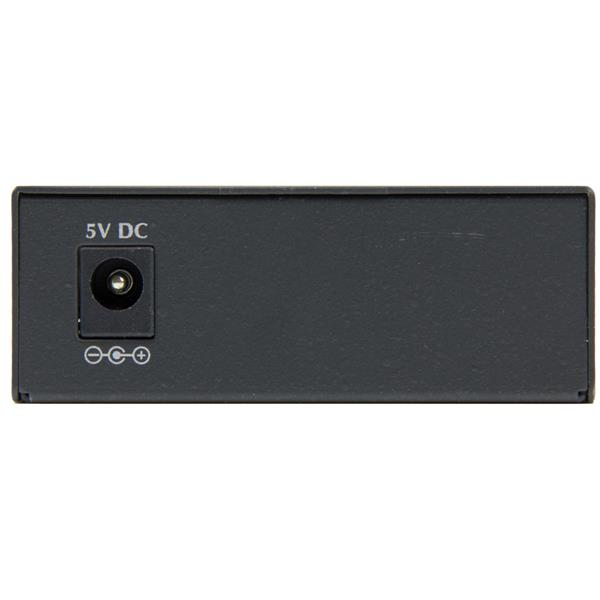

DC-in jack

Y

Performance

Maximum transfer distance

550 m

Wavelength

850 nm

Wavelength-division multiplexing (WDM)

N

Fiber mode structure

Multi-mode

Mean time between failures (MTBF)

50000 h

Design

Internal

N

LED indicators

Activity, Link, Power

Product colour

Black

Housing material

Steel

Certification

CE, FCC, REACH, TAA

Power

Input voltage

100 - 240 V

Input current

1 A

Output voltage

5 V

Output current

2 A

Power over Ethernet (PoE)

N

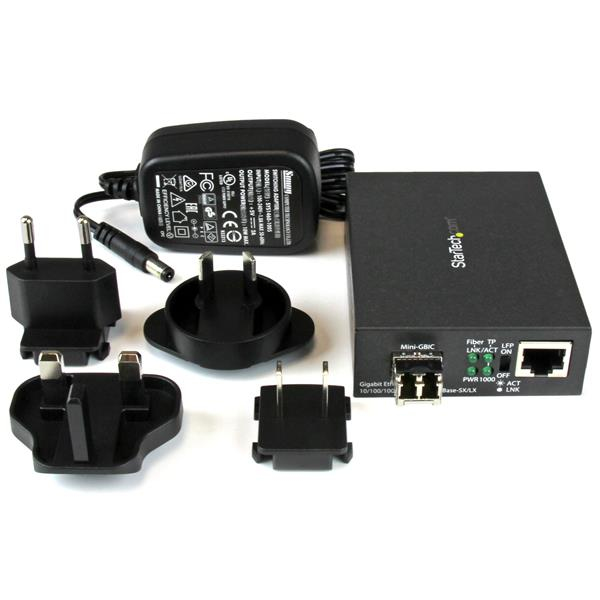

External power adapter

Y

Power plug type

Type N

Weight & dimensions

Width

70 mm

Depth

94 mm

Height

26 mm

Weight

201 g

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Packaging data

Package width

140 mm

Package depth

284 mm

Package height

68 mm

Package weight

556 g

Packaging content

Manual

Y
