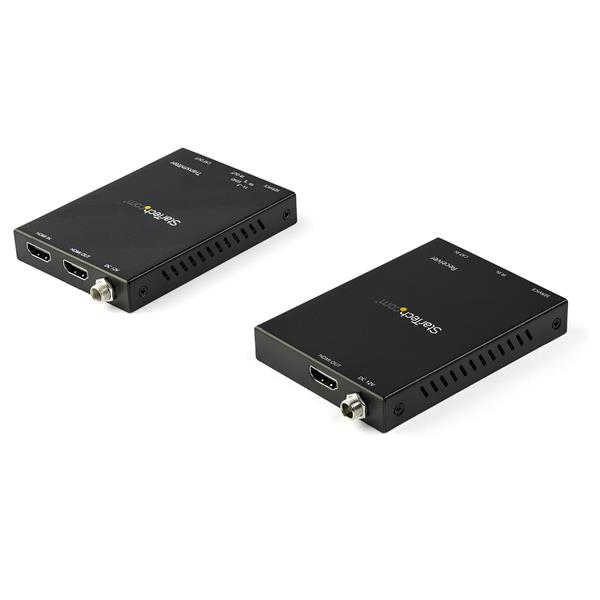

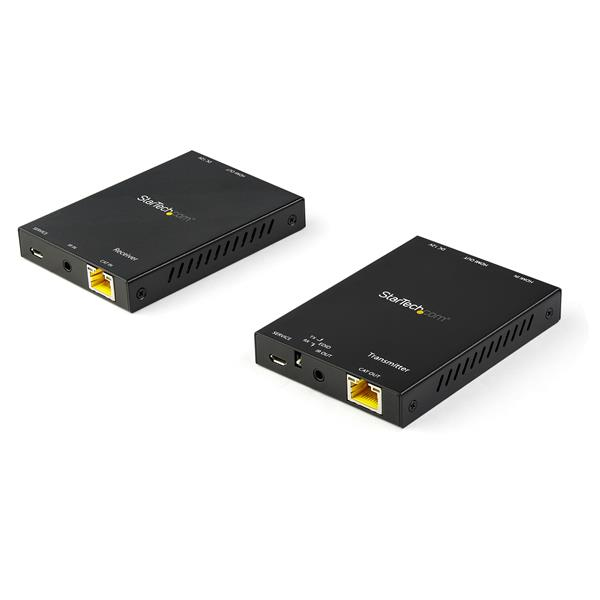

Hdmi Over CAT6 Extender Kit 4k 60hz - 50m

Base Price:€117,17
Recupel:+ €0,06
Total:€117,23

Prices exclude VAT

Add
Part Number: ST121HD20V
Inetum ID: CJ032
Stock

Product Details

Technical details

Compliance certificates

RoHS

Sustainability certificates

RoHS

Logistics data

Harmonized System (HS) code

85176200

Master (outer) case width

375 mm

Master (outer) case length

457 mm

Master (outer) case height

282 mm

Products per master (outer) case

20 pc(s)

Features

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat6

Maximum transfer distance

50 m

Maximum refresh rate

60 Hz

Audio output channels

7.1 channels

Supported graphics resolutions

1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160

HDCP

Y

HDCP version

2.2

Product colour

Black

Certification

CE, FCC, REACH

Ports & interfaces

Connectivity technology

Wired

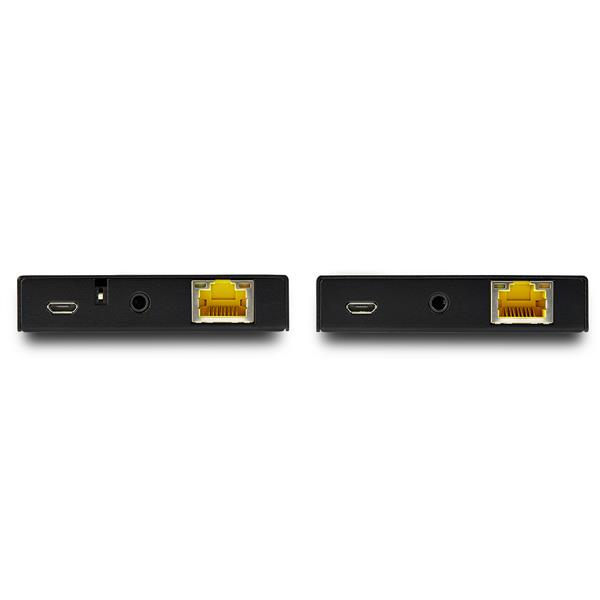

RJ-45 input ports

1

RJ-45 output ports

1

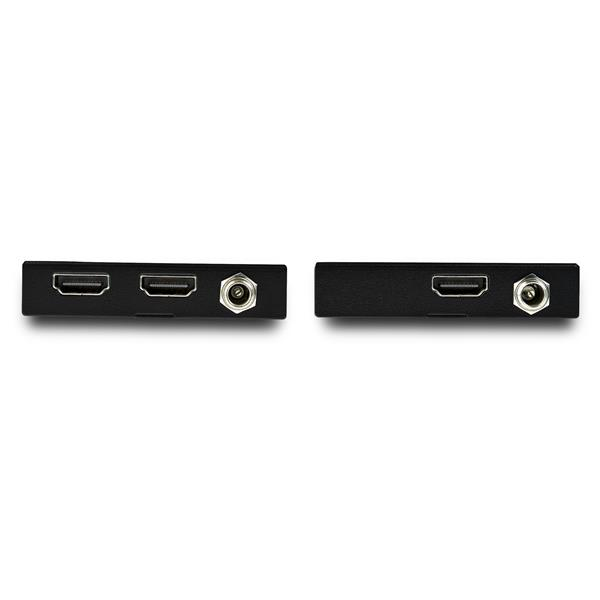

HDMI in

1

Number of HDMI outputs

2

HDMI version

2.0

Power

AC input voltage

100 - 240 V

Input current

0.3 A

Operating voltage (transmitter)

12 V

Output current

1 A

Operating voltage (receiver)

12 V

Power plug type

Type M

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

70 mm

Depth

97 mm

Height

13 mm

Weight

156 g

Packaging data

Package width

130 mm

Package depth

220 mm

Package height

70 mm

Package weight

777 g

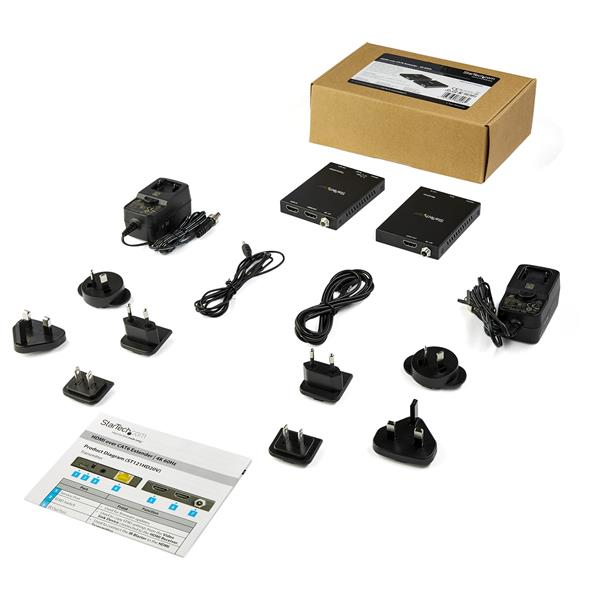

Packaging content

Included power plug types

ANZ, EU, JP, NA, UK

Quick start guide

Y

IR blaster included

Y

IR receiver included

Y
