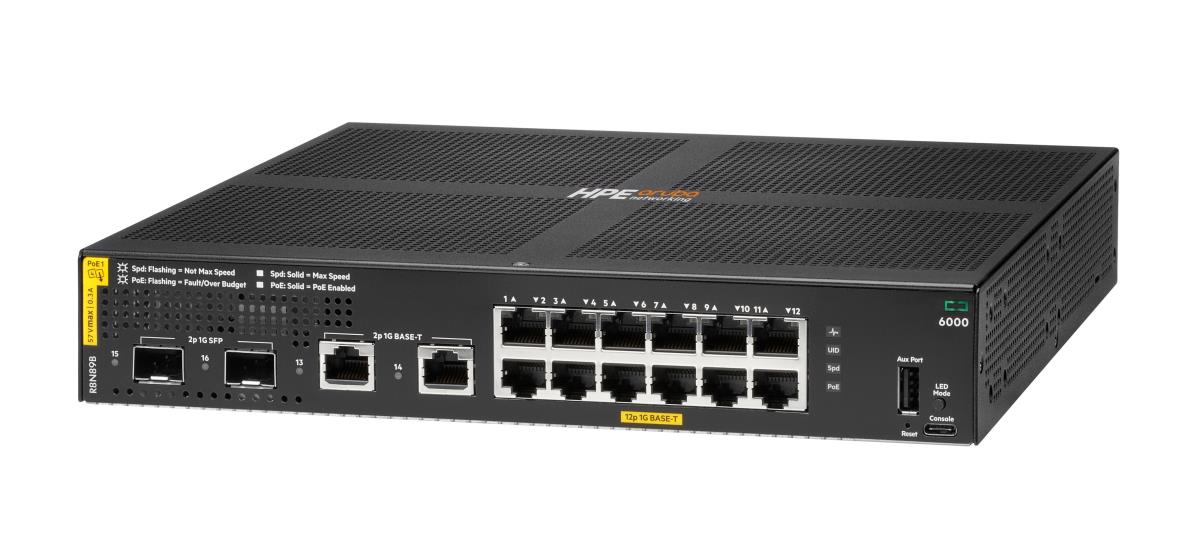

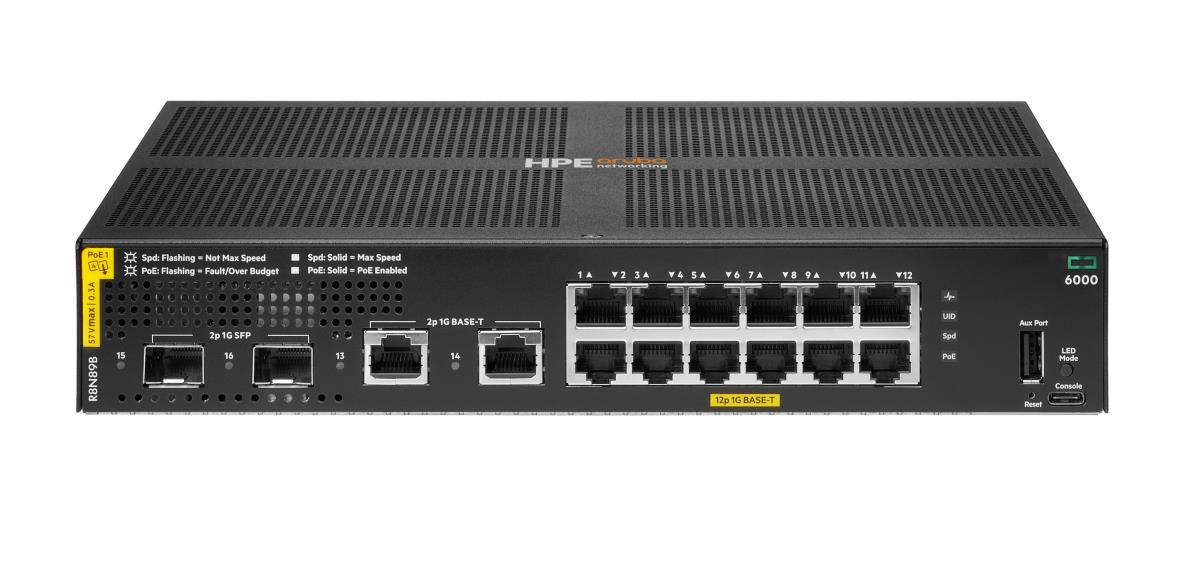

Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Switch

Base Price:€483,97
Total:€483,97

Prices exclude VAT

Add
Part Number: R8N89B#ABB
Inetum ID: EN795
Stock
eta:
Warranty: 12 months

Product Details

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

Cloud-managed

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

12

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

2

Console port

USB

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

10G support

No

Port mirroring

Yes

Flow control support

Yes

Link aggregation

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Data transmission

Switching capacity

32 Gbit/s

Throughput

23.8 Mpps

MAC address table

8192 entries

Latency (1 Gbps)

2.3 µs

Static route

Yes

Packet buffer memory

12.38 MB

Security

DHCP features

DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Authentication

MAC-based authentication

Multicast features

Multicast support

Yes

Protocols

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL)

IPv4 FIB entries

256

IPv6 FIB entries

128

Design

Rack mounting

Yes

Stackable

No

Form factor

1U

Performance

Built-in processor

Yes

Processor model

ARM Cortex-A9

Processor frequency

1016 MHz

Memory type

DDR3-SDRAM

Internal memory

4096 MB

Flash memory

16384 MB

Power

Power source

AC

Power supply included

Yes

AC input voltage

200 - 240 V

Power consumption note

Max. Power (w/o PoE): 19.7W Max. Power (w/ PoE): 165W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Total Power over Ethernet (PoE) budget

139 W

Other features

Latency

1 Gbps: 2.3 µSec

Memory and processor

CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC

I/O ports

12 x 10/100/1000BASE-T Class 4 PoE ports 2 x 1 G SFP ports 2 x 1 GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port

Performance management

Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

15 - 95%

Storage relative humidity (H-H)

15 - 90%

Weight & dimensions

Width

44 mm

Depth

254 mm

Height

255 mm

Weight

2.8 kg

Logistics data

Harmonized System (HS) code

85176990
