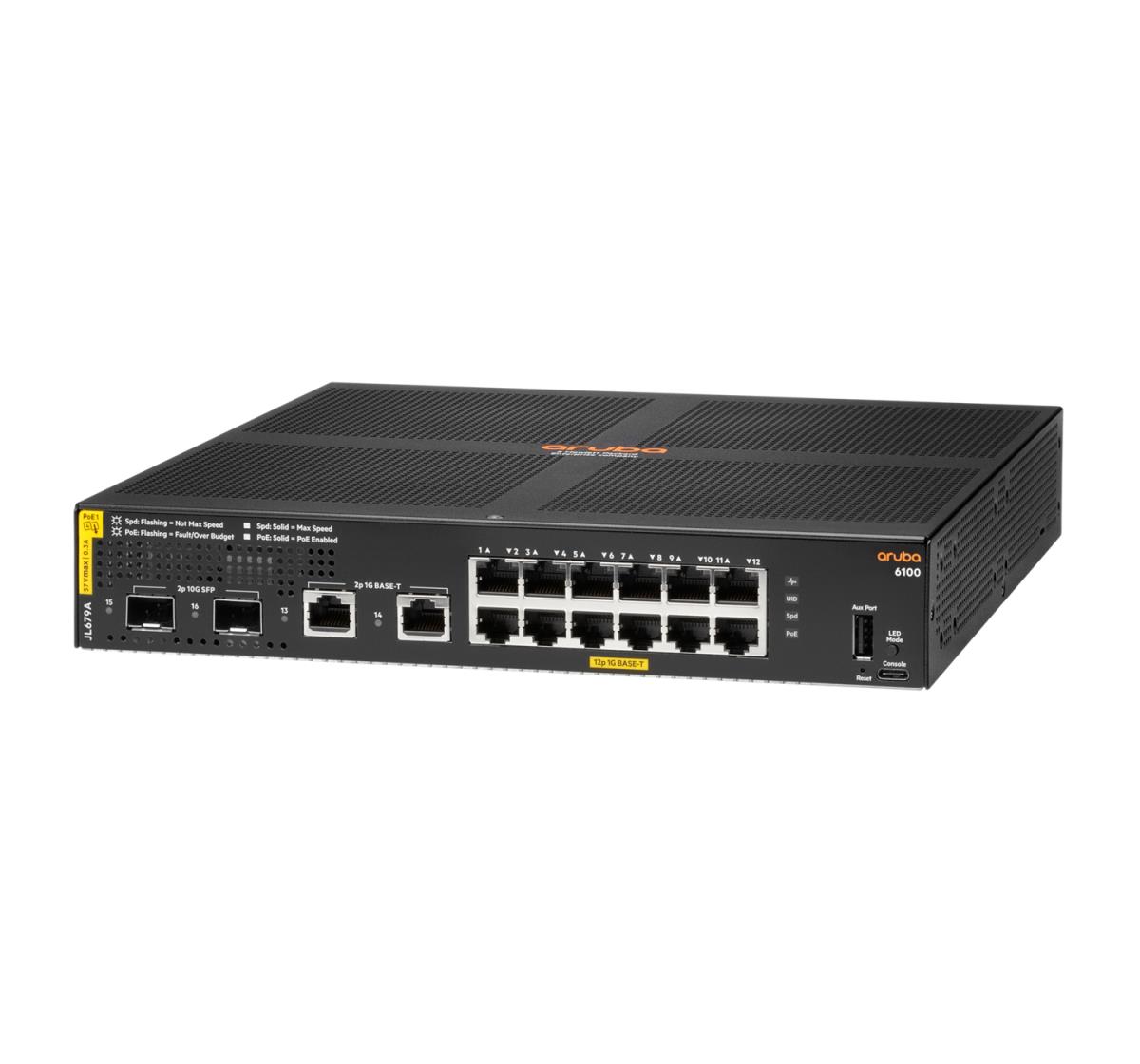

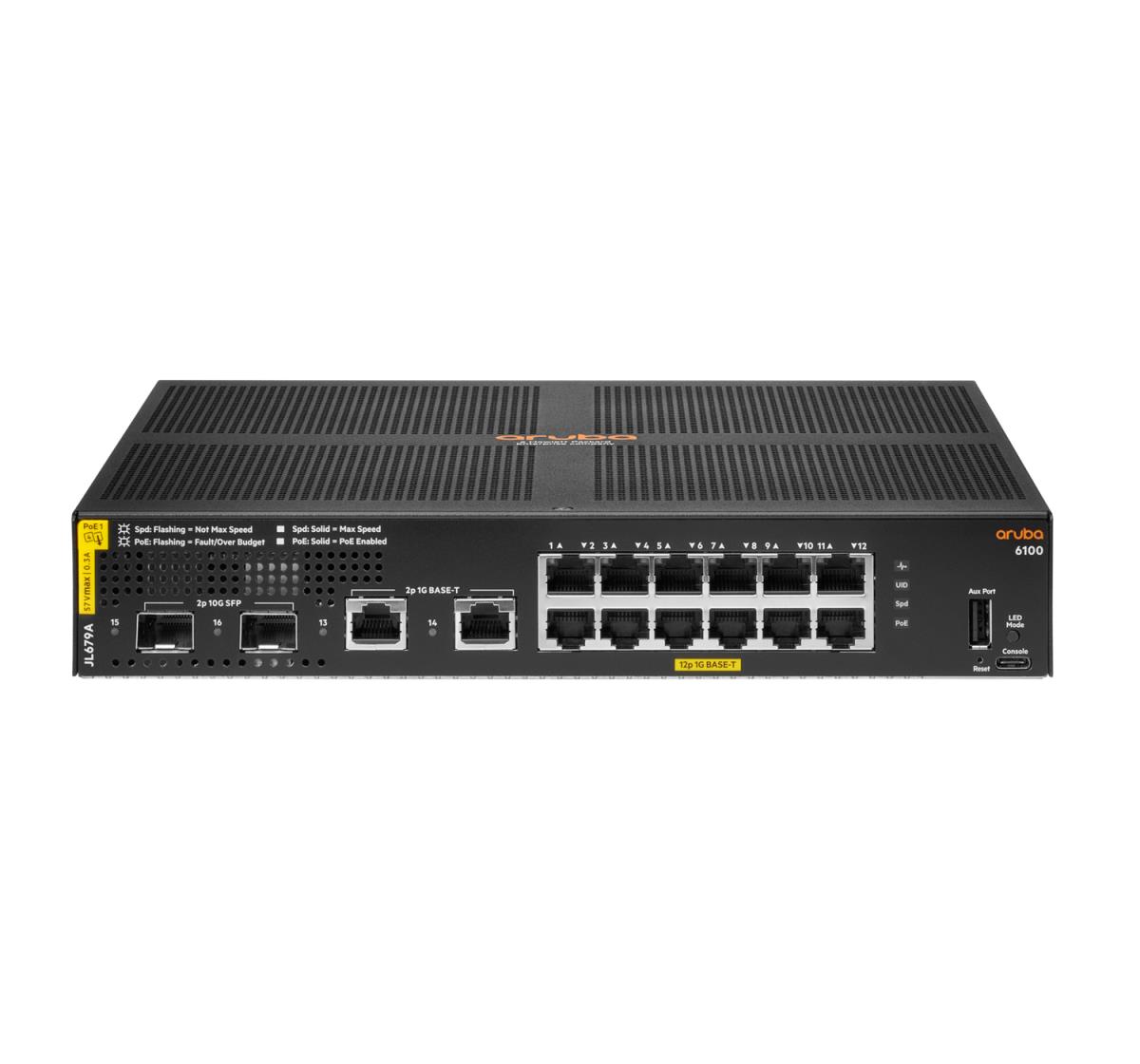

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch, 12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports

Base Price:€1.071,64
Total:€1.071,64

Prices exclude VAT

Add
Part Number: JL679A#ABB
Inetum ID: CO908
Stock
Warranty: 12 months

Product Details

Logistics data

Harmonized System (HS) code

85176990

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

12

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity

2

Console port

USB

Network

Networking standards

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x

10G support

Y

Port mirroring

Y

Flow control support

Y

Link aggregation

Y

Spanning tree protocol

Y

VLAN support

Y

Data transmission

Switching capacity

68 Gbit/s

Throughput

45.1 Mpps

MAC address table

8192 entries

Latency (1 Gbps)

2.3 µs

Latency (10 Gbps)

2.6 µs

Jumbo frames support

Y

Packet buffer memory

12.38 MB

Security

DHCP features

DHCP client

Access Control List (ACL)

Y

IGMP snooping

Y

Authentication

MAC-based authentication

Authentication type

RADIUS,TACACS+

Multicast features

Multicast support

Y

Design

Rack mounting

Y

Stackable

Y

Form factor

1U

Product colour

Black

Performance

Built-in processor

Y

Processor model

ARM Cortex-A9

Processor frequency

1016 MHz

Memory type

DDR3-SDRAM

Internal memory

4096 MB

Flash memory

16 MB

Power

Power supply included

Y

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

21.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Total Power over Ethernet (PoE) budget

139 W

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

15 - 95%

Storage relative humidity (H-H)

15 - 90%

Weight & dimensions

Width

254 mm

Depth

255 mm

Height

44 mm

Weight

2.8 kg
