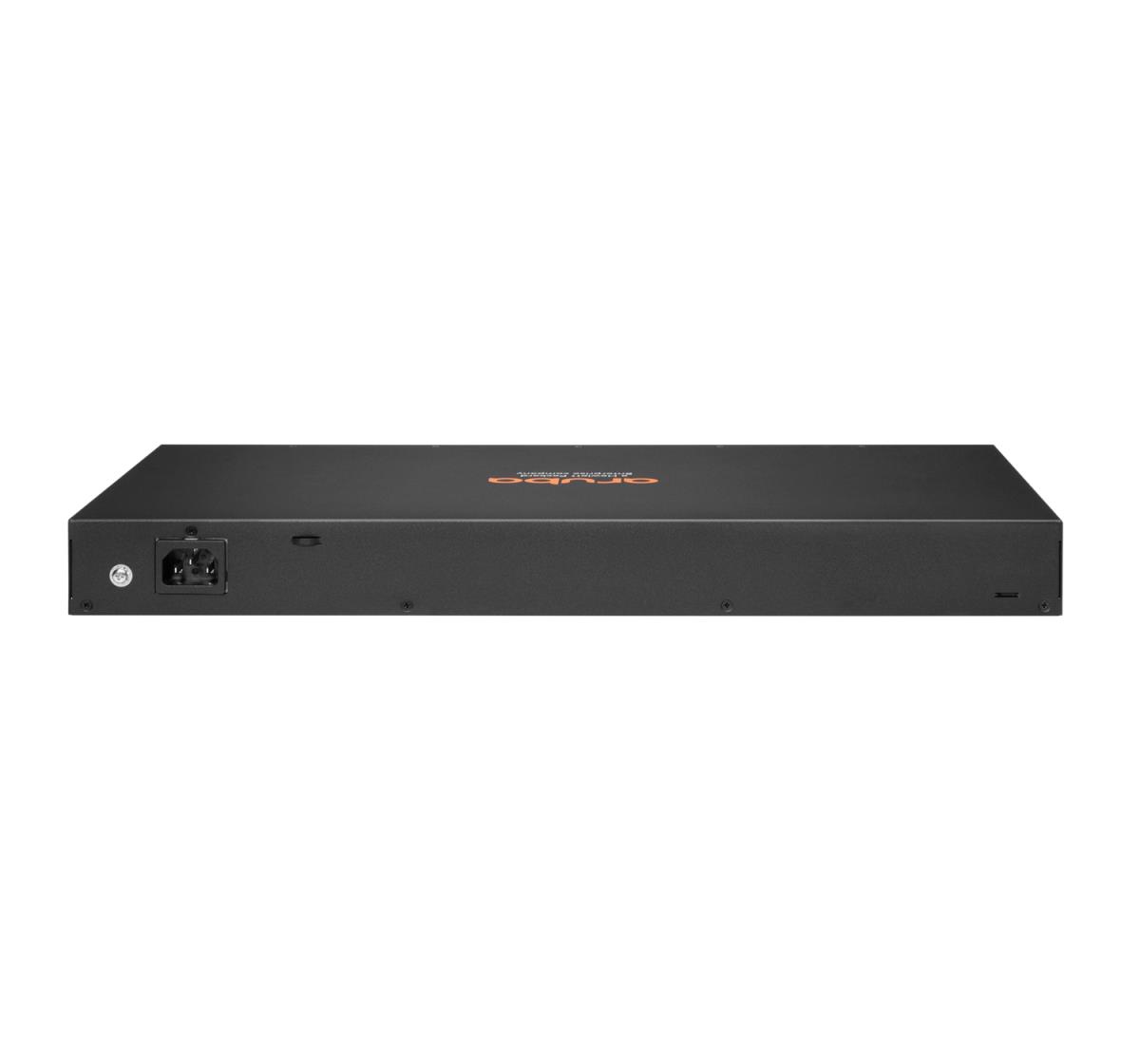

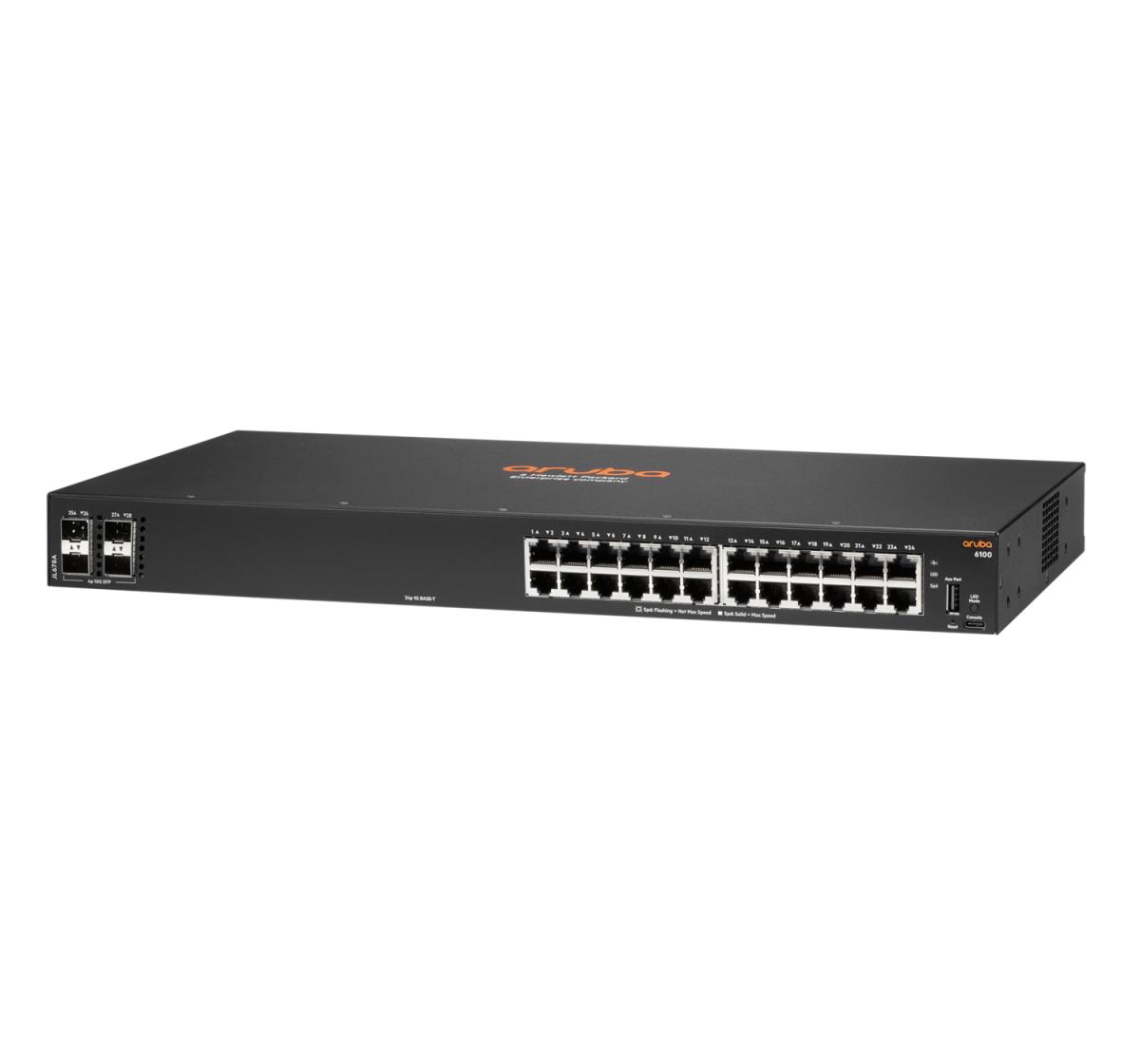

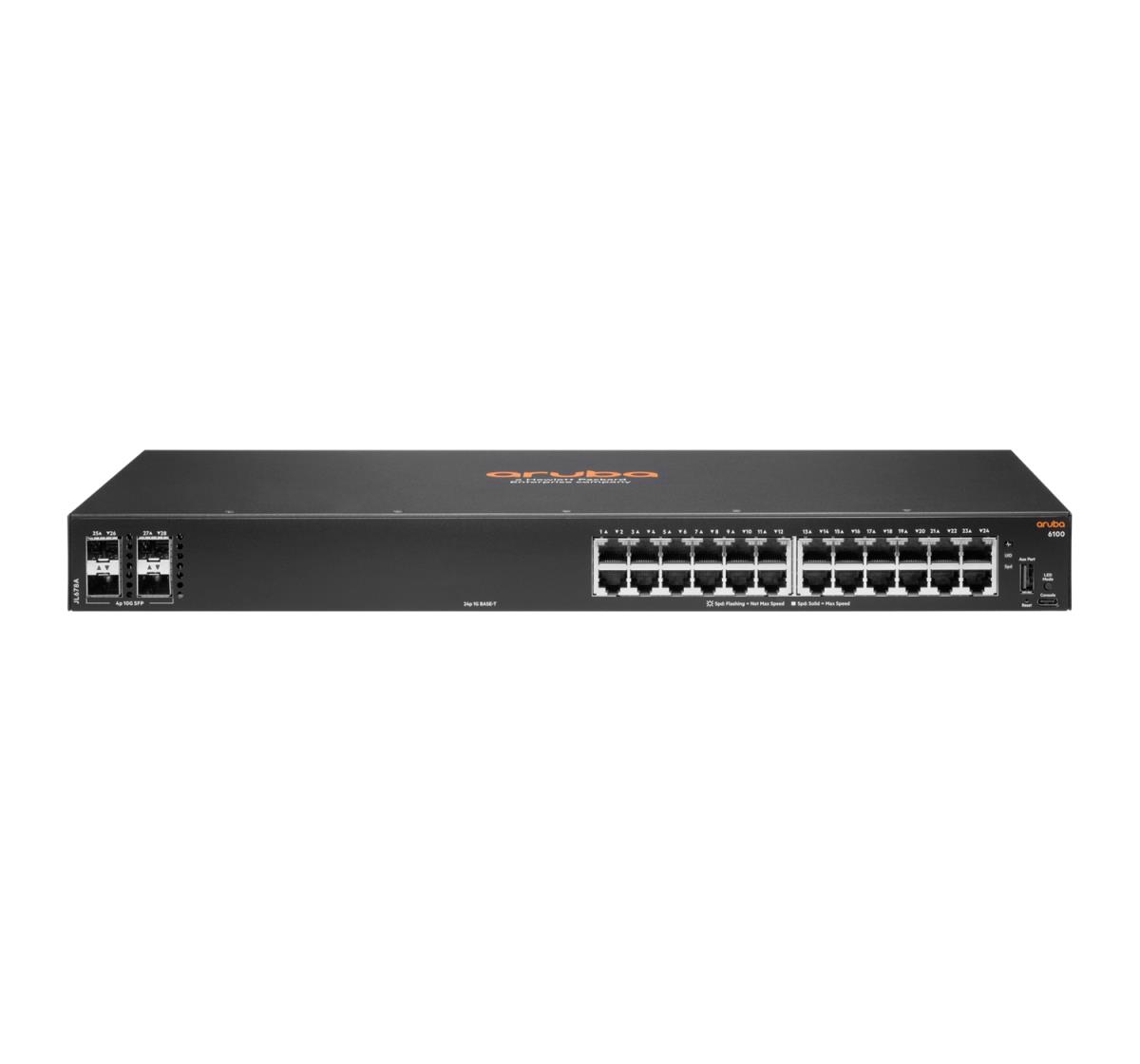

Aruba 6100 24G 4SFP+ Switch, 24x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports

Base Price:€1.080,23
Total:€1.080,23

Prices exclude VAT

Add
Part Number: JL678A#ABB
Inetum ID: CU837
Stock
Warranty: 12 months

Product Details

Power

Power source

AC

Power supply included

Y

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

33 W

Logistics data

Harmonized System (HS) code

85176990

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity

4

Console port

USB

Network

Networking standards

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x

10G support

Y

Port mirroring

Y

Flow control support

Y

Link aggregation

Y

Spanning tree protocol

Y

VLAN support

Y

Data transmission

Switching capacity

128 Gbit/s

Throughput

95.2 Mpps

MAC address table

8192 entries

Latency (1 Gbps)

1.5 µs

Latency (10 Gbps)

1.8 µs

Jumbo frames support

Y

Packet buffer memory

12.38 MB

Security

DHCP features

DHCP client

Access Control List (ACL)

Y

Authentication

MAC-based authentication

Authentication type

RADIUS,TACACS+

Multicast features

Multicast support

Y

Design

Rack mounting

Y

Stackable

Y

Form factor

1U

Product colour

Black

Airflow direction

Side-to-side airflow

Performance

Virtual stacking (units)

16

Built-in processor

Y

Processor model

ARM Cortex-A9

Processor frequency

1016 MHz

Memory type

DDR3-SDRAM

Internal memory

4096 MB

Flash memory

16 MB

Power over Ethernet (PoE)

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

15 - 95%

Storage relative humidity (H-H)

15 - 90%

Weight & dimensions

Width

442 mm

Depth

201 mm

Height

44 mm

Weight

2.6 kg
