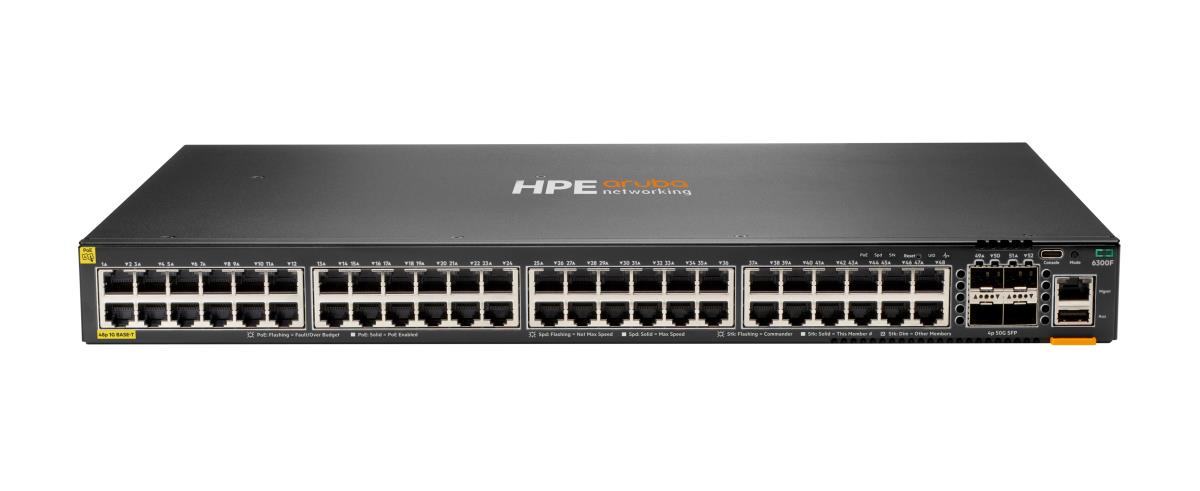

Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch

Base Price:€11.688,89
Recupel:+ €0,12
Total:€11.689,01

Prices exclude VAT

Add
Part Number: JL665A
Inetum ID: CZ259
Stock
Warranty: 12 months

Product Details

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Yes

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Fiber ports quantity

4

Fiber optic connector

SFP, SFP+, SFP28, SFP56

Fiber ports quantity

4

Fiber optic connector

SFP, SFP+, SFP28, SFP56

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

4

Network

Networking standards

IEEE 802.3af, IEEE 802.3at

10G support

Yes

Port mirroring

Yes

Flow control support

Yes

Link aggregation

Yes

Rate limiting

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Number of VLANs

4094

Networking standards

IEEE 802.1Q,IEEE 802.1p,IEEE 802.1v,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x

10G support

Y

Port mirroring

Y

Flow control support

Y

Link aggregation

Y

Rate limiting

Y

Auto MDI/MDI-X

Y

Spanning tree protocol

Y

VLAN support

Y

Number of VLANs

4094

Data transmission

MAC address table

29490 entries

Latency (1 Gbps)

2.28 µs

Latency (10 Gbps)

1.46 µs

Jumbo frames support

Yes

Packet buffer memory

8 MB

Switching capacity

496 Gbit/s

Throughput

369 Mpps

MAC address table

29490 entries

Latency (1 Gbps)

2.28 µs

Latency (10 Gbps)

1.46 µs

Jumbo frames support

Y

Packet buffer memory

8 MB

Power

Power supply note

Internal (fixed) power supply (950W)

Power source

AC

Power supply included

Yes

AC input voltage

200 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

86 W

Power consumption note

Idle: 63W 100% Traffic Rate: 86W

Power source

AC

Power supply included

Y

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

86 W

Security

DHCP features

DHCP server

Access Control List (ACL)

Yes

IGMP snooping

Yes

SSH/SSL support

Yes

Authentication type

RADIUS

DHCP features

DHCP server

Access Control List (ACL)

Y

IGMP snooping

Y

SSH/SSL support

Y

Authentication type

RADIUS

Multicast features

Multicast support

Yes

Multicast support

Y

Protocols

Routing protocols

IP

Routing protocols

BGP, BGP4, IP, OSPF

Design

Rack mounting

Yes

Form factor

1U

Product colour

Grey

Rack mounting

Y

Stackable

Y

Form factor

1U

Product colour

Grey

Performance

Flash memory

32000 MB

Harmonized System (HS) code

85176990

Physical stacking (units)

10

Built-in processor

Y

Processor frequency

1800 MHz

Memory type

DDR4-SDRAM

Internal memory

8192 MB

Operational conditions

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

15 - 95%

Storage relative humidity (H-H)

15 - 90%

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

15 - 95%

Storage relative humidity (H-H)

15 - 90%

Other features

Latency

1 Gbps: 2.28 µs 10 Gbps: 1.46 µs 25 Gbps: 1.90 µs 50 Gbps: 3.49 µs

Memory and processor

CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration

I/O ports

48 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port

Performance management

Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software

Weight (imperial)

5.1 kg (11.2 lbs)

Dimensions (W x D x H) (imperial)

43.9 x 442 x 327.7 mm (1.73 x 17.4 x 12.9")

Fan

Fixed fans

Logistics data

Harmonized System (HS) code

85176990

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Total Power over Ethernet (PoE) budget

740 W

Weight & dimensions

Width

442 mm

Depth

327 mm

Height

43.9 mm

Weight

5.1 kg


Every effort has been made to ensure the accuracy of all information contained herein. Inetum shall not be liable for any changes resulting in wrong product description, tax code and/or price. The shown information (specifications, prices, taxes) should be considered as an indication and can be changed at any moment and without any prior notice.
