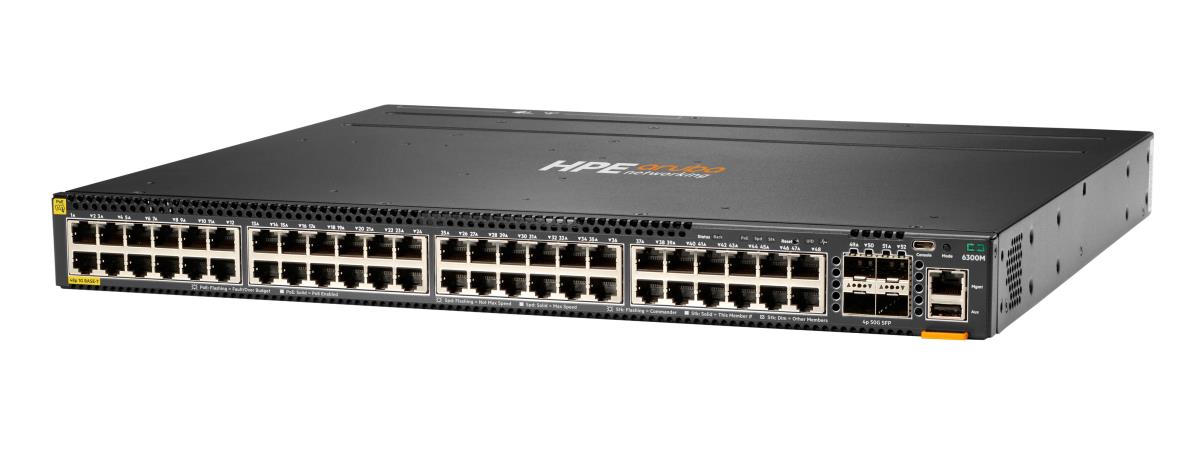

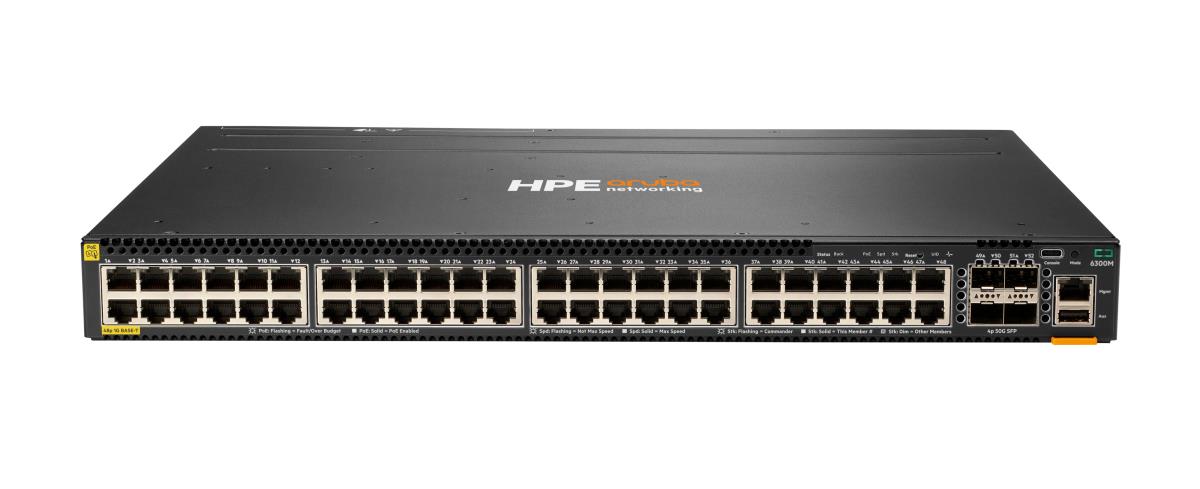

Aruba 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch

Base Price:€12.208,43
Recupel:+ €0,12
Total:€12.208,55

Prices exclude VAT

Add
Part Number: JL661A
Inetum ID: CD614
Stock
Warranty: 36 months

Product Details

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Yes

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

4

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

4

Network

Networking standards

IEEE 802.3af, IEEE 802.3at

10G support

No

Port mirroring

Yes

Flow control support

Yes

Link aggregation

Yes

Rate limiting

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Networking standards

IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x,IEEE 802.3z

10G support

Y

Port mirroring

Y

Flow control support

Y

Link aggregation

Y

Rate limiting

Y

Auto MDI/MDI-X

Y

Spanning tree protocol

Y

VLAN support

Y

Optical fiber

Transmission distance (max)

10 km

Transmission distance (max)

10 km

Data transmission

MAC address table

29490 entries

Latency (1 Gbps)

2.28 µs

Latency (10 Gbps)

1.46 µs

Jumbo frames support

Yes

Packet buffer memory

8 MB

Switching capacity

496 Gbit/s

Throughput

369 Mpps

MAC address table

29490 entries

Latency (1 Gbps)

2.28 µs

Latency (10 Gbps)

1.46 µs

Jumbo frames support

Y

Packet buffer memory

8 MB

Power

Power supply note

2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A and JL670A.

Power supply included

No

AC input voltage

100 - 240 V

AC input voltage

100 - 240 V

Power consumption note

With JL086A PSU: Idle: 70W 100% Traffic Rate: 90W With JL087A PSU: Idle: 71W 100% Traffic Rate: 88W With JL670A PSU: Idle: 73W 100% Traffic Rate: 96W

Power supply included

Y

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Security

DHCP features

DHCP server

Access Control List (ACL)

Yes

IGMP snooping

Yes

SSH/SSL support

Yes

DHCP features

DHCP server

Access Control List (ACL)

Y

IGMP snooping

Y

SSH/SSL support

Y

Multicast features

Multicast support

Yes

Multicast support

Y

Protocols

Routing protocols

BGP

Routing protocols

BGP, BGP4, IP, OSPF

Design

Rack mounting

Yes

Form factor

1U

Product colour

Black

Rack mounting

Y

Stackable

Y

Form factor

1U

Product colour

Grey

Performance

Processor model

ARM Cortex-A72

Physical stacking (units)

10

Built-in processor

Y

Processor model

ARM Cortex-A72

Processor frequency

1800 MHz

Memory type

DDR4-SDRAM

Internal memory

8192 MB

Flash memory

32 MB

Operational conditions

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

15 - 95%

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

15 - 95%

Other features

Latency

1 Gbps: 2.28 µs 10 Gbps: 1.46 µs 25 Gbps: 1.90 µs 50 Gbps: 3.49 µs

Memory and processor

CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration

I/O ports

48 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port

Performance management

Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software

Weight (imperial)

5.16 kg (11.4 lbs)

Dimensions (W x D x H) (imperial)

43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2")

Fan

Switch has two fan tray slots and comes with one fan tray installed. Minimum one fan tray required. Fan trays are field replaceable and hot-swappable. Each fan tray contains two fans.

Logistics data

Harmonized System (HS) code

85176990

Harmonized System (HS) code

85176990

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Total Power over Ethernet (PoE) budget

1440 W

Weight & dimensions

Width

442 mm

Depth

385 mm

Height

44 mm

Weight

5.72 kg
