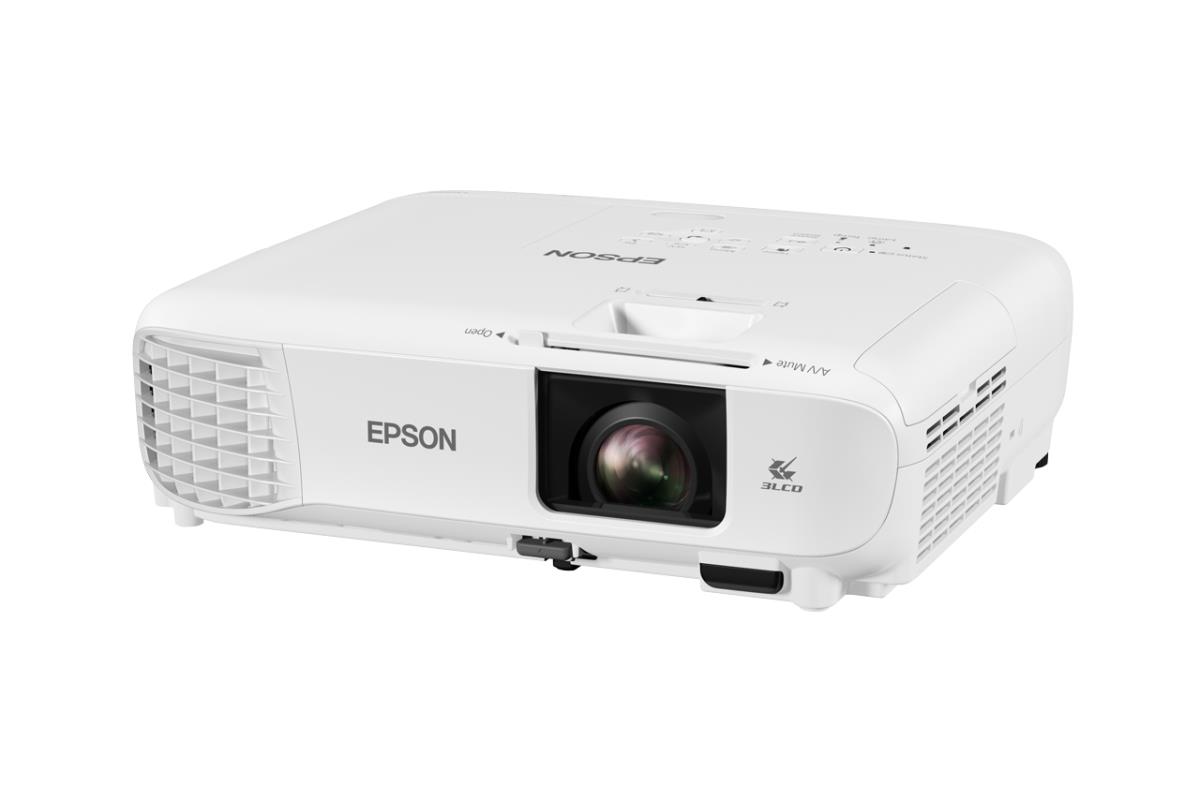

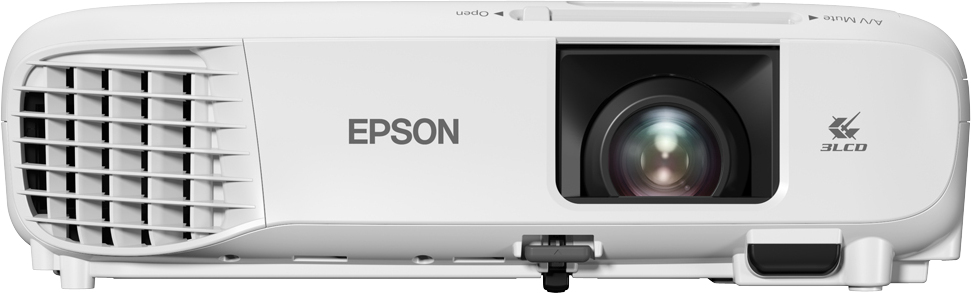

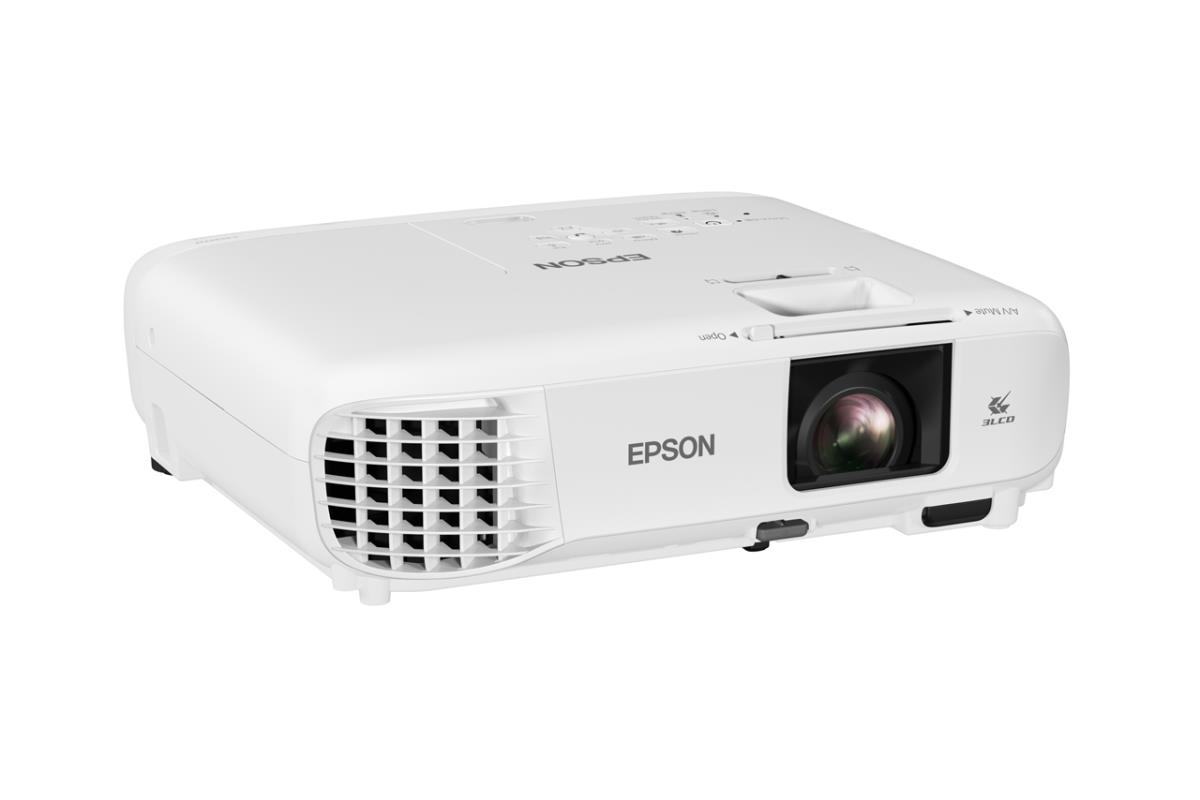

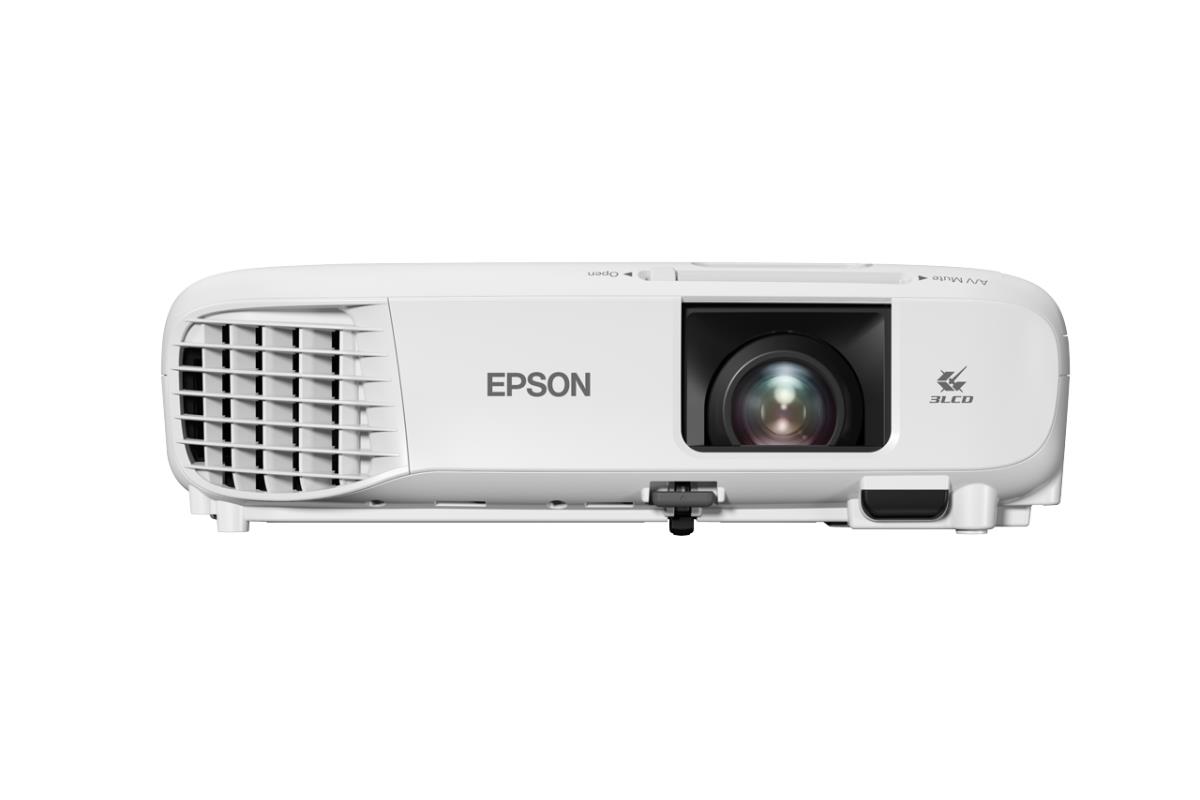

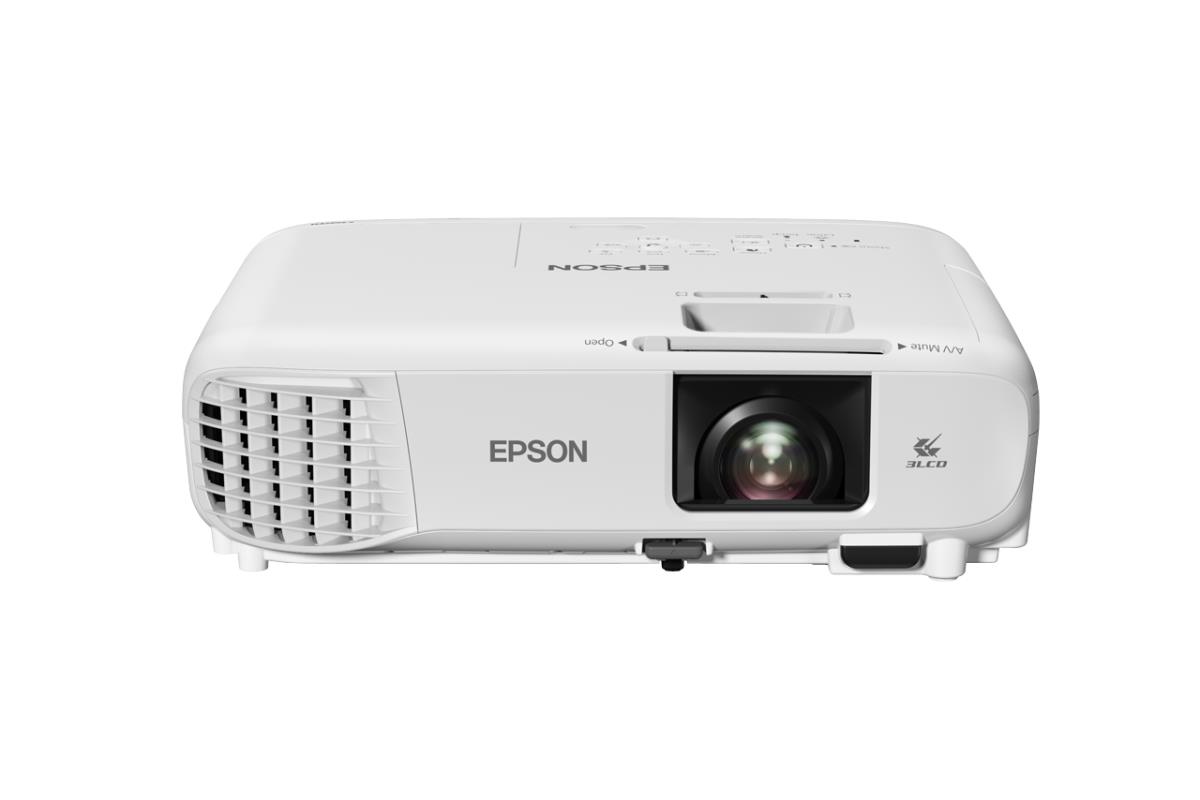

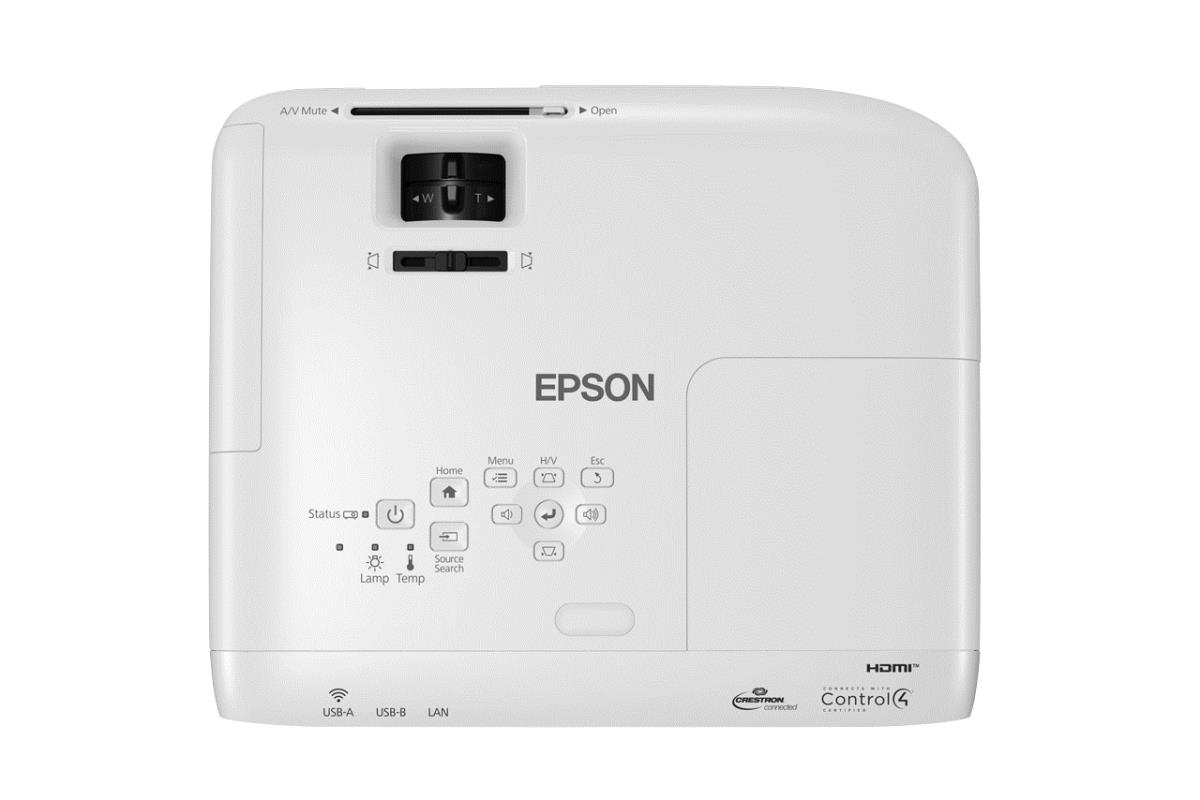

Eb-w49 - Projector - 3LCD - Wxga - 3800lm - Wi-Fi / Hdmi / USB

Base Price:€618,69
Recupel:+ €0,12
BeBat:+ €0,08
Total:€618,89

Prices exclude VAT

Add
Part Number: V11H983040
Inetum ID: CN340
Stock
Warranty: 36 months

Product Details

Video

Colour modes (2D)

Cinema, Dynamic

Full HD

N

3D

N

Video processing

10 bit

Video colour modes

Dynamic, Cinema, Presentation, sRGB, Blackboard

Projector

Contrast ratio (dynamic)

16000:1

Supported aspect ratios

16:10

Screen size compatibility

838.2 - 8128 mm (33 - 320")

Projector brightness

3800 ANSI lumens

Projection technology

3LCD

Projector native resolution

WXGA (1280x800)

Contrast ratio (typical)

16000:1

Native aspect ratio

16:10

Number of colours

1.07 billion colours

Projector brightness (economic mode)

2600 ANSI lumens

Vertical scan range

100 - 120 Hz

Keystone correction, horizontal

-30 - 30°

Keystone correction, vertical

-30 - 30°

Matrix size

1.5 cm (0.59")

Technical details

Power consumption

286 Watt (Normal On-Mode), 180 Watt (Eco On-Mode), 327 Watt (Normal Peak-mode), 225 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby)

Other features

AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjecton set-up by scanning a code

Mobile app support

Yes

USB display function

3 in 1: Image / Mouse / Sound

Logistics data

Pallet gross weight

0 g

Pallet weight (UK)

0 g

Quantity per pack

1 pc(s)

Products per pallet

78 pc(s)

Products per pallet (UK)

78 pc(s)

Other features

Option type

Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01

Interface

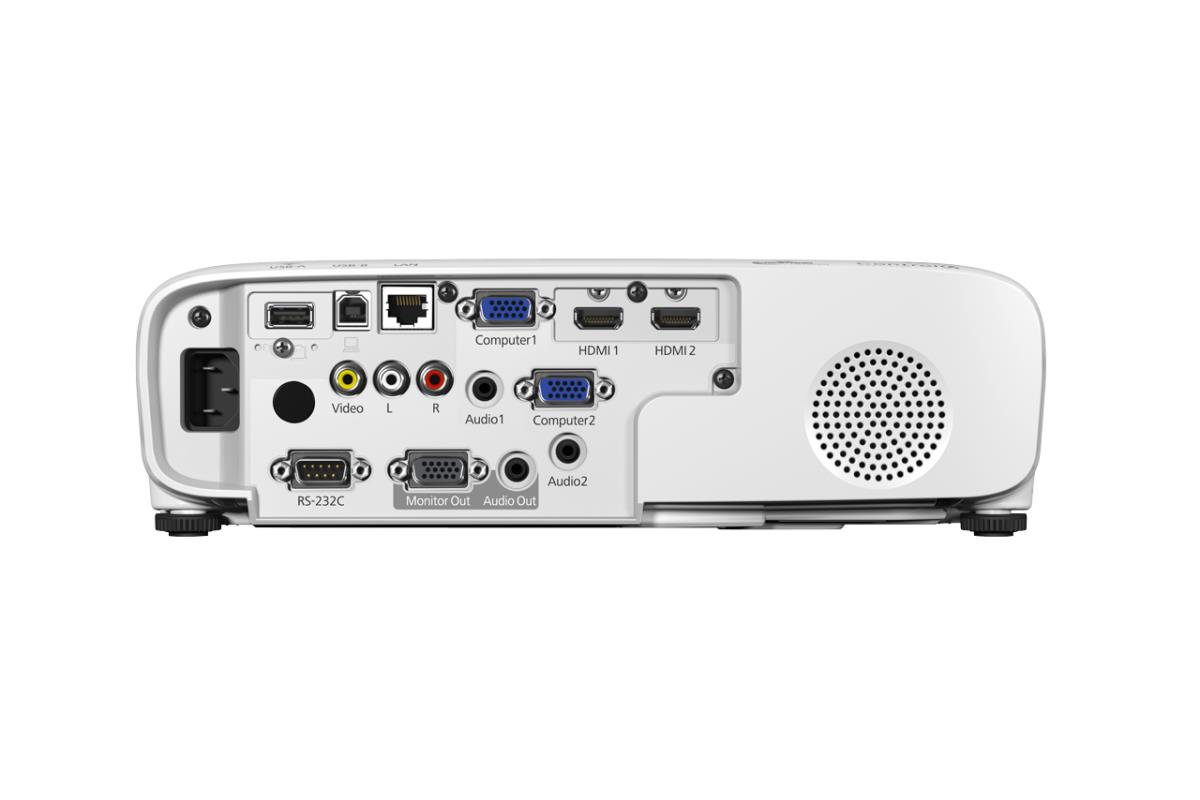

USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in (2x), Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, Wireless LAN IEEE 802.11a/b/g/n/ac (optional)

Control panel

0.59 inch with C2 Fine

Box contents

HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User Manual (CD-ROM), Warranty document

Security features

Kensington lock, Security cable hole, Wireless LAN unit lock

Supported network protocols

PJLink

Light source

Light source type

Lamp

Service life of light source

8000 h

Service life of light source (economic mode)

17000 h

Lamp type

UHE

Lamp power

210 W

Lamps quantity

1 lamp(s)

Lens system

Focus

Manual

Focal length range

16.9 - 20.28 mm

Aperture range (F-F)

1.49 - 1.72

Zoom capability

Y

Zoom type

Manual

Zoom ratio

1.2:1

Throw ratio

1.30 - 1.56:1

Ports & interfaces

HDMI connector type

Full-size

USB 2.0 ports quantity

1

USB 2.0 Type-B ports quantity

1

Serial interface type

RS-232C

PC Audio in

Y

PC Audio out

Y

PC in (D-Sub)

Y

VGA (D-Sub) ports quantity

3

HDMI ports quantity

2

Composite video in

1

DVI port

N

AC (power) in

Y

Network

Smart TV

N

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Storage

Card reader integrated

N

Features

Noise level (economic mode)

28 dB

Noise level (standby)

28 dB

Preset modes

Blackboard, Dynamic, Presentation, Theatre, sRGB

On Screen Display (OSD)

Y

Noise level

37 dB

Country of origin

Philippines

Supplier features

Harmonized System (HS) code

85286200

Multimedia

Built-in speaker(s)

Y

RMS rated power

5 W

Number of built-in speakers

1

Design

Market positioning

Portable

Product type

Standard throw projector

Product colour

White

Placement

Ceiling, Desktop

Cable lock slot

Y

Cable lock slot type

Kensington

Display

Built-in display

N

Power

Power source

AC

Power consumption (typical)

327 W

Power consumption (standby)

0.3 W

Power consumption (economy mode)

225 W

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Software

Software support

via: AMX, Crestron (Network), Control4, Extron

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

302 mm

Depth

249 mm

Height

87 mm

Weight

2.7 kg

Package width

350 mm

Package depth

380 mm

Package height

160 mm

Package weight

4.01 kg

Packaging content

Remote control included

Y

Batteries included

Y

Cables included

AC, HDMI

WLAN adapter included

Y

Bundled software

EasyMP Network Projection, Epson Projektor Management
