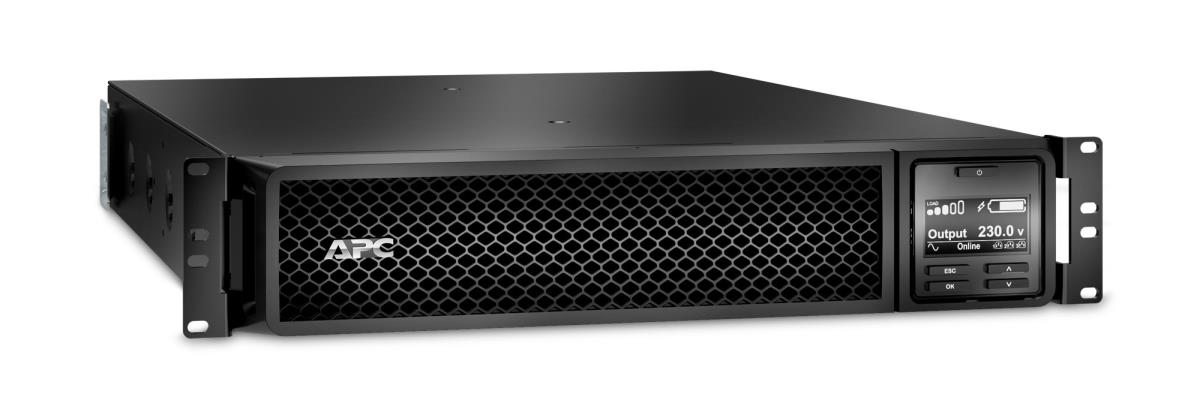

Smart-UPS SRT 2200VA RM 230V Network Card

Base Price:€2.670,38
Recupel:+ €0,04
Total:€2.670,42

Prices exclude VAT

Add
Part Number: SRT2200RMXLI-NC
Inetum ID: BE142
Stock
Warranty: 12 months

Product DetailsOptions

Technical details

Total carbon footprint (kg of CO2e)

3656.79

Compliance certificates

RoHS

Harmonized System (HS) code

85078000

Sustainability certificates

RoHS, ENERGY STAR

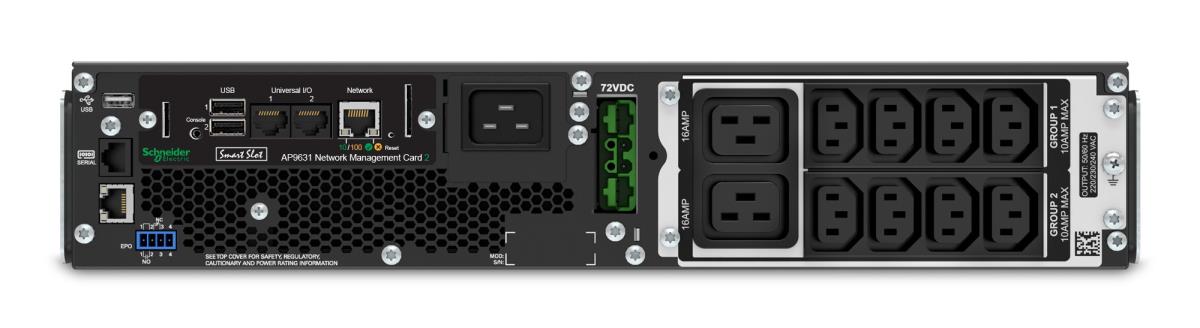

Ports & interfaces

SmartConnect port

No

AC outlet types

C13 coupler, C19 coupler

AC outlets quantity

12 AC outlet(s)

Number of output IEC jumpers

2

USB port

Y

Serial interface

Y

Serial interface type

RJ-45

Ethernet LAN (RJ-45) ports

1

SmartSlot

Y

Packaging content

Management card included

Yes

Features

UPS topology

Double-conversion (Online)

Output power capacity

2.2 kVA

Output power

1980 W

Waveform

Sine

Input operation voltage (min)

160 V

Input operation voltage (max)

275 V

Input frequency

40 - 70 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

340 J

Crest factor

3:1

Emergency Power Off (EPO)

Y

Output voltage Total Harmonic Distortion (THD)

2%

Noise level

55 dB

Audible alarm(s)

Y

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

367 VAh

Number of batteries supported

1

Battery life (max)

5 year(s)

Battery recharge time

3 h

Design

Form factor

Rackmount

Rack capacity

2U

Cable length

2.44 m

Product colour

Black

Display type

LCD

LED indicators

Y

International Protection (IP) code

IP20

Certification

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Weight & dimensions

Width

432 mm

Depth

584 mm

Height

85 mm

Weight

25 kg

Package width

599 mm

Package depth

810 mm

Package height

246 mm

Package weight

34 kg

Other features

Output voltage

230 V
