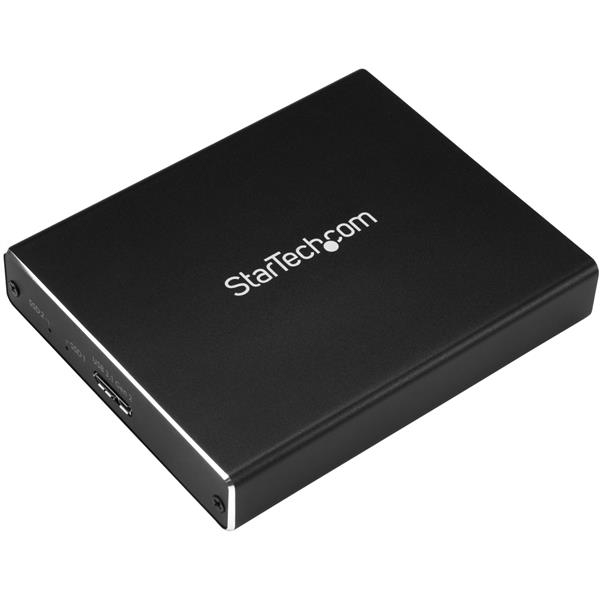

Dual Drive Enclosure M.2 SATA - Raid USB 3.1 Gen 2 USB C / USB A

Storage

Number of storage drives supported

2

Storage drive size

M.2

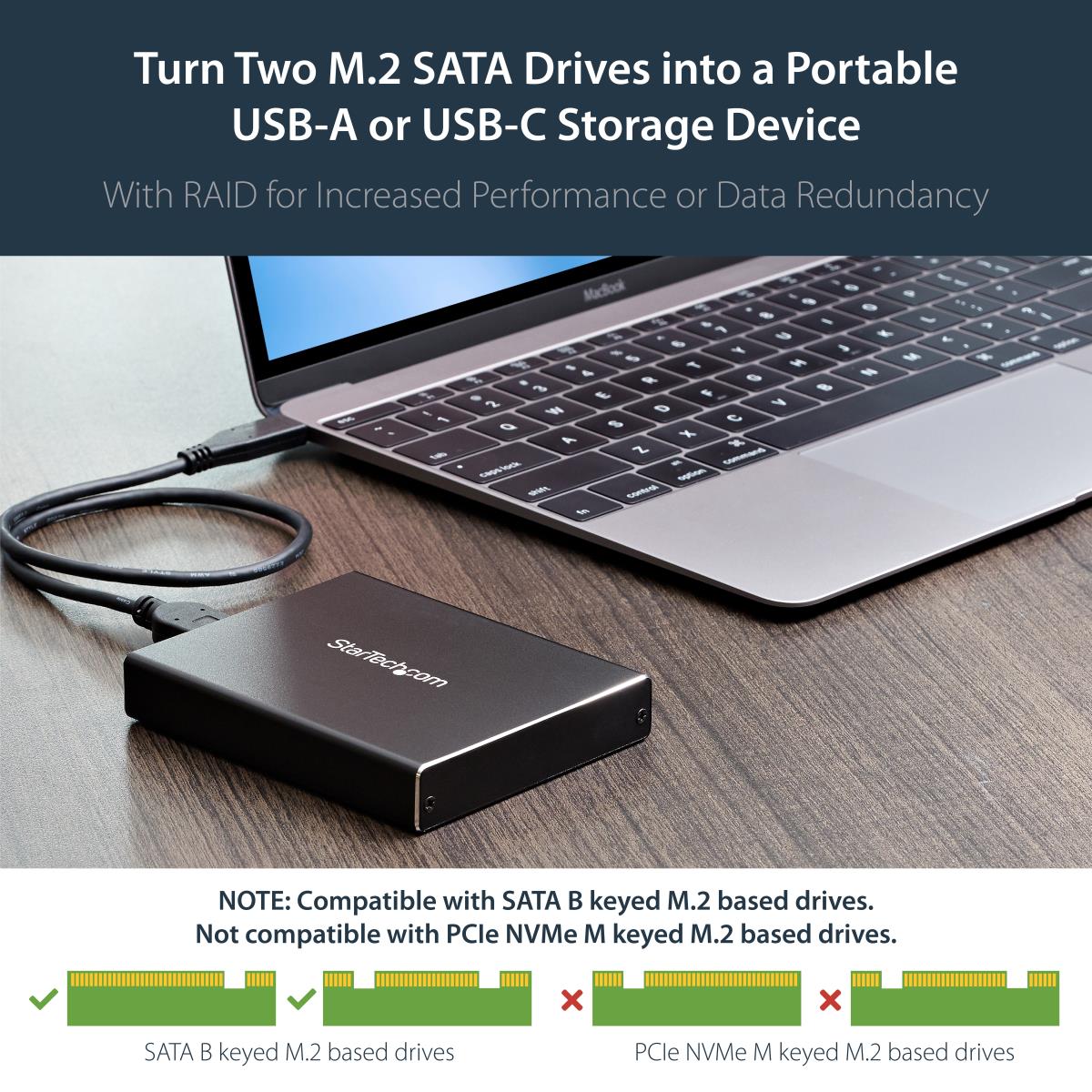

Supported storage drive interfaces

M.2, Serial ATA, Serial ATA II, Serial ATA III

Supported storage drive lengths

80 mm

RAID levels

0,1,BIG,JBOD

Maximum storage capacity

2 TB

Ports & interfaces

USB connectivity

Y

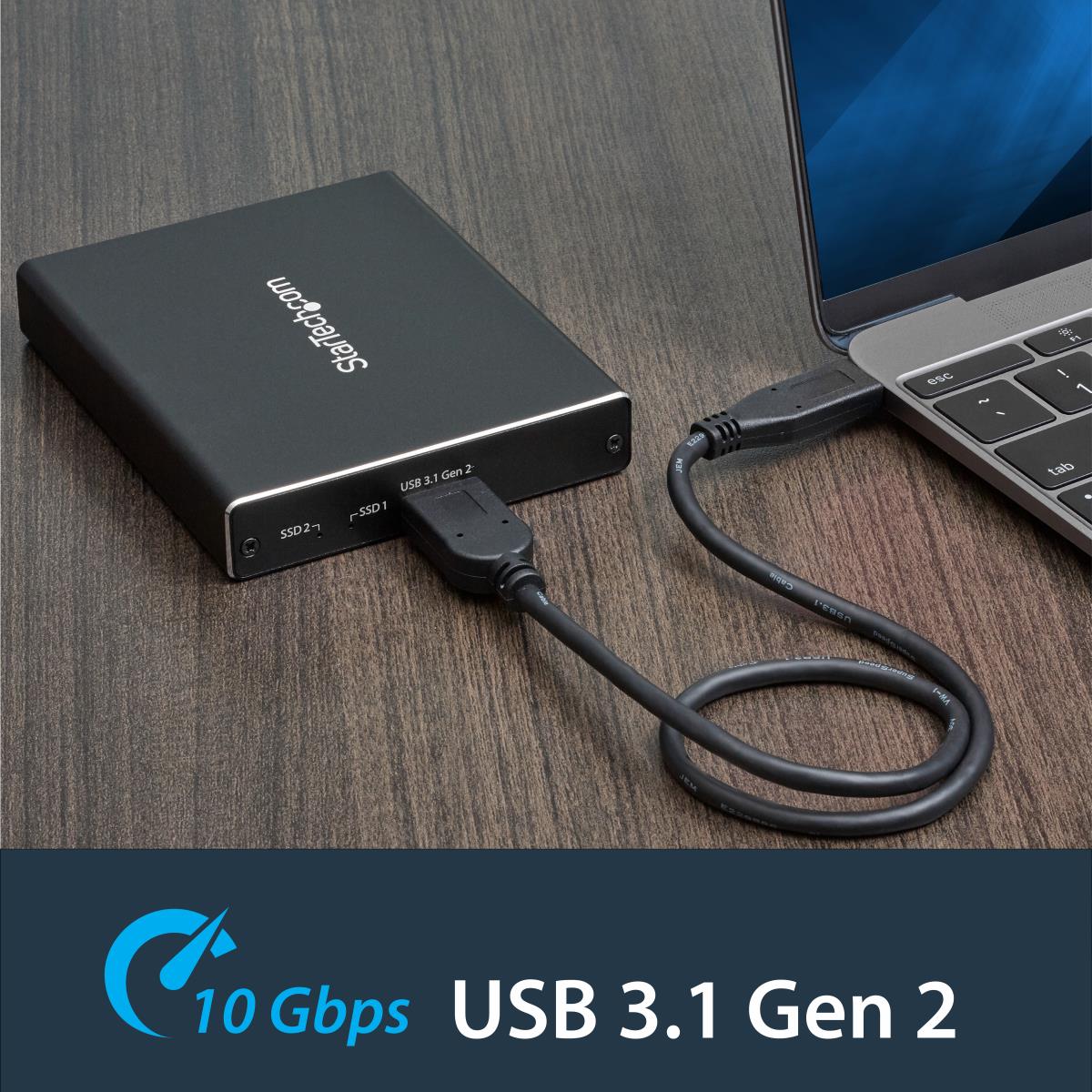

USB version

3.2 Gen 2 (3.1 Gen 2)

USB connector type

Micro-USB B

USB connector gender

Female

USB ports quantity

1

Integrated USB cable

N

Design

Product type

SSD enclosure

Product colour

Black

Material

Aluminium

LED indicators

Y

Certification

CE, FCC

Performance

Data transfer rate

10 Gbit/s

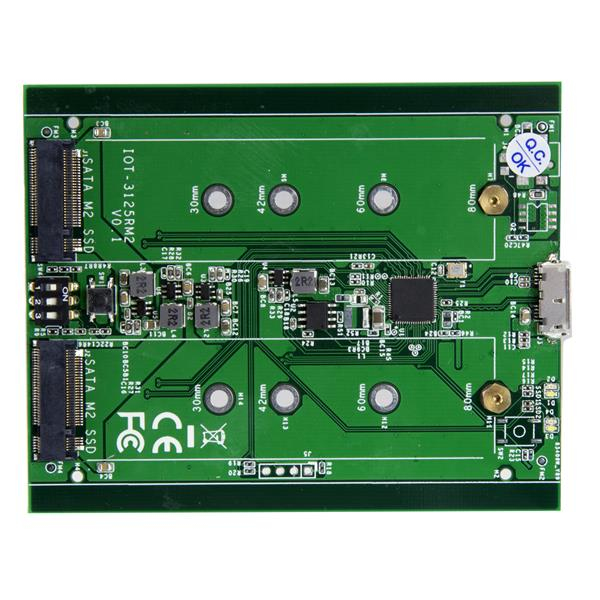

Chipset

ASMedia - ASM1352R

UASP support

Y

Mean time between failures (MTBF)

35000 h

Port multiplier

Y

Power

Power source type

USB

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

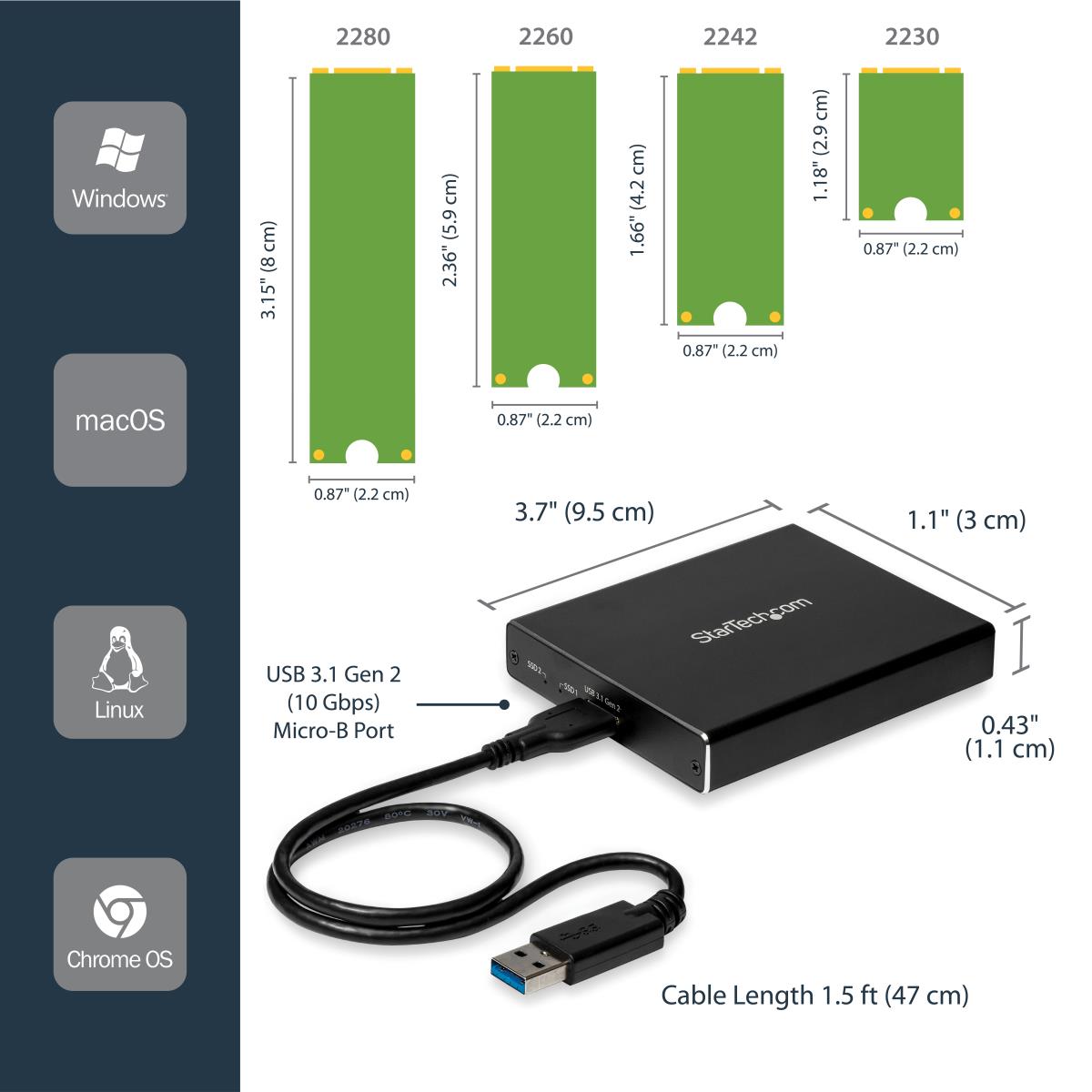

Weight & dimensions

Width

80 mm

Depth

100 mm

Height

15 mm

Weight

96 g

Package width

131 mm

Package depth

165 mm

Package height

32 mm

Package weight

195 g

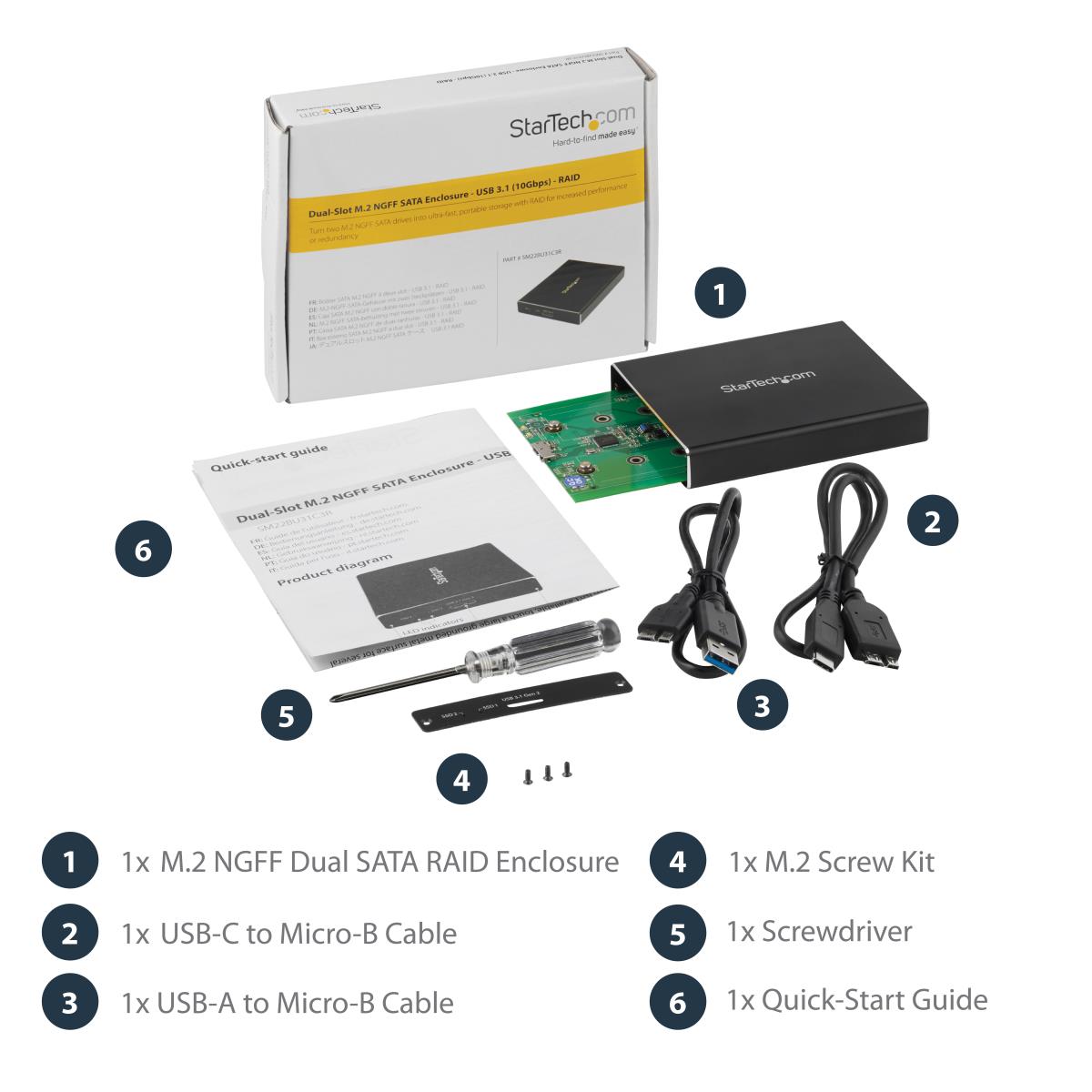

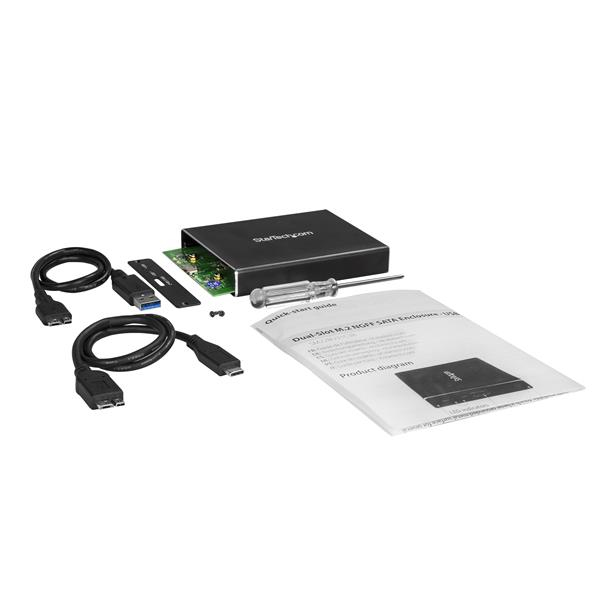

Packaging content

Cables included

USB

Screws included

Y

Screwdriver included

Y

Manual

Y

Technical details

Sustainability certificates

RoHS
