Product Details
Features
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e,Cat6
Maximum transfer distance
70 m
Maximum refresh rate
60 Hz
Audio system
Multichannel
Audio output channels
7.1 channels
LED indicators
Y
Supported video modes
720p,1080p,2160p
Remote control type
IrDA
Rack mounting
Y
Plug and Play
Y
Daisy chain
N
Rubber feet
Y
Product colour
Black
HDBaseT certified
Y
Certification
CE, FCC, REACH, TAA
Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1
VGA (D-Sub) input ports
1
HDMI in
2
Number of HDMI outputs
2
DisplayPorts in
1
3.5 mm (1/8-inch) in
Y
Remote (IR) input
1
Remote (IR) output
1
DC-in jack
Y
Power
AC input voltage
100 - 240 V
Operating voltage
12 V
Input current
0.6 A
Output current
1.5 A
Power consumption (typical)
18 W
External power adapter
Y
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
160 mm
Depth
100 mm
Height
40 mm
Weight
918 g
Packaging data
Package width
205 mm
Package depth
298 mm
Package height
62 mm
Package weight
1.68 kg

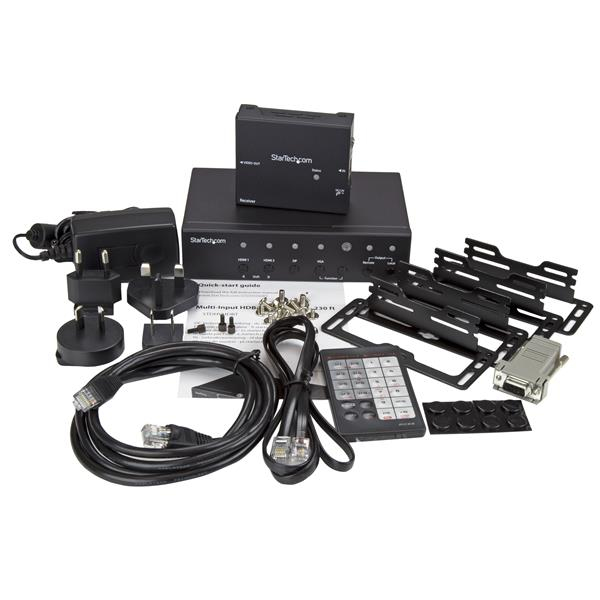

Packaging content
AC adapter included
Y
Cables included
LAN (RJ-45), Phone (RJ-11)
Included power plug types
ANZ,EU,NA,UK
Quick start guide
Y
Remote control included
Y
Mounting brackets included
Y
Mounting kit
Y
Technical details
Audio support
Y
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
322 mm
Master (outer) case length
406 mm
Master (outer) case height
262 mm
Products per master (outer) case
6 pc(s)
