Product Details
Ports & interfaces
Host interface
USB 2.0
Hub interfaces
Serial
USB 2.0 ports quantity
2
Ports quantity
8
RS-232 ports
8
Features
Product colour
Black
Housing material
Steel
Surge protection
Y
LED indicators
Power
Certification
CE, FCC, TAA, RoHS, REACH
Power
Power source type
AC
Power consumption (typical)
36 W
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power plug type
Type M
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Weight & dimensions
Width
128 mm
Depth
219 mm
Height
25 mm
Weight
688 g
Packaging data
Package width
190 mm
Package depth
290 mm
Package height
67 mm
Package weight
1.6 kg

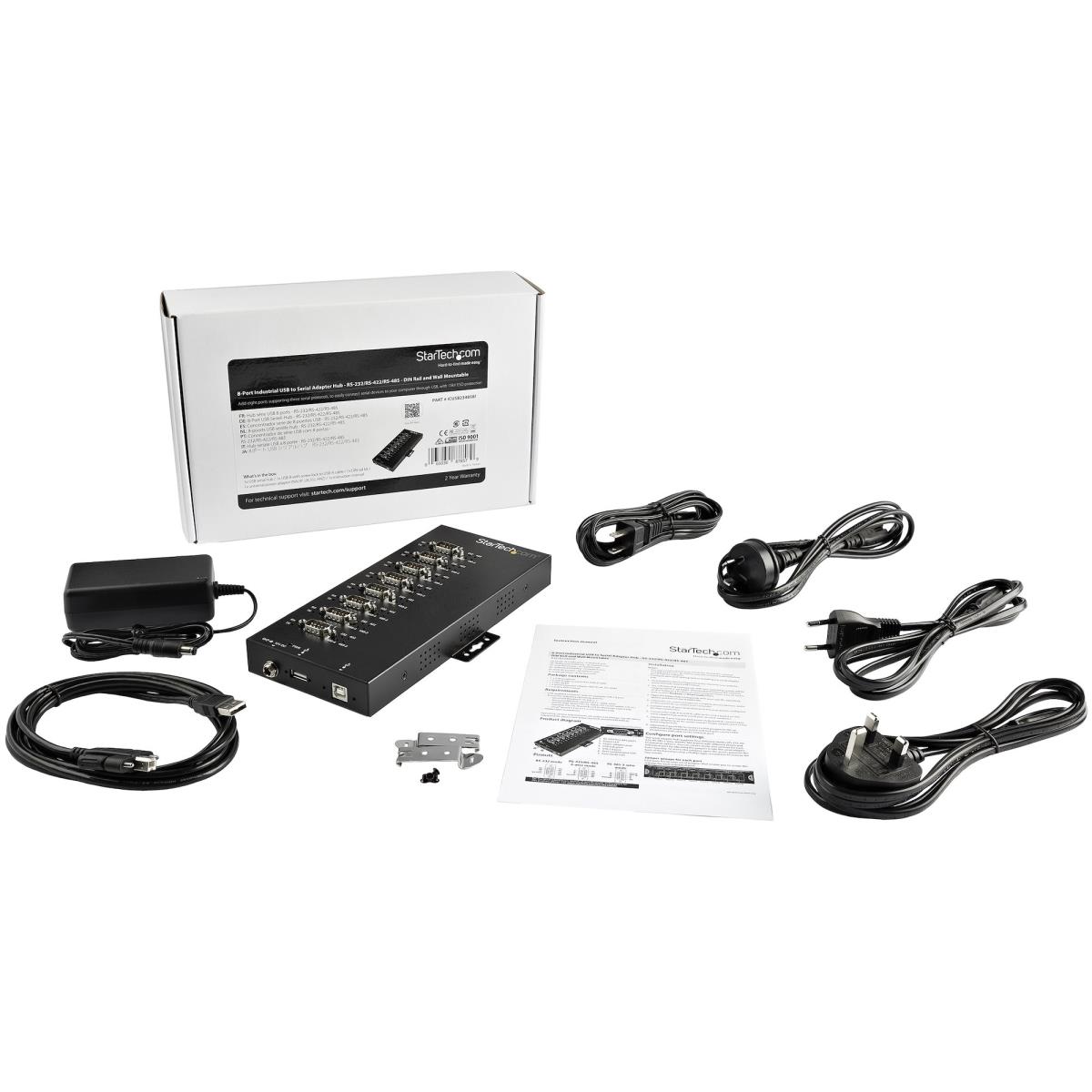

Packaging content
AC adapter included
Y
Included power plug types
ANZ,EU,UK,US
Cables included
USB
DIN rail kit included
Y
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Performance
Data bits
7,8
Stop bits
1,2
Parity bit
Even, Mark, N, Odd, Space
Baud rate
921.6 Kbit/s
Logistics data
Master (outer) case width
410 mm
Master (outer) case length
420 mm
Master (outer) case height
275 mm
Products per master (outer) case
14 pc(s)
Other features
Chipset
FTDI - FT4232H, Genesys Logic - GL825
