Product Details
Ports & interfaces
Host interface
USB 2.0 Type-B
Hub interfaces
Serial
Ports quantity
2
RS-232 ports
2
Features
Product colour
Black
Housing material
Steel
LED indicators
Activity
Certification
CE, FCC, TAA, REACH
System requirements
Windows operating systems supported
Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Other operating systems supported
Windows XP Embedded
Compatible operating systems
Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x
Weight & dimensions
Width
66 mm
Depth
104 mm
Height
24 mm
Weight
162 g
Packaging data
Quantity per pack
1 pc(s)
Package width
145 mm
Package depth
214 mm
Package height
41 mm
Package weight
400 g

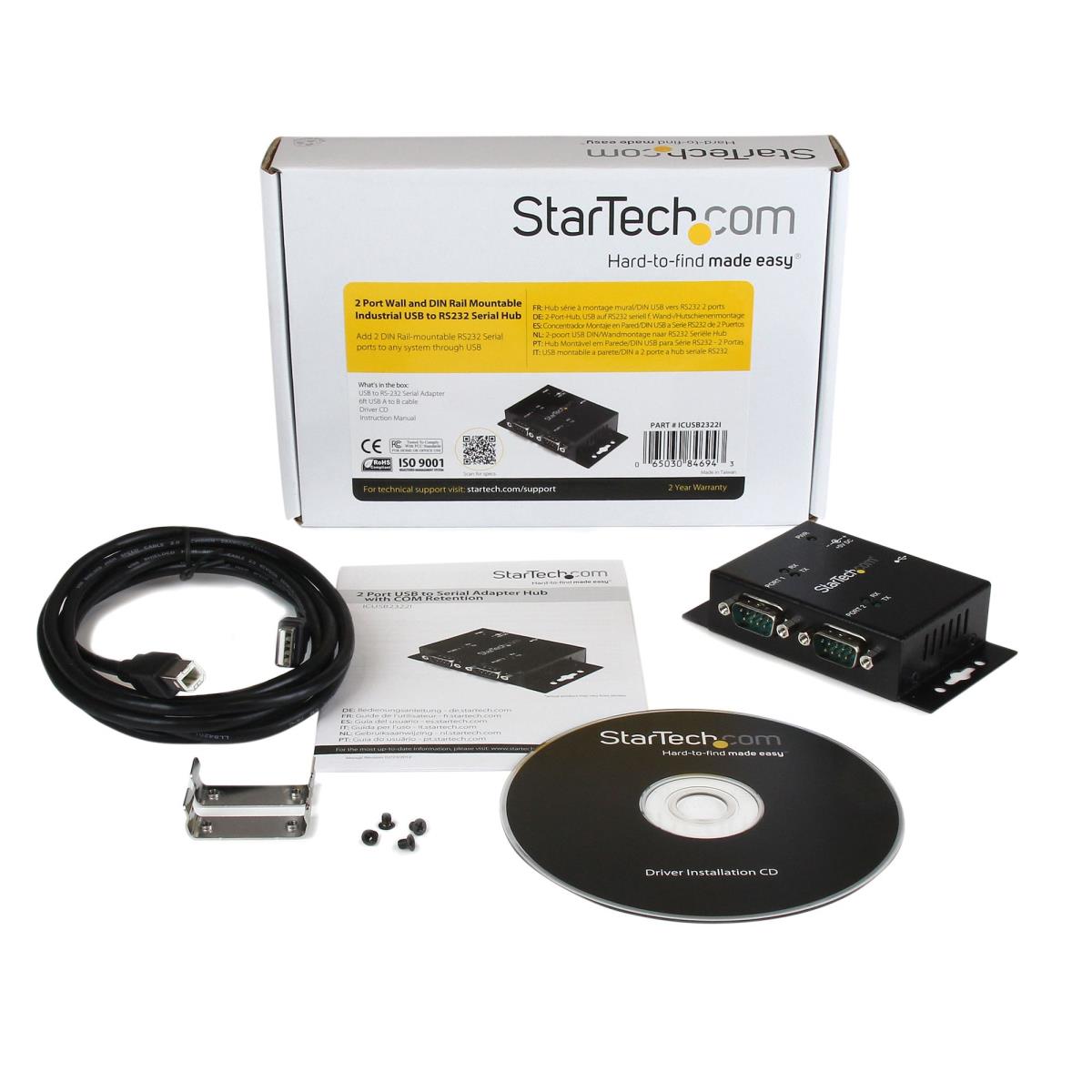

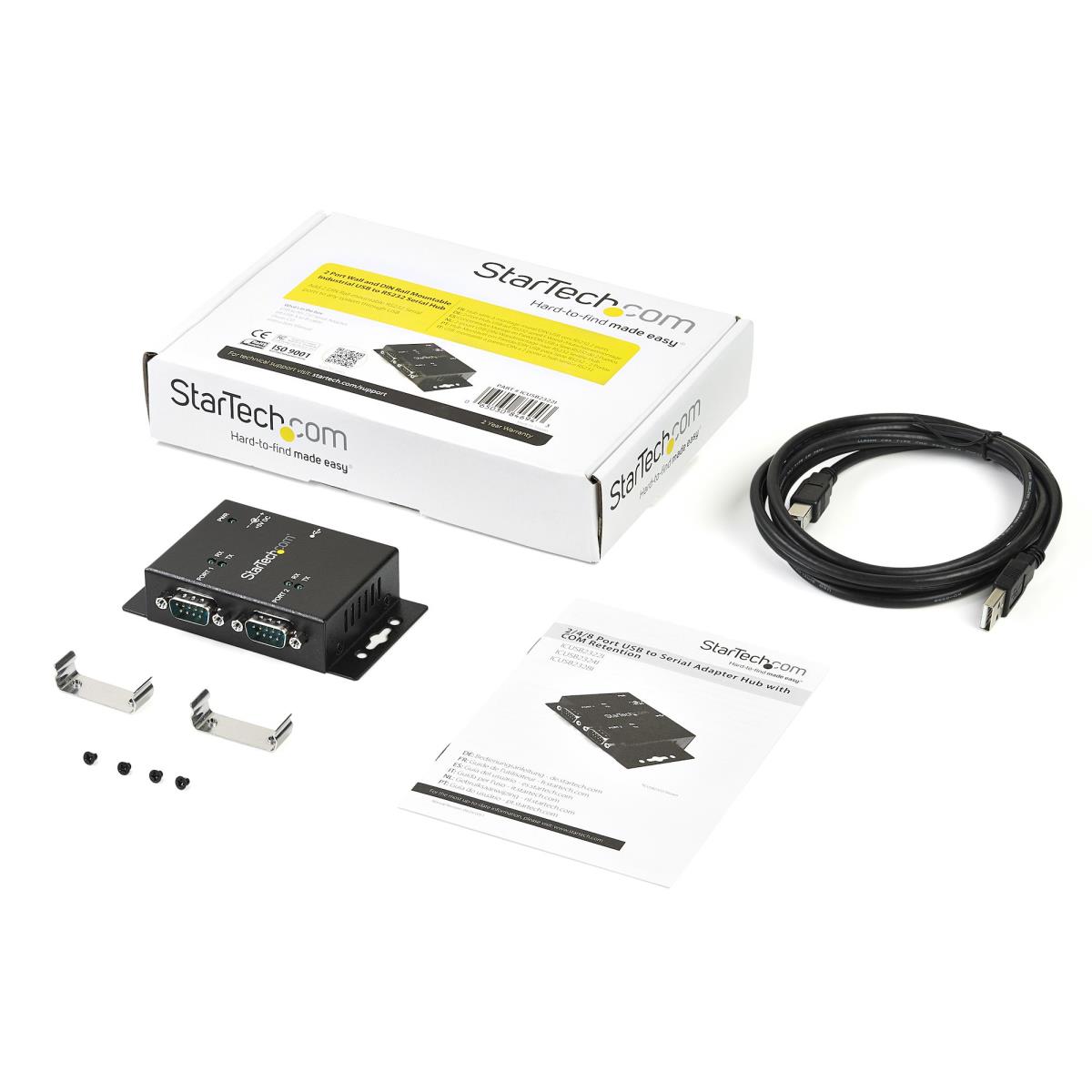

Packaging content
Cables included
USB
Manual
Y
DIN rail kit included
Y
Drivers included
Y
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Performance
Data bits
7,8
Stop bits
1,2
Parity bit
Even, Mark, N, Odd, Space
FIFO (First In, First Out)
256 B
Baud rate
921.6 Kbit/s
Technical details
Sustainability certificates
RoHS
Other features
Chipset
FTDI - FT232RL
