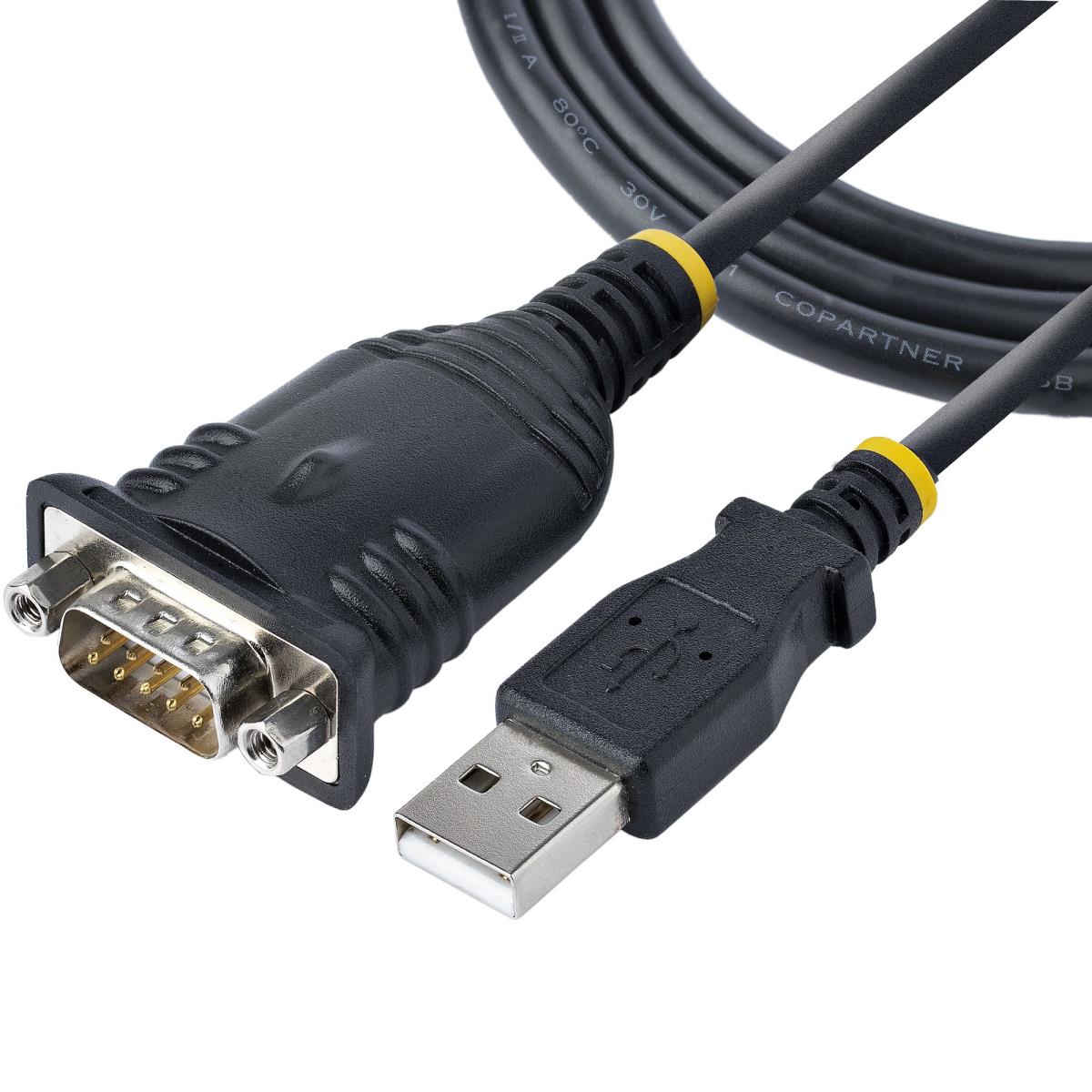

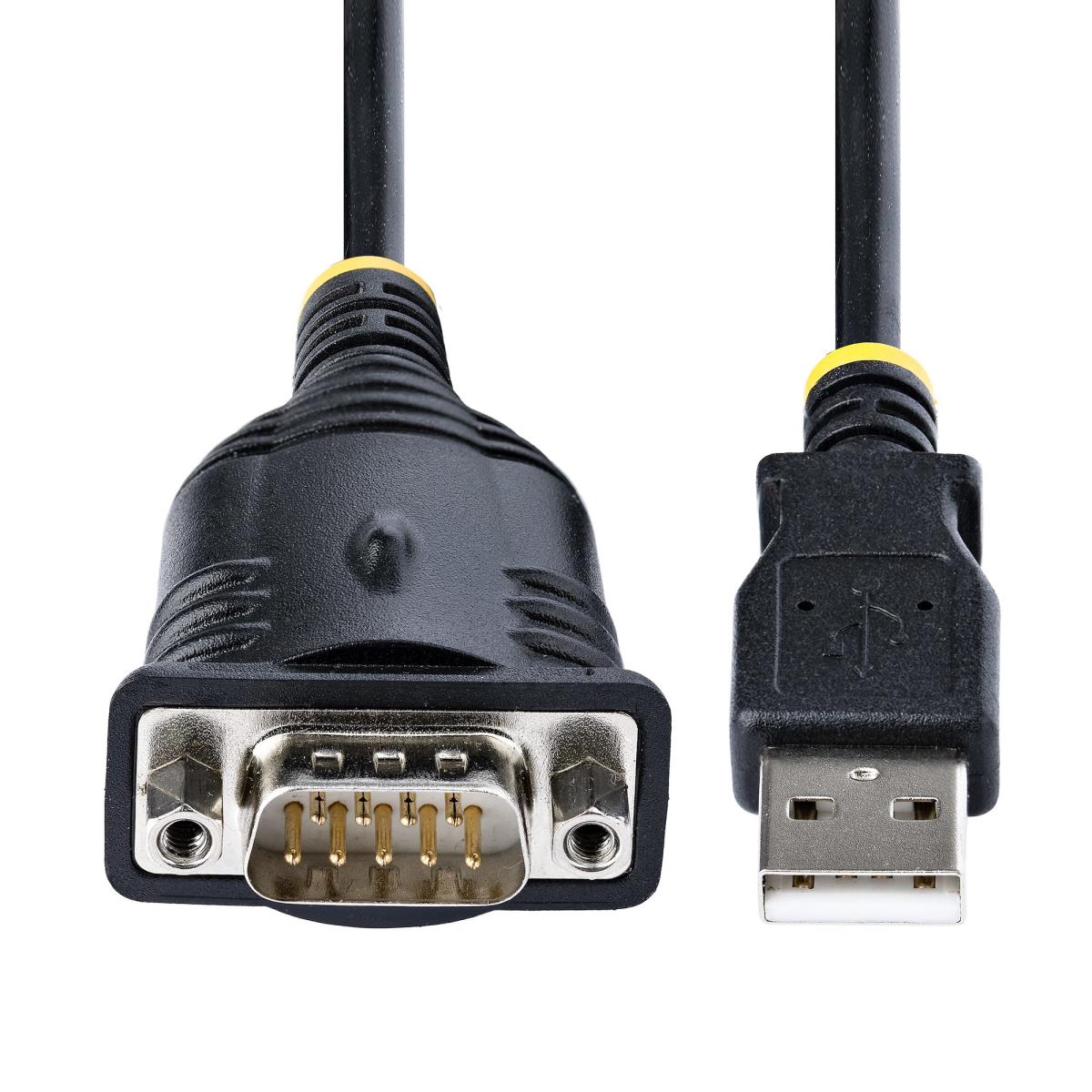

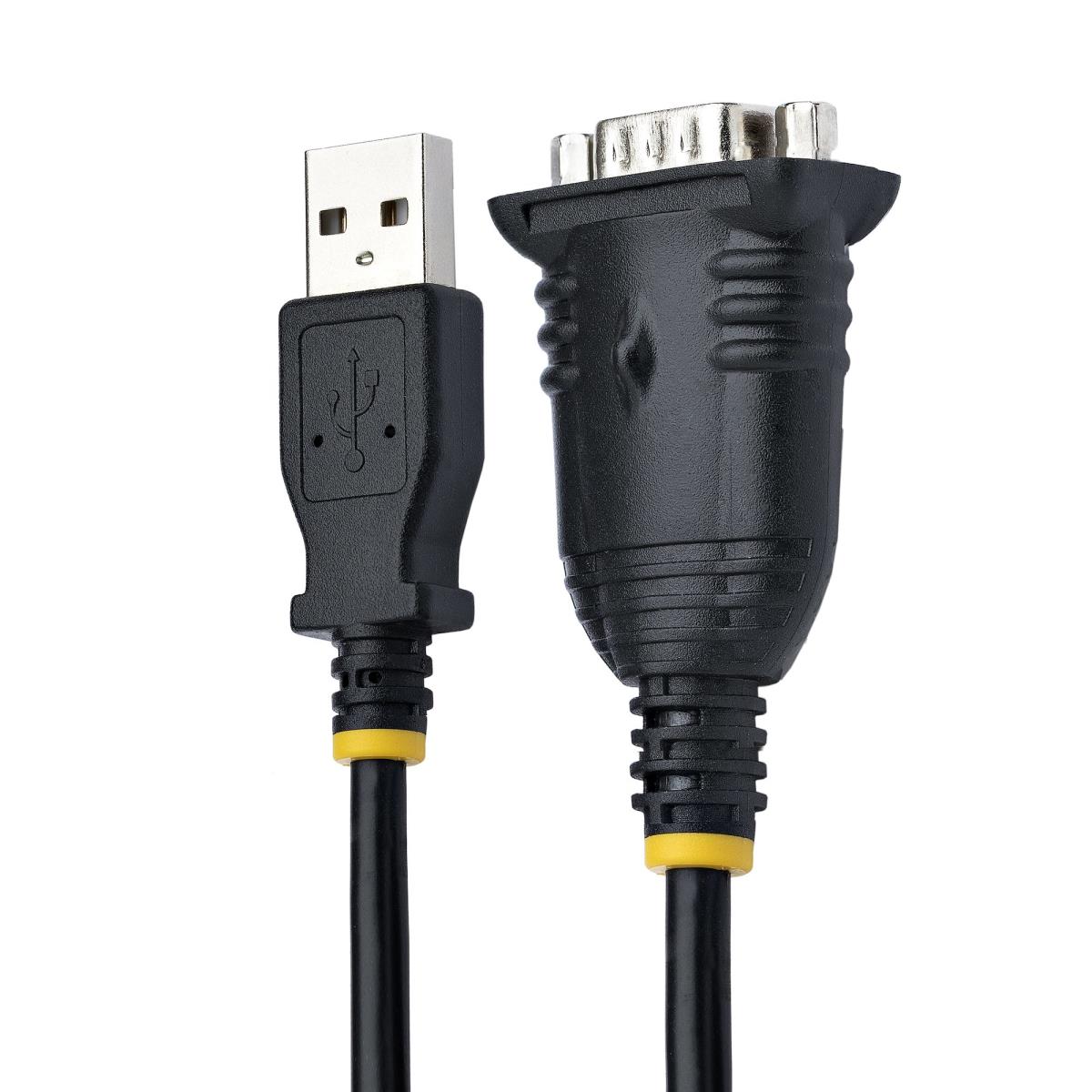

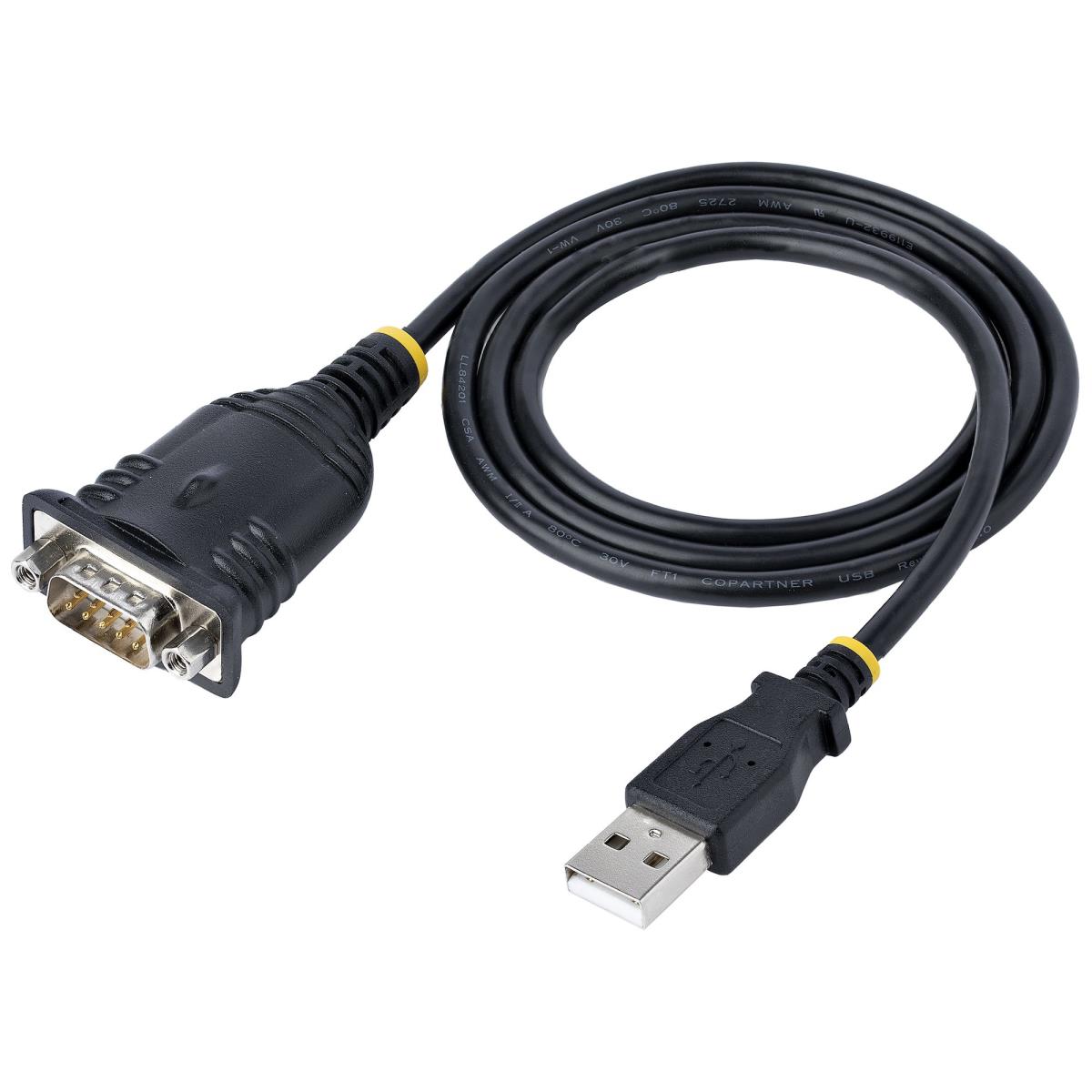

USB To Serial Cable/rs232 Adapter 1m

Base Price:€19,14
Recupel:+ €0,06
Total:€19,20

Prices exclude VAT

Add
Part Number: 1P3FP-USB-SERIAL
Inetum ID: EK120
Stock
Warranty: 36 months

Product Details

Technical details

Compliance certificates

CE, RoHS

Ports & interfaces

Connector 1

DB-9

Connector 2

USB Type-A

Connector 2 gender

Male

Connector 1 gender

Male

Connector 2 form factor

Straight

Connector 1 form factor

Straight

Cable length

0.91 m

USB version

2.0

Performance

Product colour

Black

Chipset

Prolific - PL2303RA

Data bits

5,6,7,8

Stop bits

1,1.5,2

Flow Control type

DTR/DSR, N, RTS/CTS, XON/XOFF

Baud rate

921.6 Kbit/s

Parity bit

Even, Mark, N, Odd, Space

FIFO (First In, First Out)

512 B

Compatible operating systems

Windows 7, 8.1, 10, 11 Windows Server 2016, 2019 macOS 10.11 to 10.15, 11.0, 12.0 Linux 4.15.x LTS Versions Only Chrome OS

Operational conditions

Operating temperature (T-T)

0 - 80 °C

Storage temperature (T-T)

-20 - 100 °C

Relative humidity

20 - 80%

Sustainability

Sustainability certificates

CE, RoHS

Weight & dimensions

Width

45 mm

Depth

34 mm

Height

16 mm

Weight

39.2 g

Packaging data

Package width

170 mm

Package depth

142 mm

Package height

30 mm

Package weight

102.2 g

Packaging content

Manual

Y

Logistics data

Products per master (outer) case

100 pc(s)

Master (outer) case width

570 mm

Master (outer) case length

355 mm

Master (outer) case height

290 mm
