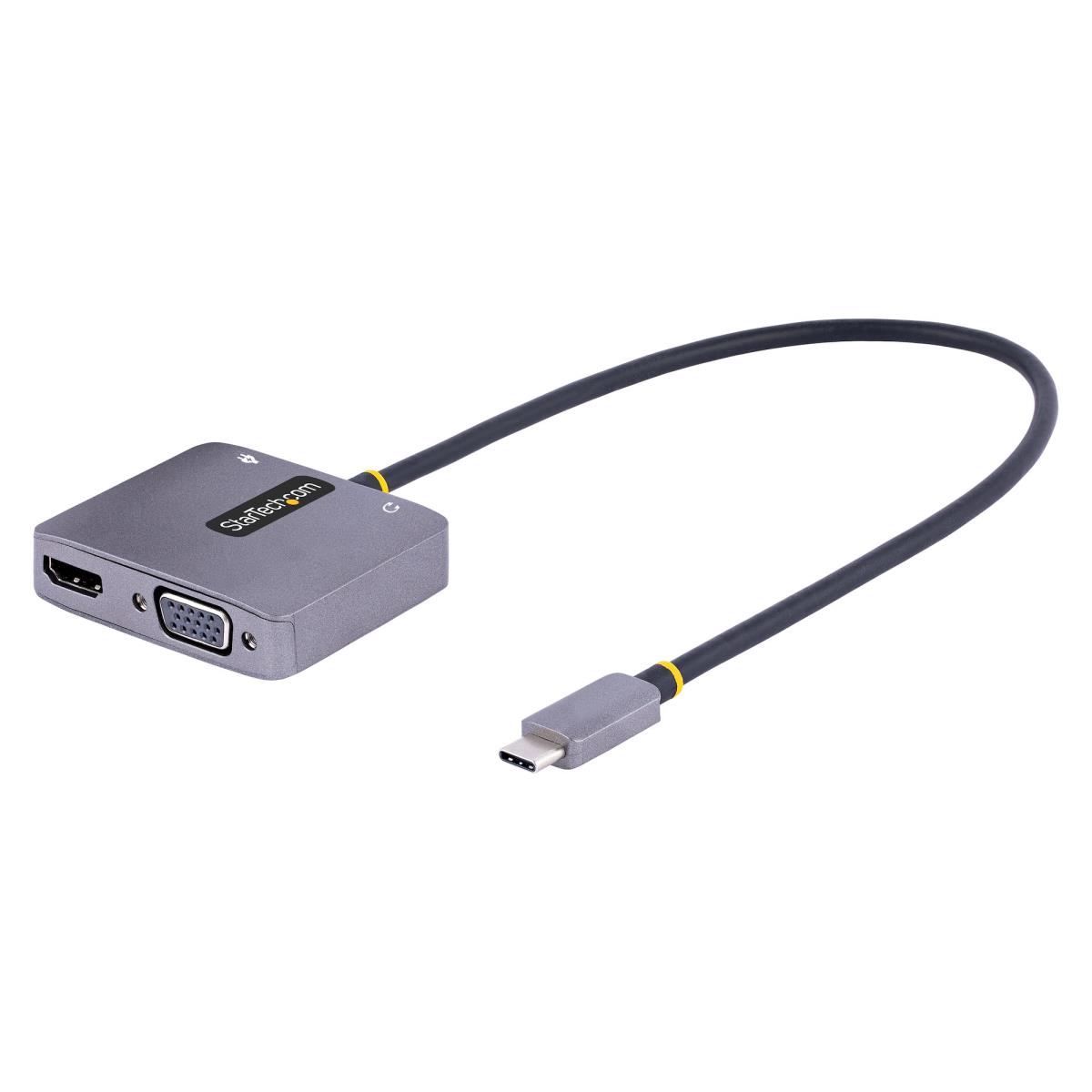

Product Details
Performance

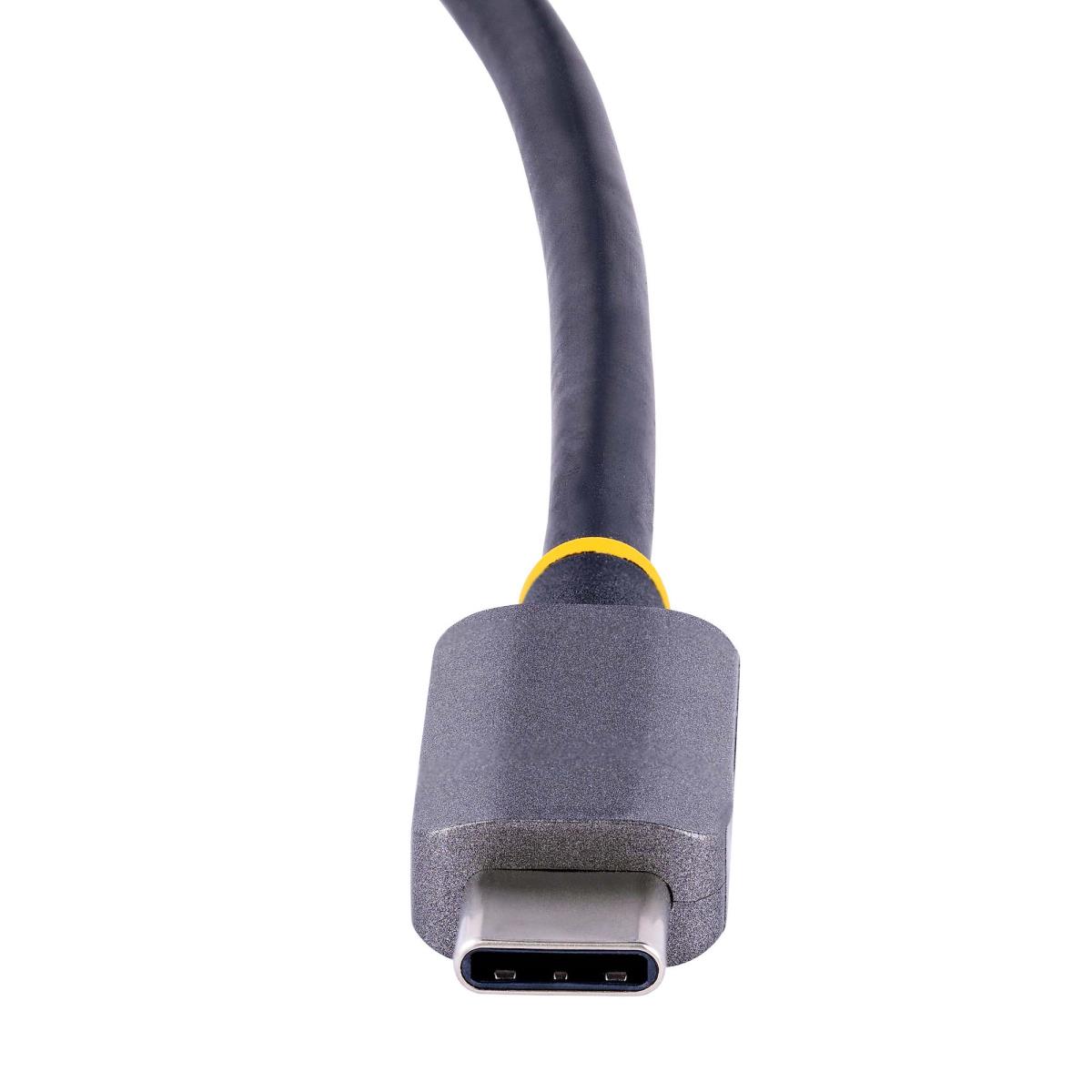

USB connector type
USB Type-C
USB connector gender
Male
USB connector form factor
Straight

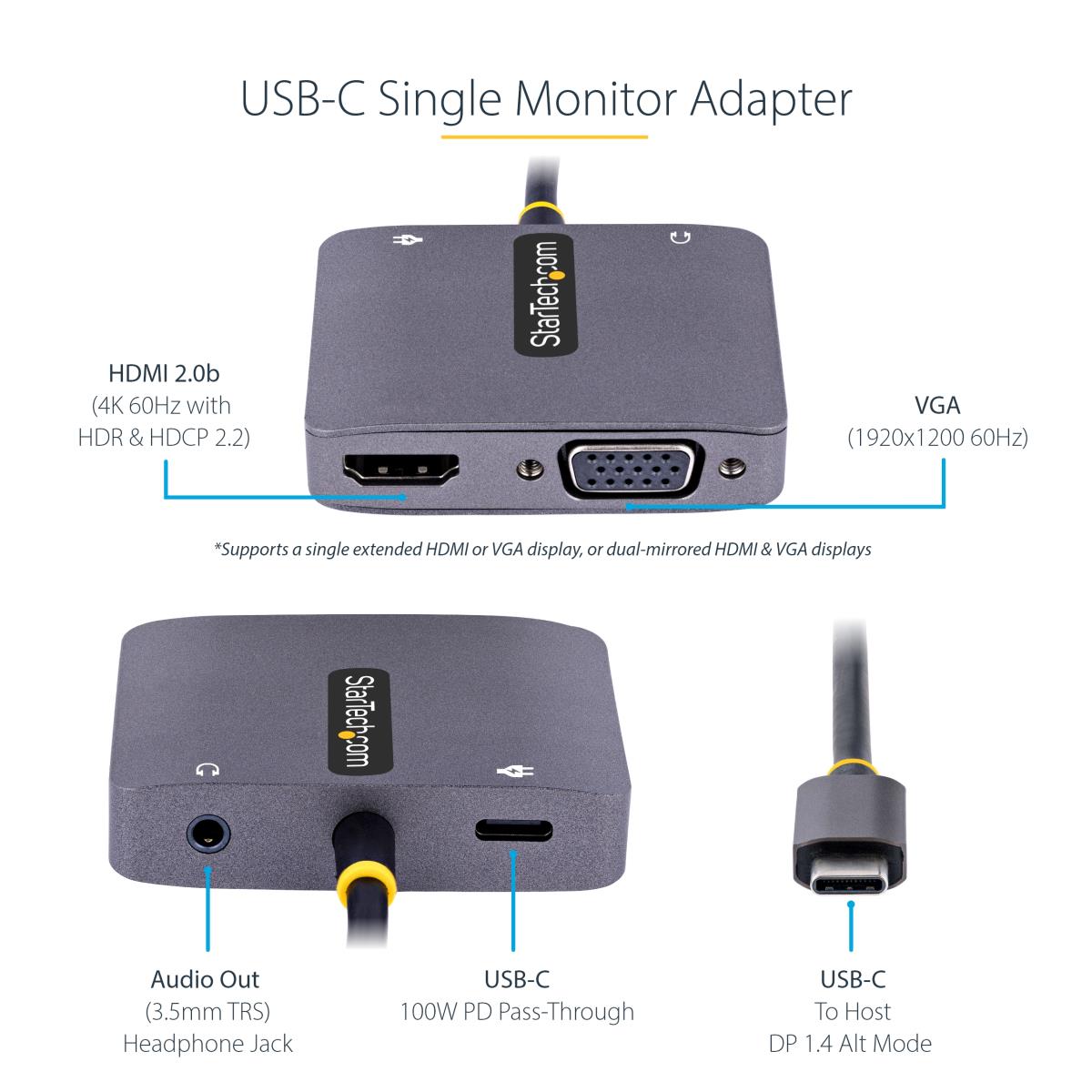

DVI output
N
HDMI output
Y
DisplayPort output
N
Number of displays supported
2

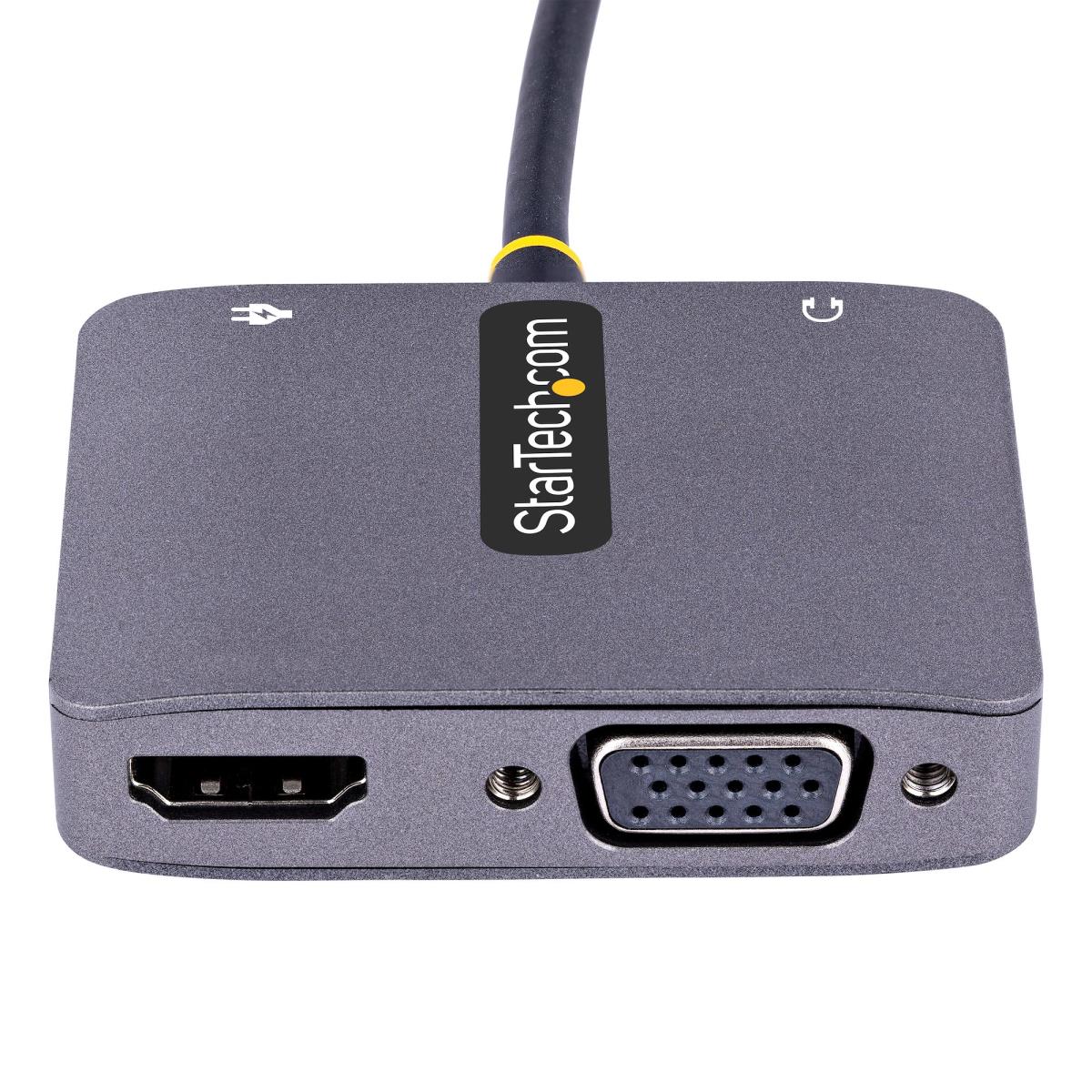

HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
Maximum transfer distance
30 m
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
VGA (D-Sub) output
Y
HDMI version
2.0b
Maximum resolution
3840 x 2160 pixels
Refresh rate at maximum resolution
60 Hz
Maximum resolution (HDMI)
3840 x 2160 pixels
Maximum analog resolution
1920 x 1200 pixels
Audio output channels
7.1 channels
Design
Product colour
Grey
Integrated USB cable
Y
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 85%

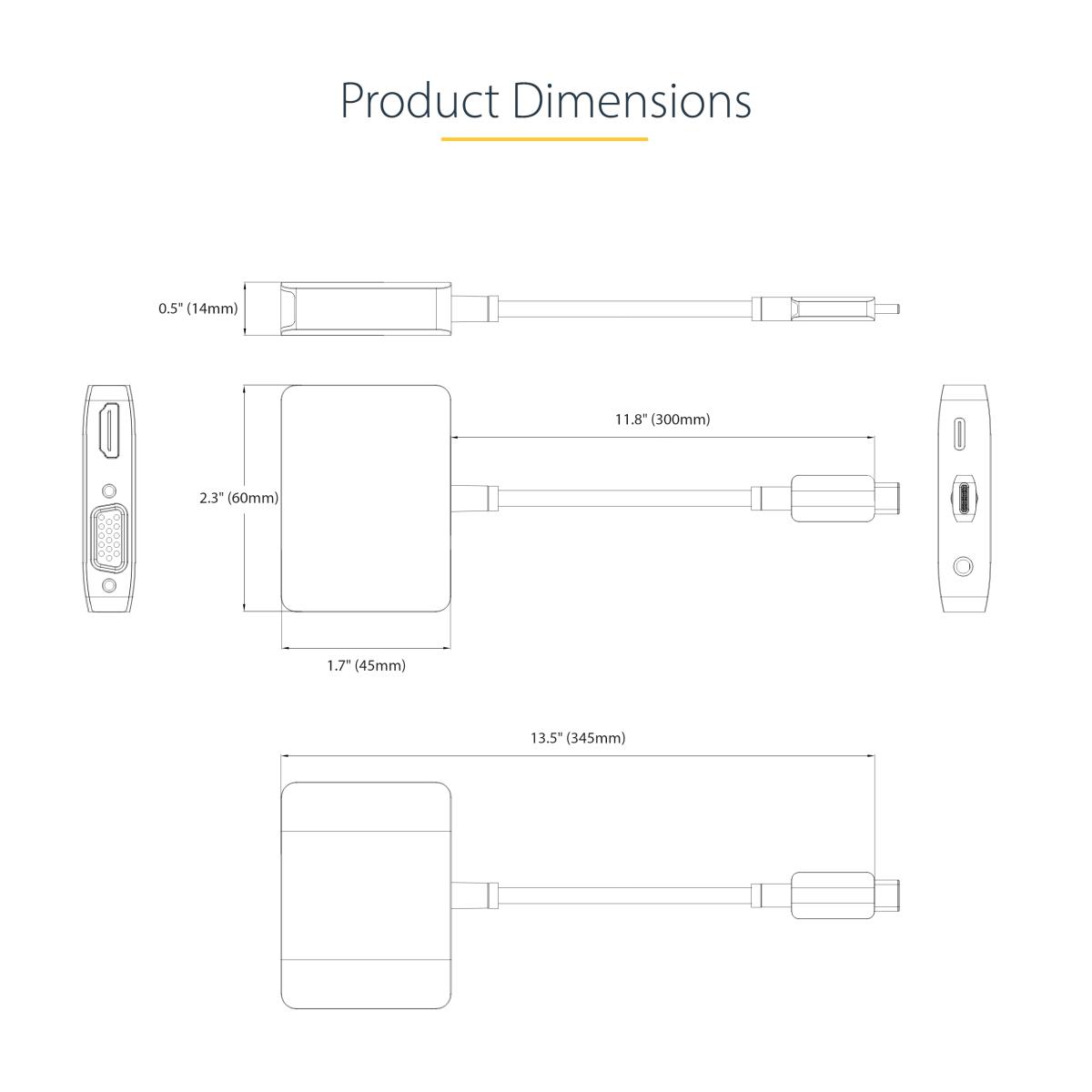

Weight & dimensions
Width
60 mm
Depth
45 mm
Height
14 mm
Weight
41 g
Package width
170 mm
Package depth
142 mm
Package height
30 mm
Package weight
245 g
Technical details
Sustainability certificates
CE, RoHS
Logistics data
Products per master (outer) case
30 pc(s)
Master (outer) case width
450 mm
Master (outer) case length
320 mm
Master (outer) case height
200 mm
